£199.81
excl. VAT
£239.77 incl. VAT
£239.77
incl. VAT
£199.81 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September

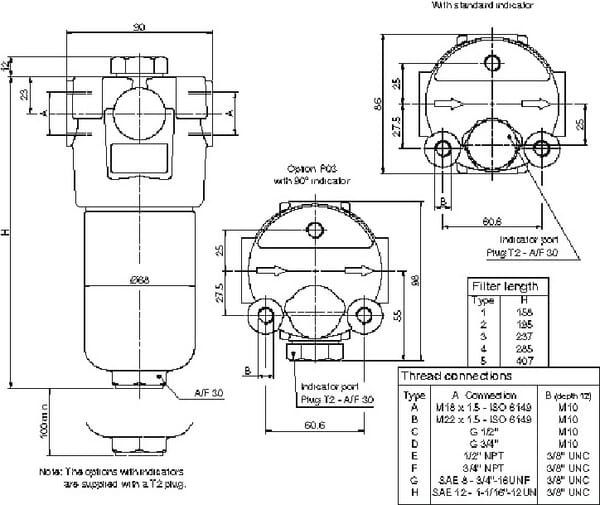

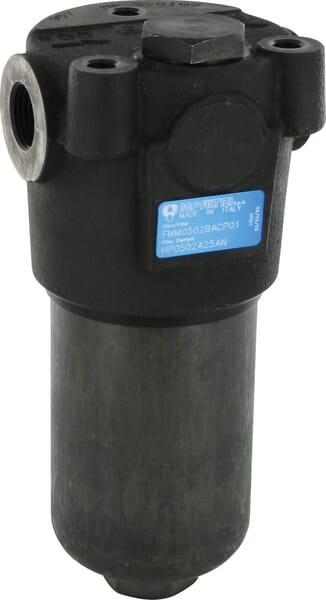

Product details

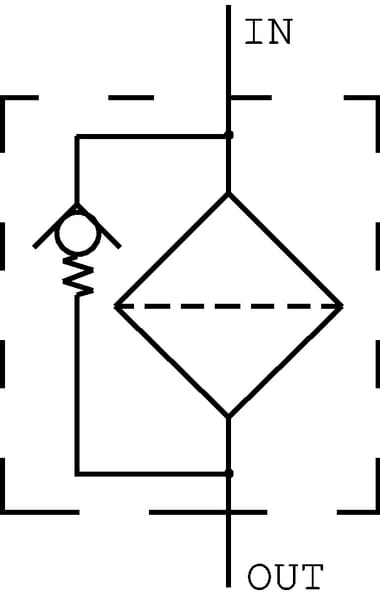

| Bypass | Yes |
|---|---|
| Filter finess | 25 µm |
| Filtration level | Absolute |
| Filtration material | Glass fibre |
| Height | 195 mm |
| Housing material | Steel |
| Includes | Filter comes standard without indicator plug |
| Inlet port thread diameter | 1/2 Inch |
| Length | 195 mm |
| Long description | The FMM series consists of versatile high-pressure filters that protect sensitive components in hydraulic high-pressure systems up to 450 bar. |
| Max flow rate | 121 l/min |
| Max working pressure | 450 BAR |
| Max working temperature | 110 °C |
| Medium | Hydraulic oil |
| Min working temperature | -25 °C |
| Original number equivalent | FMM050-2-B-A-C-A25-N-P01 |
| Outlet port thread diameter | 1/2 Inch |
| Outside diameter | 90 mm |
| Pressure collapse | 20 BAR |
| Product details | Suitable for mineral oil, Maximum pressure difference across element 20 bar (N series) or 210 bar (S series), Filtering from the outside in, Maximum operating pressure 450 bar, Burst pressure 1260 bar, Temperature -25°C to +110°C, Working height is the free space needed under the filter for replacing the element, Bypass opening pressure: 6 bar +-10%, Flow rate depends on build size and filter choice, Filter elements available in Fibreglass (A) or Metal (M), Filter elements available as A03 / A06 / A10 / A16 /A25 / M25 (in µm) |
| Pros | Can be placed in any position through pipe installation |
| Sensor port | Yes |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
HP0502A06AN
MP Filtri Filter element 6 µm HP0502A06AN
£66.16 excl.
£79.39 incl.

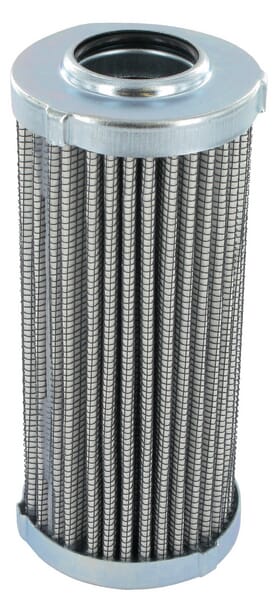

HP0502A10AN
MP Filtri Filter element 10 µm HP0502A10AN
£42.29 excl.
£50.75 incl.
HP0502A10AR
MP Filtri Filter element 10 µm HP0502A10AR
£58.73 excl.
£70.48 incl.
HP0502A16AN
MP Filtri Filter element 16 µm HP0502A16AN
£41.72 excl.
£50.06 incl.
HP0502A16AR
MP Filtri Filter element 16 µm HP0502A16AR
£56.02 excl.
£67.22 incl.

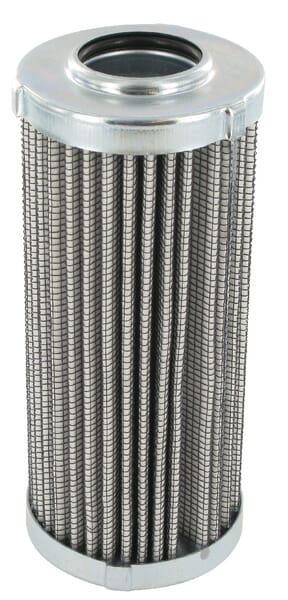

HP0502A25AN
MP Filtri Filter element 25 µm HP0502A25AN
£36.11 excl.
£43.33 incl.

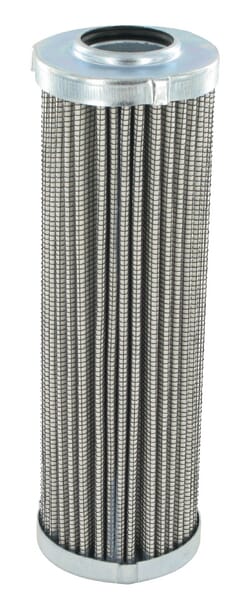

HP0502A25AR
MP Filtri Filter element 25 µm HP0502A25AR
£50.45 excl.
£60.54 incl.
HP0502A25AS
MP Filtri Filter element 25 µm HP0502A25AS
£139.28 excl.
£167.14 incl.
HP0502M10AN
MP Filtri Filter element 10 µm HP0502M10AN
£80.82 excl.
£96.98 incl.
HP0502M60AN
MP Filtri Filter element 60 µm HP0502M60AN
£64.18 excl.
£77.02 incl.
MP9E7
MP Filtri Electr/visual differential indicator 5 bar LMP/FMP/FHP/FMM MP9E7
£155.36 excl.
£186.43 incl.
MP9T2H
MP Filtri Indicator plug MP9T2H
£12.01 excl.
£14.41 incl.
MP9V7
MP Filtri Visual differential indicator 5 bar LMP /FMP/FHP/FMM MP9V7
£84.53 excl.
£101.44 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3791 g |
| Dimensions | 288 × 106 × 100 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000288970
MP Filtri Filter element 10 µm HP0503A10AS
£173.70 excl.
£208.44 incl.
In stock
Expected to ship on Monday 21 September

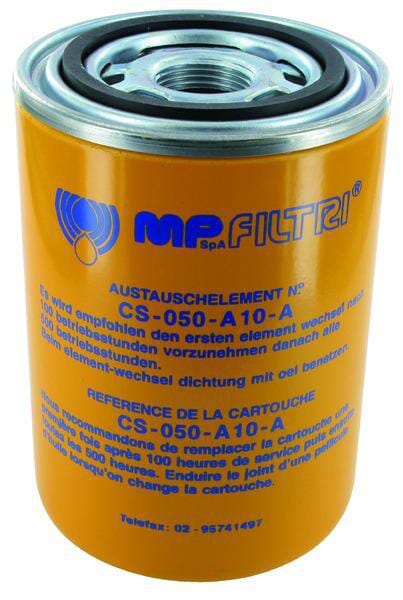

BPA000248019
MP Filtri Filter element 10 µm CS050A10
£33.10 excl.
£39.72 incl.
In stock
Expected to ship on Monday 21 September
BPA000248620
MP Filtri Filter element 10 µm CT150P10AB
£91.27 excl.
£109.52 incl.
Backorder available
Usually ships within 3–8 weeks

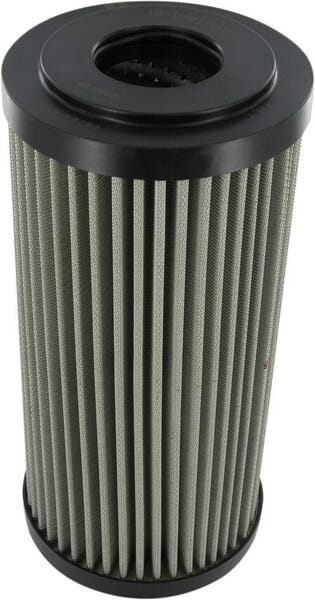

BPA000321476
MP Filtri Filter element 60 µm MF1801M60NB
£66.38 excl.
£79.66 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000253792

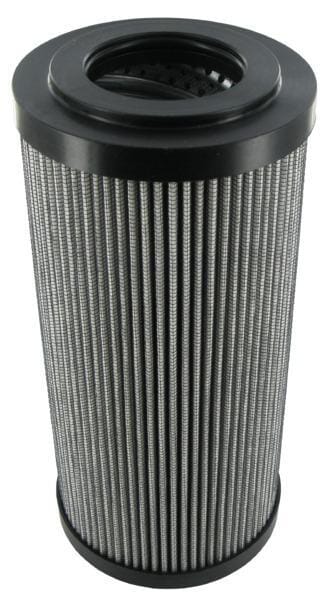

MP Filtri Filter element 10 µm CU250A10N
