£338.05
excl. VAT
£405.66 incl. VAT
£405.66
incl. VAT
£338.05 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Bypass | Yes |
|---|---|
| Filter finess | 10 µm |
| Filtration level | Absolute |
| Filtration material | Glass fibre |
| Height | 407 mm |
| Housing material | Steel |
| Includes | Filter comes standard without indicator plug |
| Inlet port thread diameter | 3/4 Inch |
| Length | 407 mm |
| Long description | The FMM series consists of versatile high-pressure filters that protect sensitive components in hydraulic high-pressure systems up to 450 bar. |
| Max flow rate | 130 l/min |
| Max working pressure | 450 BAR |
| Max working temperature | 110 °C |
| Medium | Hydraulic oil |
| Min working temperature | -25 °C |
| Original number equivalent | FMM050-5-B-A-D-A10-N-P01 |
| Outlet port thread diameter | 3/4 Inch |
| Outside diameter | 90 mm |
| Pressure collapse | 20 BAR |
| Product details | Suitable for mineral oil, Maximum pressure difference across element 20 bar (N series) or 210 bar (S series), Filtering from the outside in, Maximum operating pressure 450 bar, Burst pressure 1260 bar, Temperature -25°C to +110°C, Working height is the free space needed under the filter for replacing the element, Bypass opening pressure: 6 bar +-10%, Flow rate depends on build size and filter choice, Filter elements available in Fibreglass (A) or Metal (M), Filter elements available as A03 / A06 / A10 / A16 /A25 / M25 (in µm) |
| Pros | Can be placed in any position through pipe installation |
| Sensor port | Yes |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
HP0505A06AN
MP Filtri Filter element 6 µm HP0505A06AN
£136.87 excl.
£164.24 incl.
HP0505A10AN
MP Filtri Filter element 10 µm HP0505A10AN
£103.61 excl.
£124.33 incl.
HP0505A10AR
MP Filtri Filter element 10 µm HP0505A10AR
£108.30 excl.
£129.96 incl.
HP0505A25AN

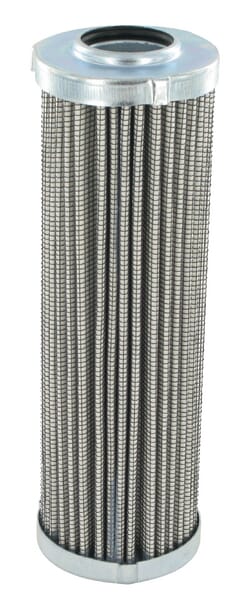

MP Filtri Filter element 25 µm HP0505A25AN
£90.09 excl.
£108.11 incl.
HP0505M10AN
MP Filtri Filter element 10 µm HP0505M10AN
£170.13 excl.
£204.16 incl.
MP9E7
MP Filtri Electr/visual differential indicator 5 bar LMP/FMP/FHP/FMM MP9E7
£155.36 excl.
£186.43 incl.
MP9T2H

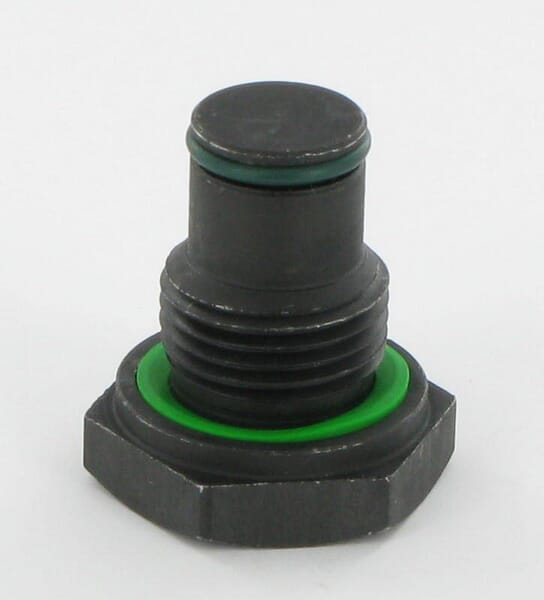

MP Filtri Indicator plug MP9T2H
£12.01 excl.
£14.41 incl.
MP9V7

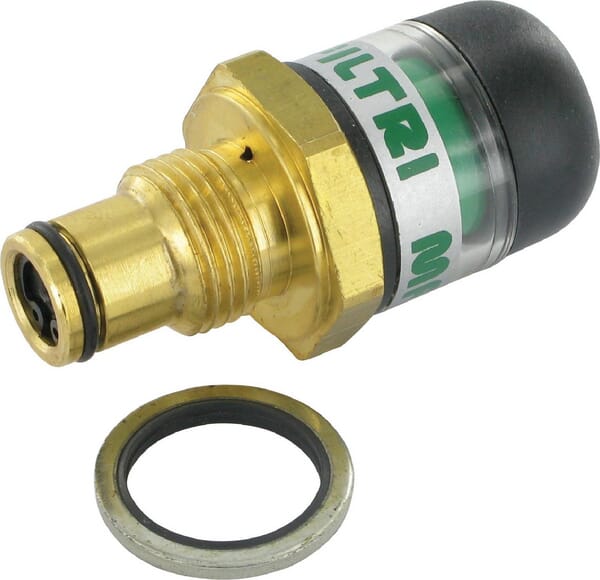

MP Filtri Visual differential indicator 5 bar LMP /FMP/FHP/FMM MP9V7
£84.53 excl.
£101.44 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 5682 g |
| Dimensions | 455 × 110 × 105 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000278997

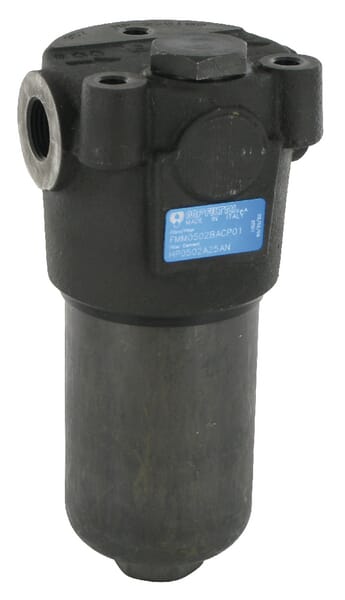

MP Filtri Pressure filter 3/4" 10 µm FMM0503BADA10NP01
£142.89 excl.
£171.47 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000278999

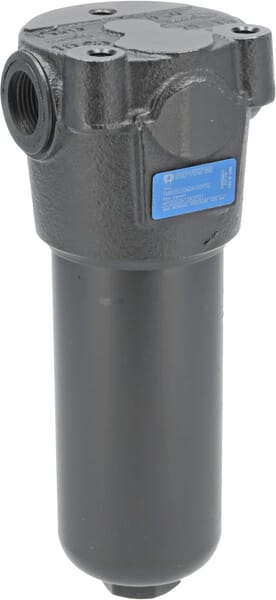

MP Filtri Pressure filter 3/4" 10 µm FMM0503SADA10SP02
£336.38 excl.
£403.66 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000279000
MP Filtri Pressure filter 3/4" 10 µm FMM0504BADA10NP01
£205.46 excl.
£246.55 incl.
In stock
Expected to ship on Friday 18 September
BPA000287735

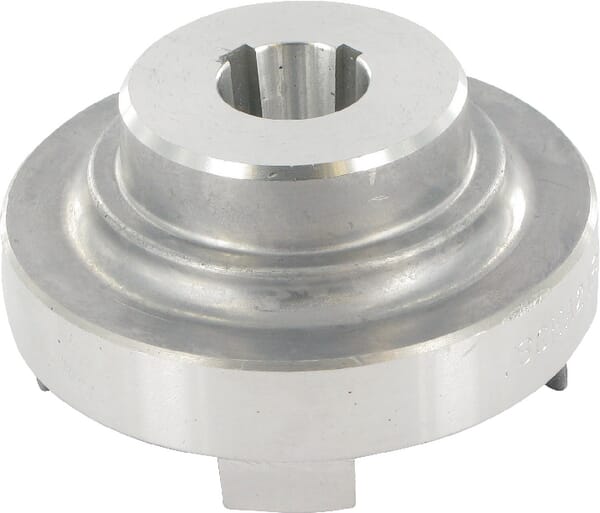

MP Filtri Pump half GEP283
