£354.72
excl. VAT
£425.66 incl. VAT
£425.66
incl. VAT
£354.72 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Bypass | Yes |
|---|---|
| Filter finess | 10 µm |
| Filtration level | Absolute |
| Filtration material | Glass fibre |
| Height | 221 mm |
| Housing material | Steel |
| Includes | Filter comes standard without indicator plug |
| Inlet port flange diameter | 150 mm |
| Inlet port thread diameter | 3/4 Inch |
| Length | 222 mm |

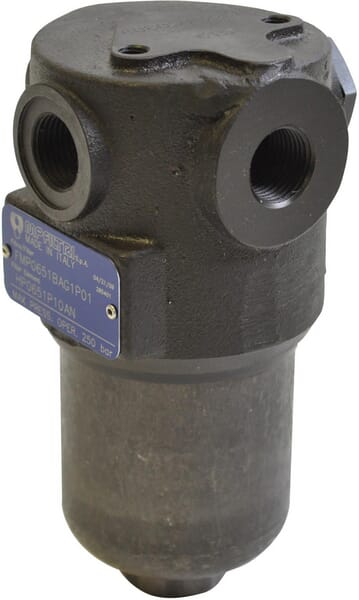

| Long description | The FMP series consists of versatile high-pressure filters that protect sensitive components in hydraulic high-pressure systems up to 320 bar. |
| Max flow rate | 120 l/min |
| Max working pressure | 320 BAR |
| Max working temperature | 110 °C |
| Medium | Hydraulic oil |
| Min flow rate | 120 l/min |
| Min working temperature | -25 °C |
| Original number equivalent | FMP135-1-B-A-G1-A10-N-P01 |
| Outlet port thread diameter | 3/4 Inch |
| Outside diameter | 104 mm |
| Pressure collapse | 210 BAR |
| Product details | Suitable for mineral oil, Maximum pressure difference across element 20 bar (N series) or 210 bar (S series), Filtering from the outside in, Maximum operating pressure 320 bar, Burst pressure 840 bar, Temperature -25°C to +110°C, Working height is the free space needed under the filter for replacing the element, Bypass opening pressure: 6 bar +-10%, Flow rate depends on build size and filter choice., Filter elements available in Fibreglass (A) or Metal (M), Filter elements available as A03 / A06 / A10 / A25 / M60 (in µm) |
| Pros | Can be placed in any position through pipe installation |
| Sensor port | Yes |
| Sensor port thread diameter | M10 |
| Sensor port thread type | Metric |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 5885 g |
| Dimensions | 310 × 120 × 120 mm |
| Dangerous goods | No |
You might also like
BPA000319297
MP Filtri Filter element 25 µm MR2504P25A
£66.36 excl.
£79.63 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000289019
MP Filtri Filter element 6 µm HP1351A06AN
£82.69 excl.
£99.23 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000280477

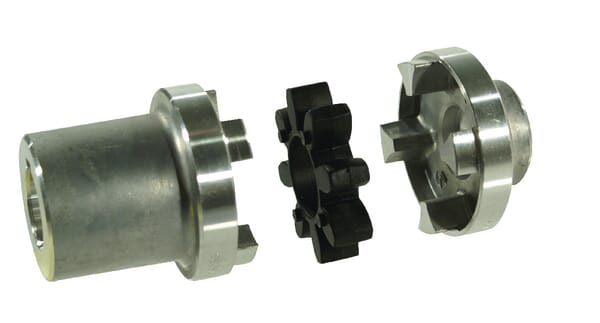

MP Filtri Coupling ø24: 1 GE241
£16.86 excl.
£20.23 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000321425

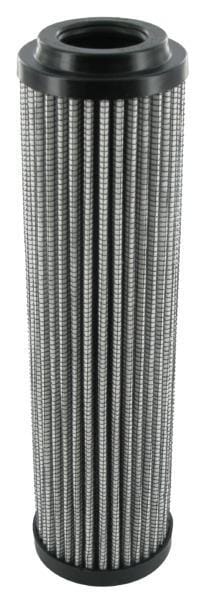

MP Filtri Filter element 25 µm MF0203P25NB
£15.16 excl.
£18.19 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000321485

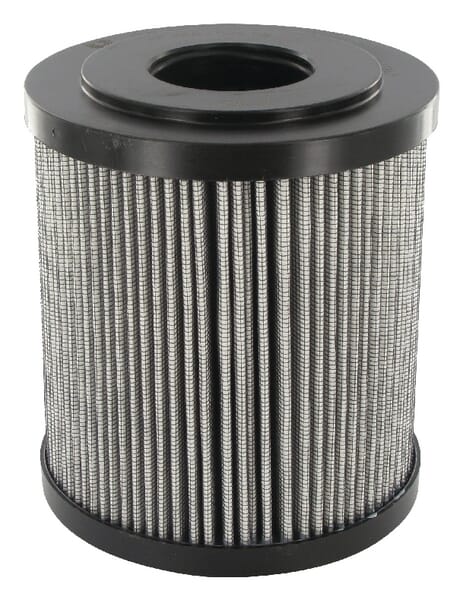

MP Filtri Filter element 10 µm MF4001A10HB
