£330.84
excl. VAT
£397.01 incl. VAT
£397.01
incl. VAT
£330.84 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Bypass | Yes |
|---|---|
| Filter finess | 10 µm |
| Filtration level | Nominal |
| Filtration material | Paper |
| Height | 221 mm |
| Housing material | Steel |
| Includes | Filter comes standard without indicator plug |
| Inlet port thread diameter | 1 Inch |
| Length | 222 mm |

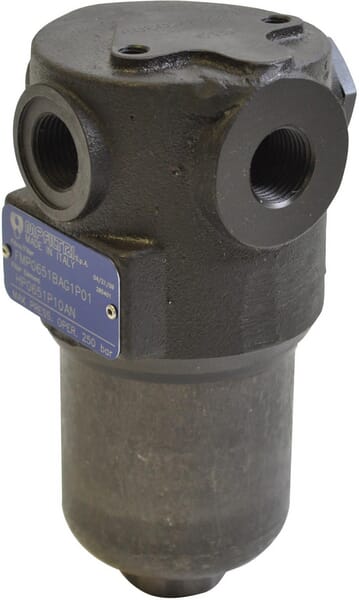

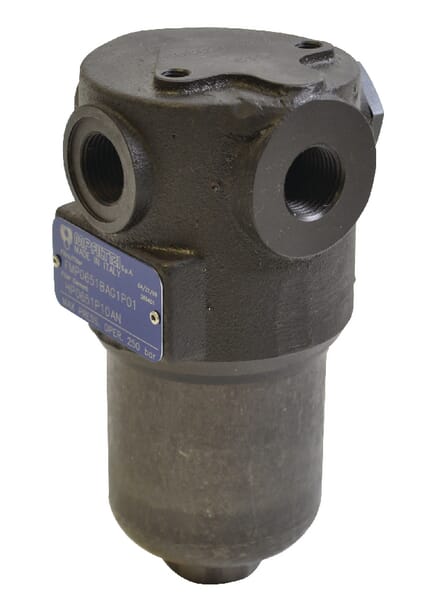

| Long description | The FMP series consists of versatile high-pressure filters that protect sensitive components in hydraulic high-pressure systems up to 320 bar. |
| Max flow rate | 171 l/min |
| Max working pressure | 320 BAR |
| Max working temperature | 110 °C |
| Medium | Hydraulic oil |
| Min flow rate | 79 l/min |
| Min working temperature | -25 °C |
| Original number equivalent | FMP135-1-B-A-G1-P10-N-P01 |
| Outlet port thread diameter | 3/4 Inch |
| Outside diameter | 104 mm |
| Pressure collapse | 20 BAR |
| Product details | Suitable for mineral oil, Maximum pressure difference across element 20 bar (N series) or 210 bar (S series), Filtering from the outside in, Maximum operating pressure 320 bar, Burst pressure 840 bar, Temperature -25°C to +110°C, Working height is the free space needed under the filter for replacing the element, Bypass opening pressure: 6 bar +-10%, Flow rate depends on build size and filter choice., Filter elements available in Fibreglass (A) or Metal (M), Filter elements available as A03 / A06 / A10 / A25 / M60 (in µm) |
| Pros | Can be placed in any position through pipe installation |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 5853 g |
| Dimensions | 420 × 165 × 160 mm |
| Dangerous goods | No |
You might also like
BPA000319297

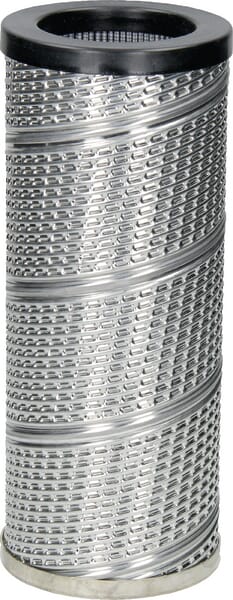

MP Filtri Filter element 25 µm MR2504P25A
£66.36 excl.
£79.63 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000288964
MP Filtri Filter element 10 µm HP0502M10AN
£80.82 excl.
£96.98 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000253685

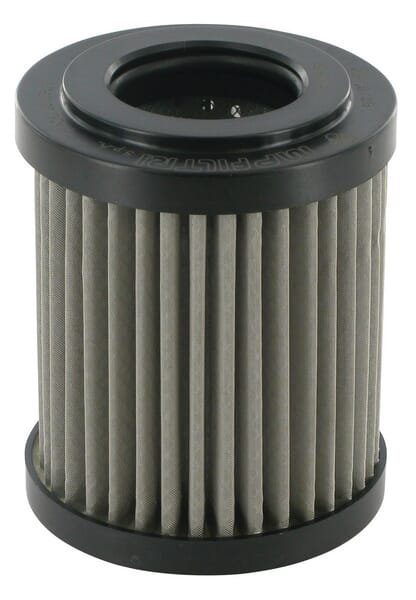

MP Filtri Filter element 25 µm CU040A25N
£41.15 excl.
£49.38 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000287729
MP Filtri Pump half GEP005M
£4.71 excl.
£5.65 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000303686

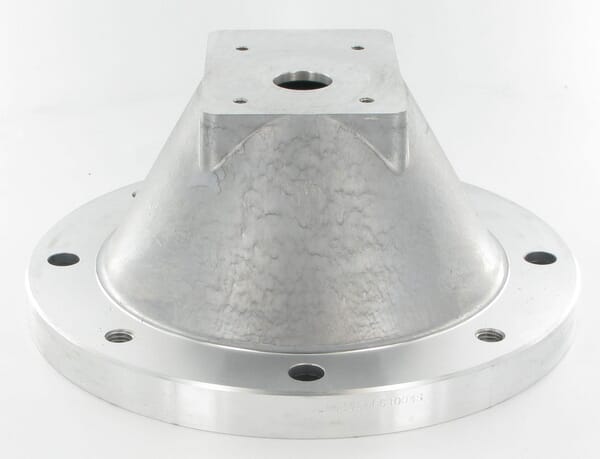

MP Filtri Bell housing GR-1- 250mm L1251
