£249.65
excl. VAT
£299.58 incl. VAT
£299.58
incl. VAT
£249.65 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

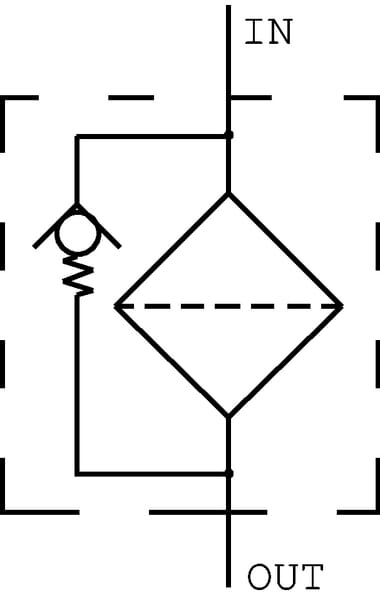

| Bypass | Yes |
|---|---|
| Filter finess | 25 µm |
| Filtration level | Absolute |
| Filtration material | Glass fibre |

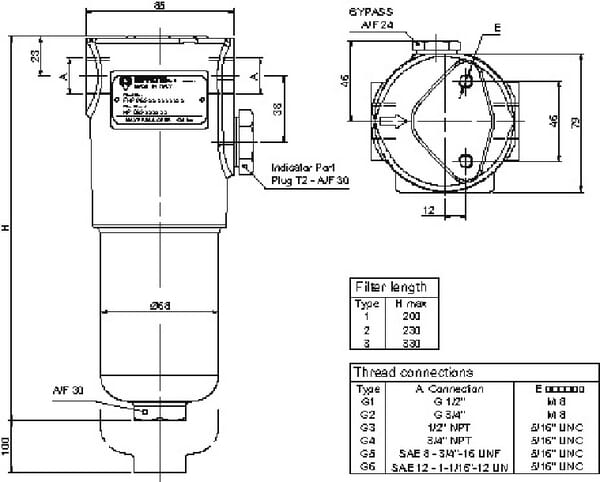

| Height | 227 mm |
| Housing material | Steel |
| Includes | Filter comes standard without indicator plug |
| Inlet port thread diameter | 1/2 Inch |
| Length | 169 mm |
| Long description | The FHP series consists of versatile high-pressure filters that protect sensitive components in hydraulic high-pressure systems up to 420 bar. |
| Max flow rate | 98 l/min |
| Max working pressure | 420 BAR |
| Max working temperature | 110 °C |
| Medium | Hydraulic oil |
| Min working temperature | -25 °C |
| Original number equivalent | FMP065-2-B-A-G1-A25-N-P01 |
| Outside diameter | 85 mm |
| Pressure collapse | 20 BAR |
| Product details | Suitable for mineral oil, Maximum pressure difference across element 20 bar (N series) or 210 bar (S series), Filtering from the outside in, Maximum operating pressure 420 bar, Burst pressure 1260 bar, Temperature -25°C to +110°C, Bypass opening pressure: 6 bar +-10%, Flow rate depends on build size and filter choice, Filter elements available in Fibreglass (A) or Metal (M), Filter elements available as A03 / A06 / A10 / A16 /A25 / M25 (in µm) |
| Pros | Can be placed in any position through pipe installation |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3530 g |
| Dimensions | 290 × 100 × 100 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000241611
MP Filtri Filter element 25 µm CH050P25
£111.12 excl.
£133.34 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000241562

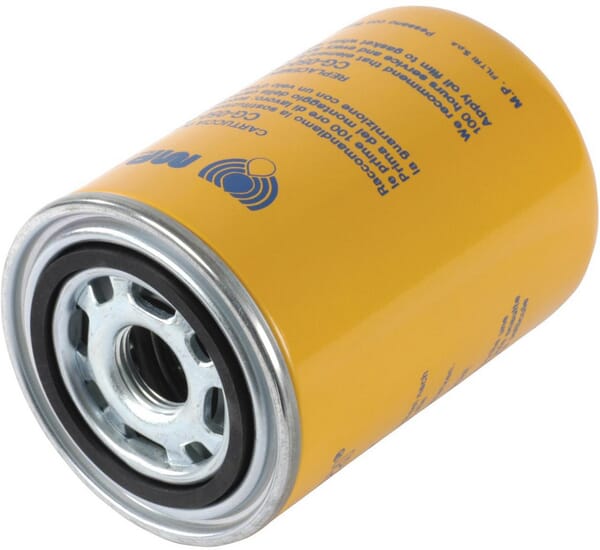

MP Filtri Filter element 25 µm CG050P25A
£30.81 excl.
£36.97 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000321430

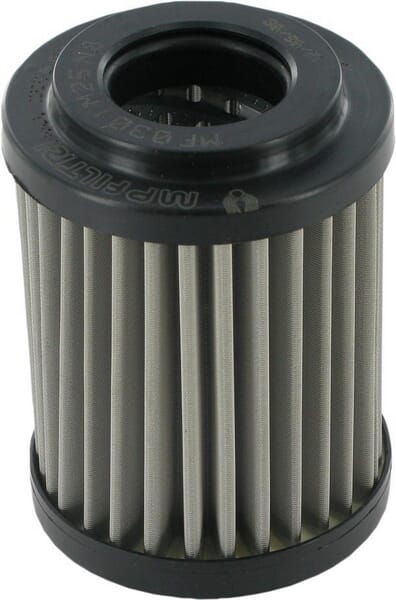

MP Filtri Filter element 25 µm MF0301M25NB
