£15.02
excl. VAT
£18.02 incl. VAT
£18.02
incl. VAT
£15.02 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Bypass | No |
|---|---|
| Filter finess | 90 µm |
| Filtration material | Metal |

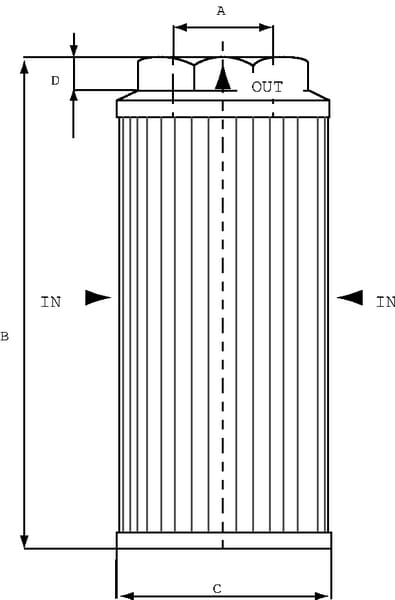

| Height | 79 mm |
| Inlet port diameter | 30 mm |
| Inlet port thread diameter | 3/8 Inch |
| Inlet port thread length | 10 mm |
| Inlet port thread type | BSP |
| Length | 78 mm |

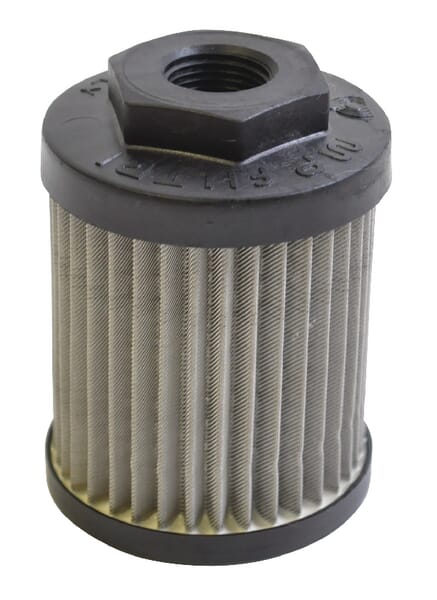

| Long description | The STR series is a range of suction strainers that protect the pumps from coarse dirt from turbulence at the bottom of the hydraulic tank. They are placed below the oil level, directly on the suction line of the pump. |
| Max working temperature | 100 °C |
| Medium | Hydraulic oil |
| Min working temperature | -25 °C |
| Outside diameter | 52 mm |

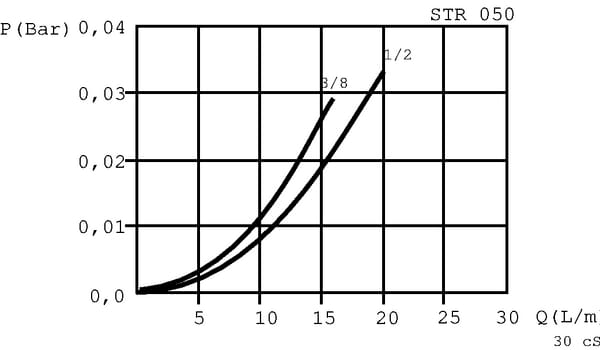

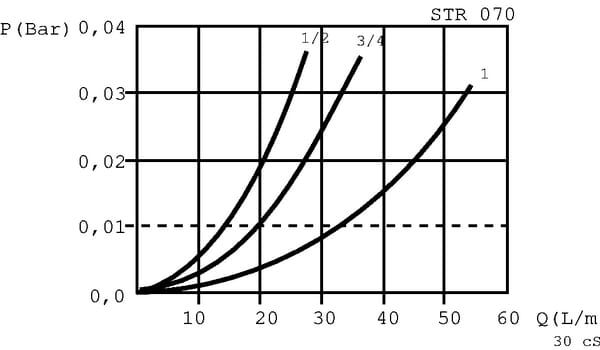

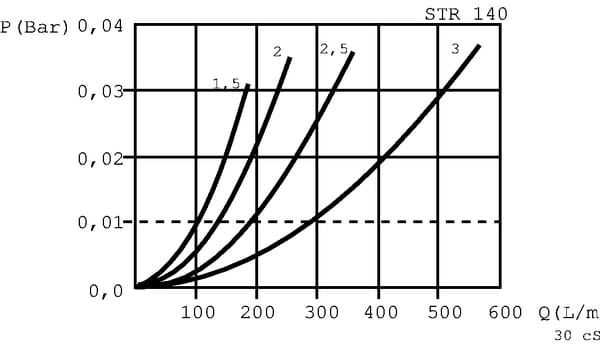

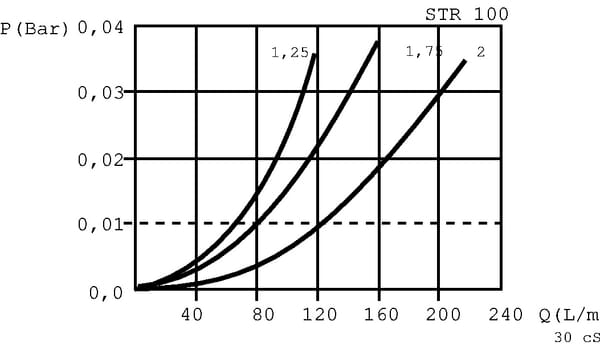

| Product details | Protects pumps against coarse dirt, Applicable for a rated flow up to 600 l/min, For temperatures between -25° C to +100° C, Available with or without bypass, Front and back cover material: Nylon, Interior material: Zinc-plated steel, Filter medium material: metal wire mesh, Filtering from the outside (OUT) in (IN), Drop in pressure for the specified bore and new filter: 0.02 bar, Screw mounting (BSP female thread), NPT thread available on request |
| Pros | Easy to mount on the standpipe in the oil reservoir |
| Sensor port | Yes |
| Sensor port thread diameter | 3/8 Inch |
| Sensor port thread type | BSP |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 71 g |
| Dimensions | 100 × 50 × 50 mm |
| Dangerous goods | No |
You might also like
BPA000192747
MP Filtri Filter element 8IN090A010ANBP01
£72.43 excl.
£86.92 incl.
In stock
Expected to ship on Friday 18 September
BPA000303642

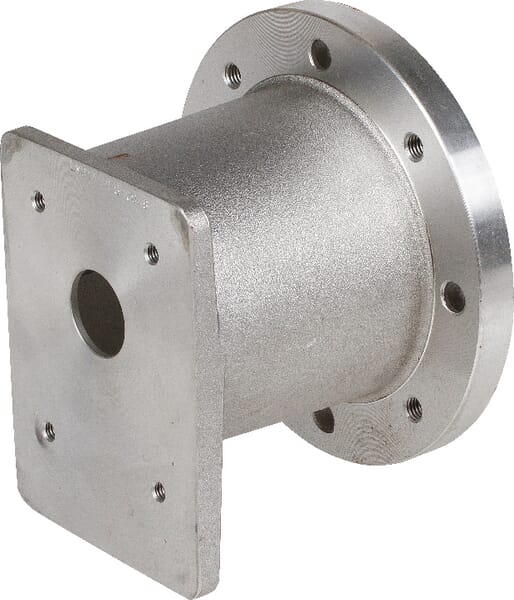

MP Filtri Bell Housing 90B14-GR-1 L1141B14
£32.53 excl.
£39.04 incl.
In stock
Expected to ship on Monday 21 September
BPA000288975

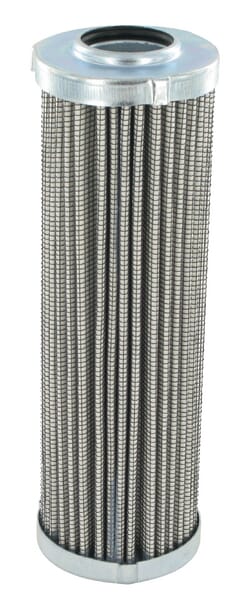

MP Filtri Filter element 25 µm HP0503M25AN
£80.12 excl.
£96.14 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000321487

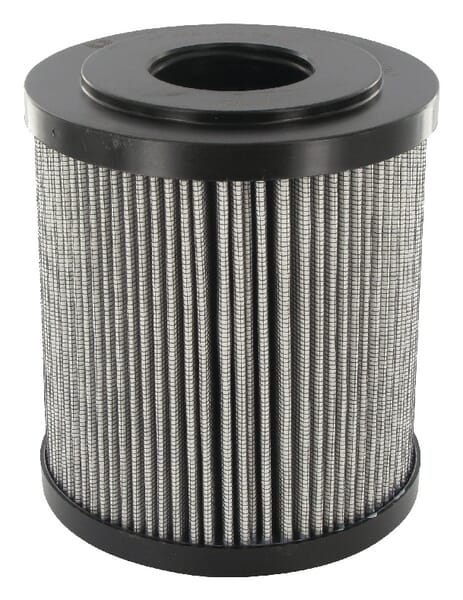

MP Filtri Filter element 25 µm MF4001A25HB
£103.20 excl.
£123.84 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000265196

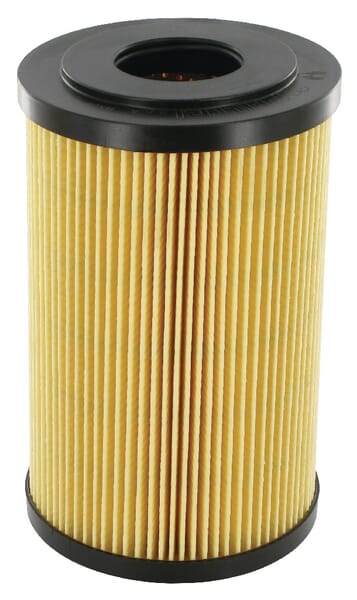

MP Filtri Filter element F 33/ P10A F33P10A
£61.05 excl.
£73.26 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000192499

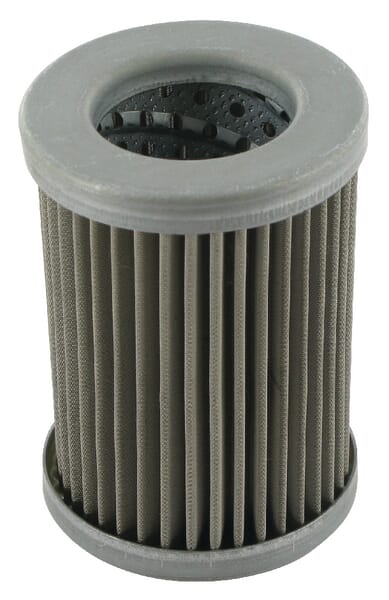

MP Filtri Filter cartridge 8CG150P25A
