£31.15
excl. VAT
£37.38 incl. VAT
£37.38
incl. VAT
£31.15 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Bypass | No |
|---|---|
| Filter finess | 90 µm |
| Filtration material | Metal |

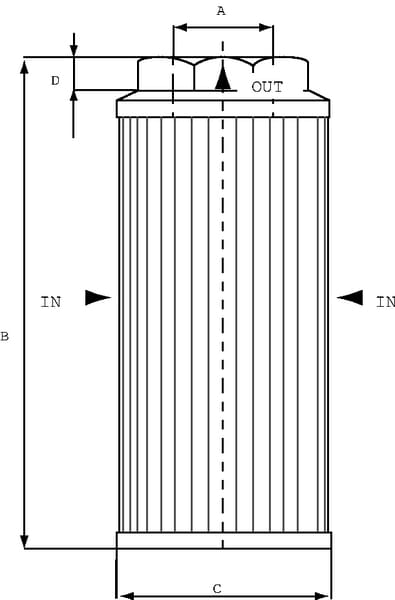

| Height | 137 mm |
| Inlet port diameter | 69 mm |
| Inlet port thread diameter | 1-1/4 Inch |
| Inlet port thread length | 15 mm |
| Inlet port thread type | BSP |
| Length | 135 mm |
| Long description | The STR series is a range of suction strainers that protect the pumps from coarse dirt from turbulence at the bottom of the hydraulic tank. They are placed below the oil level, directly on the suction line of the pump. |
| Max working temperature | 100 °C |
| Medium | Hydraulic oil |
| Min working temperature | -25 °C |
| Outside diameter | 99 mm |

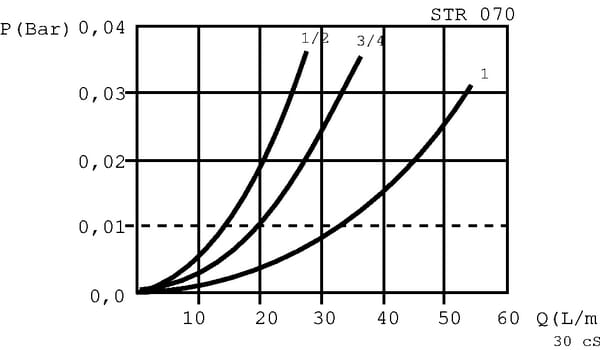

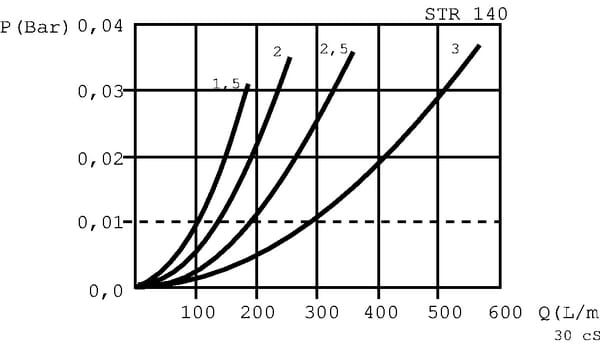

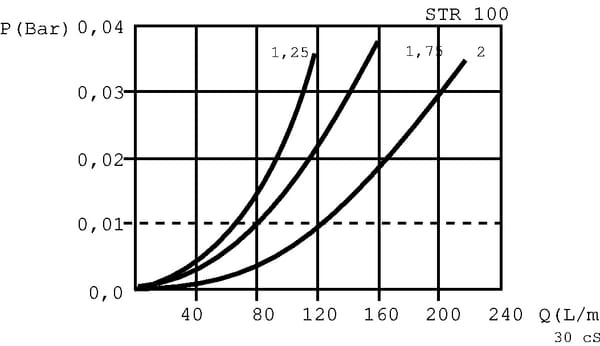

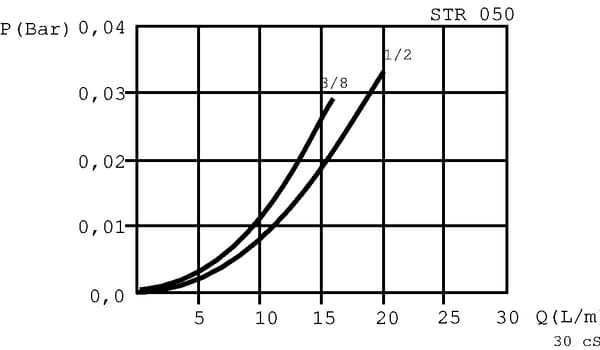

| Product details | Protects pumps against coarse dirt, Applicable for a rated flow up to 600 l/min, For temperatures between -25° C to +100° C, Available with or without bypass, Front and back cover material: Nylon, Interior material: Zinc-plated steel, Filter medium material: metal wire mesh, Filtering from the outside (OUT) in (IN), Drop in pressure for the specified bore and new filter: 0.02 bar, Screw mounting (BSP female thread), NPT thread available on request |
| Pros | Easy to mount on the standpipe in the oil reservoir |
| Sensor port | Yes |
| Sensor port thread diameter | 1-1/4 Inch |
| Sensor port thread type | BSP |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 317 g |
| Dimensions | 130 × 100 × 100 mm |
| Dangerous goods | No |
You might also like
BPA000321450

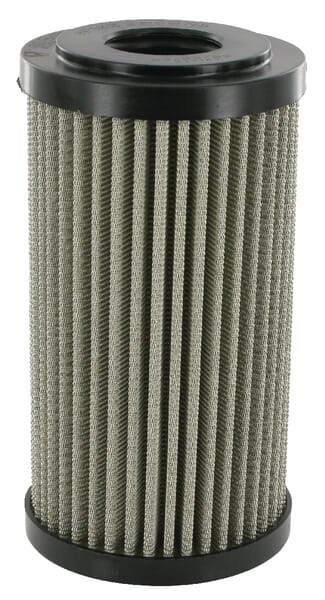

MP Filtri Filter element 60 µm MF1002M60NB
£29.21 excl.
£35.05 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000376260
MP Filtri Dipstick/fillingcap 1.1/2" BSP TSD24
£14.88 excl.
£17.86 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000319241

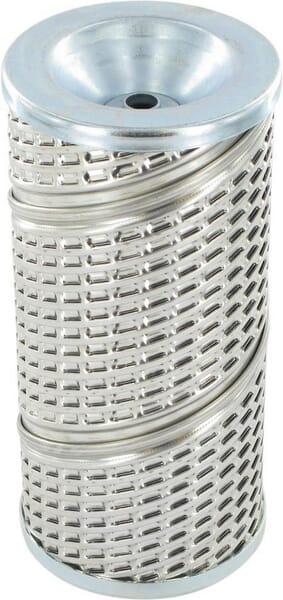

MP Filtri Filter element 10 µm MR1002A10A
£45.43 excl.
£54.52 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000370054
MP Filtri Air breather filter 10 µm TAP90F10A0L1
£19.56 excl.
£23.47 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000319246

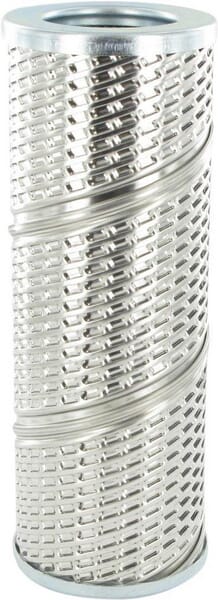

MP Filtri Filter element 6 µm MR1003A06A
£62.77 excl.
£75.32 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000318916

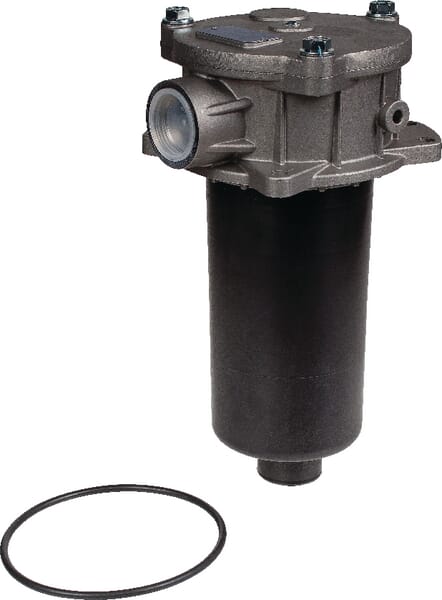

MP Filtri Return filter MPF181/1-20-M60- MPF1811M60
