£675.44
excl. VAT
£810.53 incl. VAT
£810.53
incl. VAT
£675.44 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Bypass | No |
|---|---|
| Filter finess | 25 µm |
| Filtration level | Nominal |
| Filtration material | Metal |
| Height | 108 mm |
| Includes | Filter housing, Filter element |

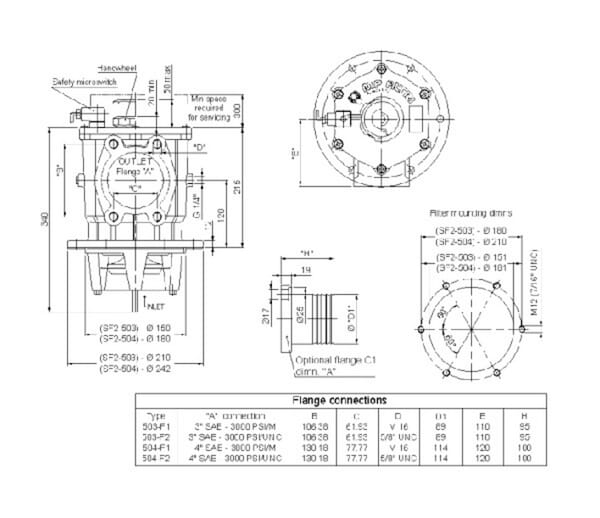

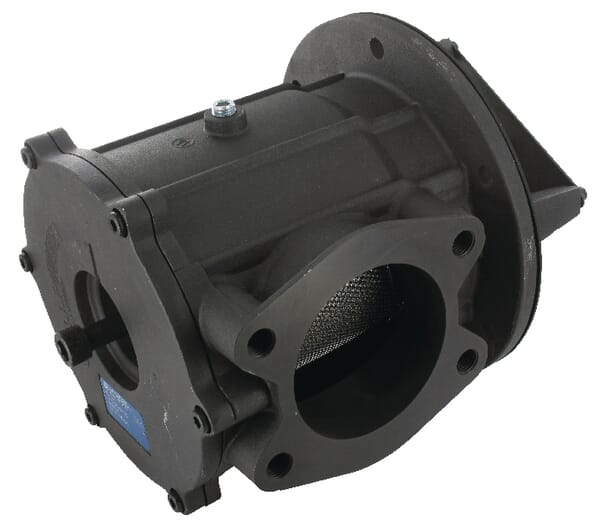

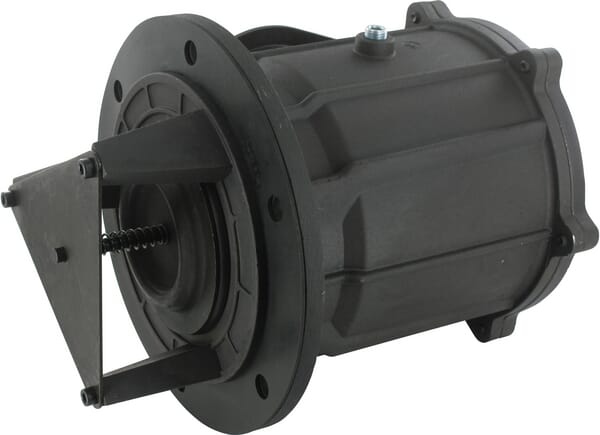

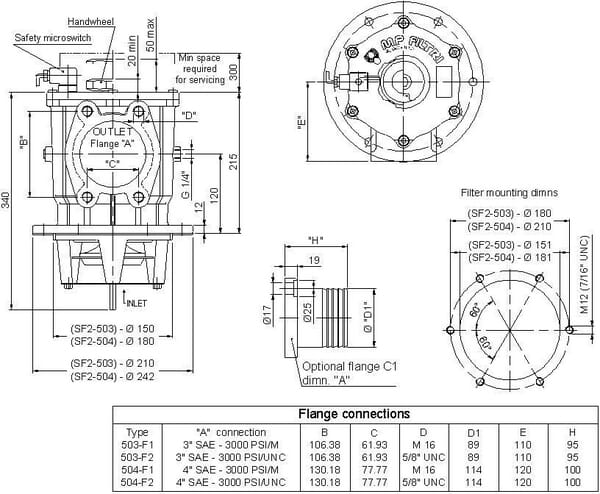

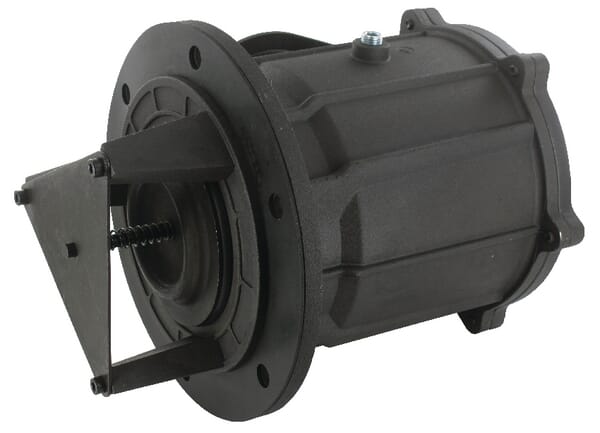

| Long description | The SF2-500-540 series suction filters are designed for horizontal tank installation below the oil level. The filter housing is equipped with a shut-off valve with hand wheel that makes it possible to change the filter element without emptying the tank. To prevent unintended start-up while the diaphragm is not open, an optional safety switch is available. |
| Max working temperature | 100 °C |
| Medium | Hydraulic oil |
| Min flow rate | 230 l/min |
| Min working temperature | -25 °C |
| Outlet port thread diameter | 4 Inch |
| Outside diameter | 180 mm |
| Product details | Application: Suction filter, Mounting : Tank mounting, below oil level, In combination with filter elements type SF, Material : Aluminium, Medium: Suitable for mineral oil, Temperature: -25°C to +110°C, Filtering: From the inside (IN) out (OUT), Flow rate up to 850 l/min depends on build size and filter choice, Filter elements available as Metal (M), available as M25 / M60 / M90 / M250, Seal N.B.R.; viton on request, Equipped with integrated valve so that no oil is lost during a filter change, These suction filters cannot be equipped with a bypass valve, Equipped with magnetic core to catch metal particles, S = without microswitch, without hand wheel, D = with microswitch and hand wheel, C= with microswitch, without hand wheel |
| Pros | Protects pumps against coarse dirt, Replace filters without emptying tank |
| Unit | Each |

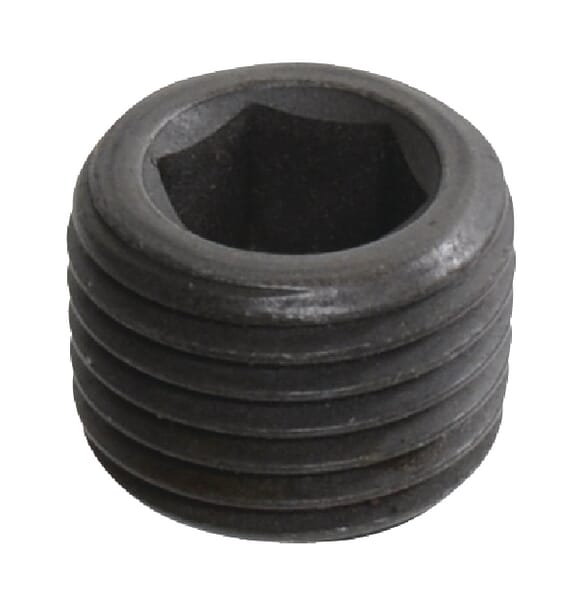

Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 5627 g |
| Dimensions | 250 × 243 × 327 mm |
| Dangerous goods | No |
You might also like
BPA000321443

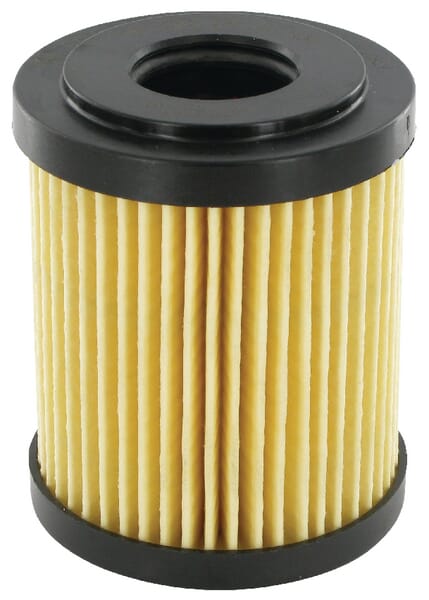

MP Filtri Filter element 25 µm MF1001P25NB
£13.90 excl.
£16.68 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000321462

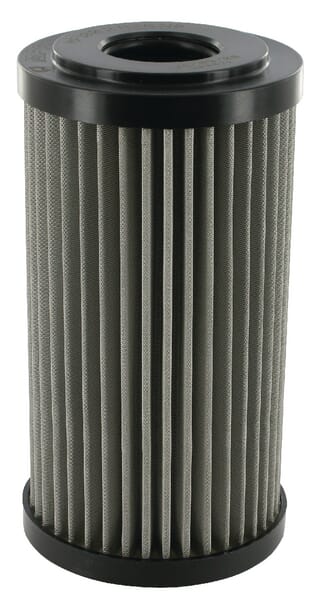

MP Filtri Filter element 25 µm MF1004A25HB
£80.60 excl.
£96.72 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000319345

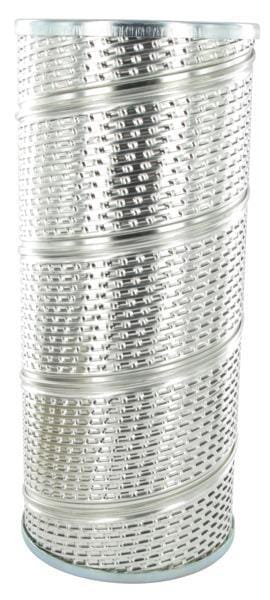

MP Filtri Filter element 25 µm MR6304A25A
£172.22 excl.
£206.66 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000265197
MP Filtri Filter element F 33/ P25A F33P25A
£50.42 excl.
£60.50 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000319165

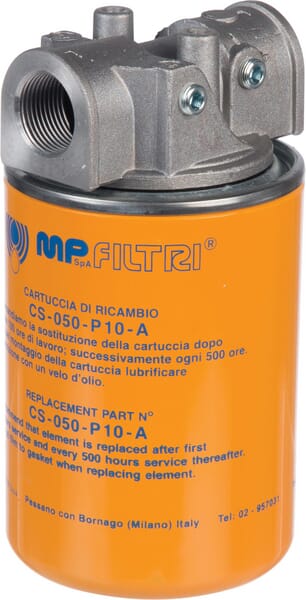

MP Filtri Spin-on Filter MPS050RU1P10A
