£585.25
excl. VAT
£702.30 incl. VAT
£702.30
incl. VAT
£585.25 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Bypass | No |
|---|---|
| Filter finess | 25 µm |
| Filtration level | Nominal |
| Filtration material | Metal |

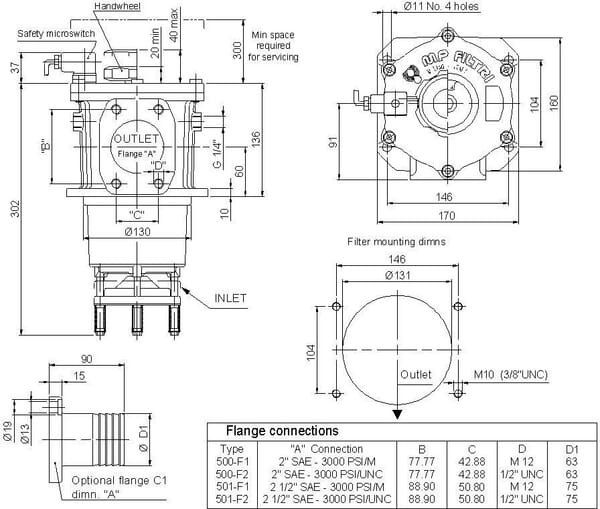

| Height | 166 mm |
| Includes | Filter housing, Filter element |

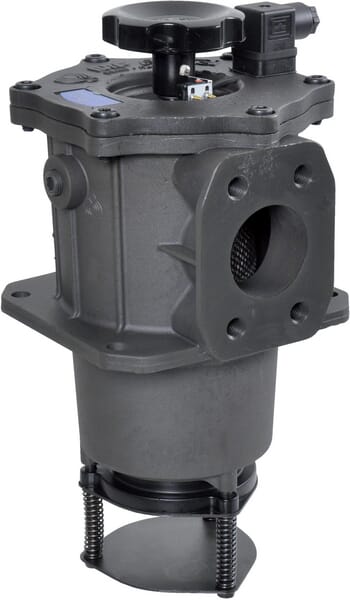

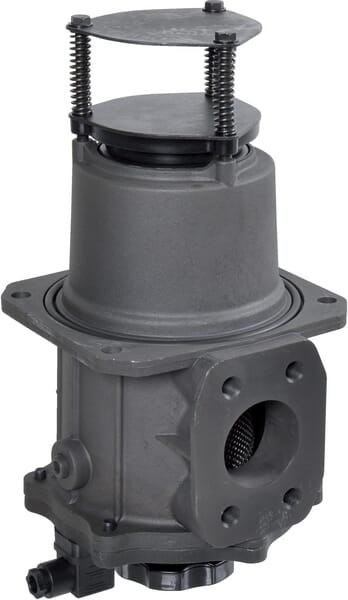

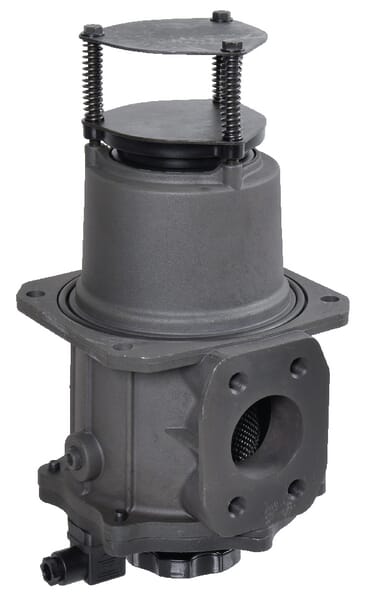

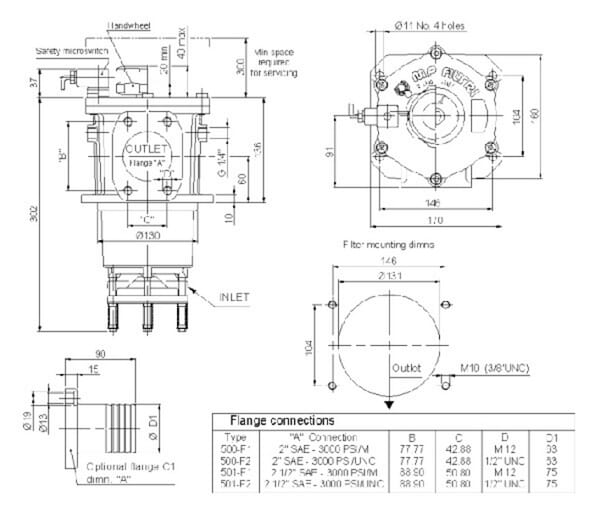

| Long description | The SF2-500-540 series suction filters are designed for horizontal tank installation below the oil level. The filter housing is equipped with a shut-off valve with hand wheel that makes it possible to change the filter element without emptying the tank. To prevent unintended start-up while the diaphragm is not open, an optional safety switch is available. |
| Max working temperature | 100 °C |
| Medium | Hydraulic oil |
| Min flow rate | 75 l/min |
| Min working temperature | -25 °C |
| Outlet port thread diameter | 2 Inch |
| Outside diameter | 130 mm |
| Product details | Application: Suction filter, Mounting : Tank mounting, below oil level, In combination with filter elements type SF, Material : Aluminium, Medium: Suitable for mineral oil, Temperature: -25°C to +110°C, Filtering: From the inside (IN) out (OUT), Flow rate up to 850 l/min depends on build size and filter choice, Filter elements available as Metal (M), available as M25 / M60 / M90 / M250, Seal N.B.R.; viton on request, Equipped with integrated valve so that no oil is lost during a filter change, These suction filters cannot be equipped with a bypass valve, Equipped with magnetic core to catch metal particles, S = without microswitch, without hand wheel, D = with microswitch and hand wheel, C= with microswitch, without hand wheel |
| Pros | Protects pumps against coarse dirt, Replace filters without emptying tank |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3551 g |
| Dimensions | 350 × 170 × 170 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000241610
MP Filtri Filter element 10 µm CH050P10
£111.55 excl.
£133.86 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000318928

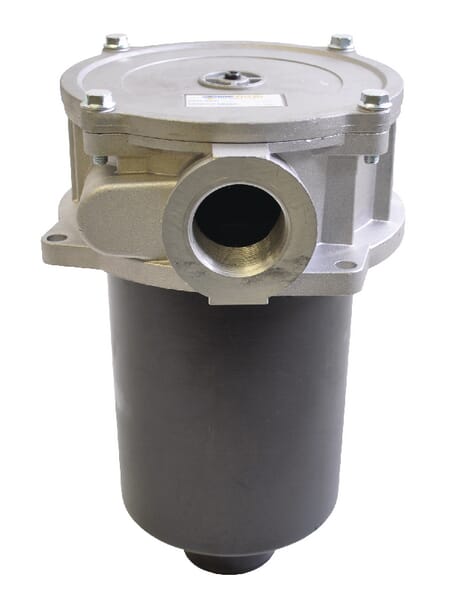

MP Filtri Return filter MPF 400/3 MPF4003A25H
£283.18 excl.
£339.82 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000319247

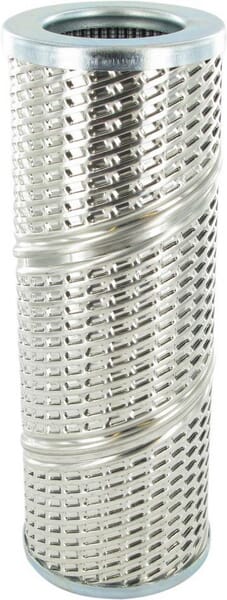

MP Filtri Filter element 10 µm MR1003A10A
£56.79 excl.
£68.15 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000373739

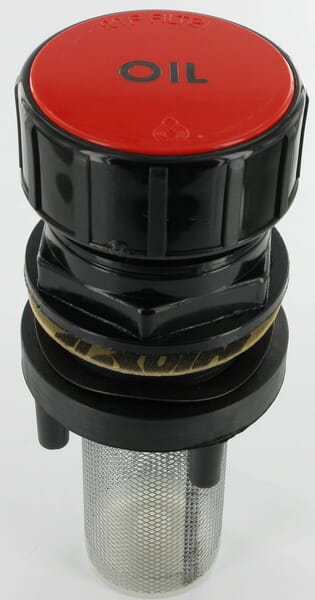

MP Filtri Filling cap TC72-GAL-90-PROC-1 TC72GAL90
£32.21 excl.
£38.65 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000321502

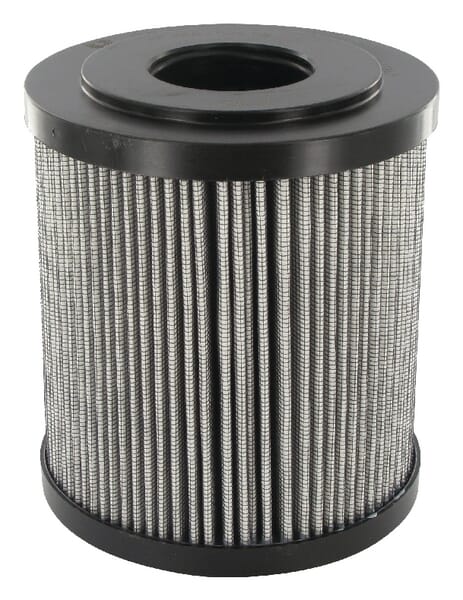

MP Filtri Filter element 25 µm MF4003A25HB
£142.23 excl.
£170.68 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000318936

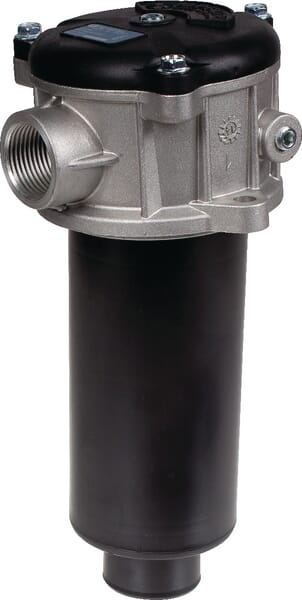

MP Filtri Filter Housing 1 MPF91003
