£36.54
excl. VAT
£43.85 incl. VAT
£43.85
incl. VAT
£36.54 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Cable length | 10 m |
|---|---|
| Cable type | Multi-core |
| Colour cable sheath | Black |
| Halogen free | No |
| Insulation class | 67 |
| Manufacturer Product ID | 7000-18021-6261000 |
| Material contact body | Brass |
| Material of cable sheath | Polyurethane |
| Material of contact surface | Gold |
| Number of poles | 2 |
| Permitted cable outer temperature after assembling without vibration | -30.0-80.0 |
| Permitted cable outer temperature during assembling/handling | -5-80 °C |
| Positioning cable feed, field-sided | Right-angled |
| Rated current In | 4 A |
| Rated voltage | 24 V |
| Screened | No |

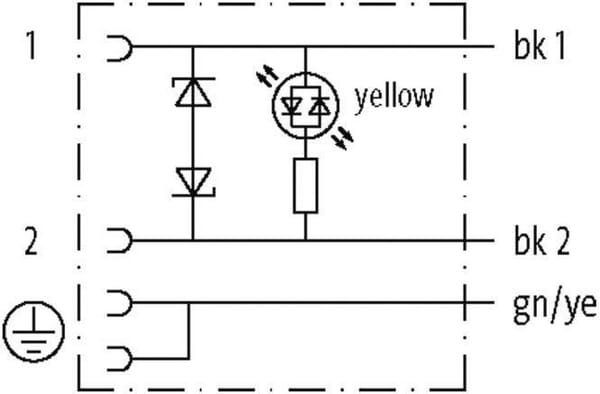

| Technical info | Operating voltage 24 V AC / DC, Surge cut-off <= 55 V, Off delay time <= 20 ms, Hold (40 ° C) max. 4 A, LED indicator (yellow), Current consumption approximately 12 mA, Housing plastic, black (gray) on request, Temperature range -25 ... +85 ° C, depending on the connected line |
| Type of electrical connection, box-sided | Free conductor end |
| Type of electrical connection, field-sided | Valve A |
| Type of plug-in contact, field sided | Female (bus) |
| Unit | Each |
| Vulcanize | Yes |
| With LED indication | Yes |
Logistics
| EAN | 4048879193580 |
|---|---|
| Unit of measure | EA |
| Weight | 565 g |
| Dimensions | 250 × 250 × 40 mm |
| Dangerous goods | No |
You might also like
BPA000083240

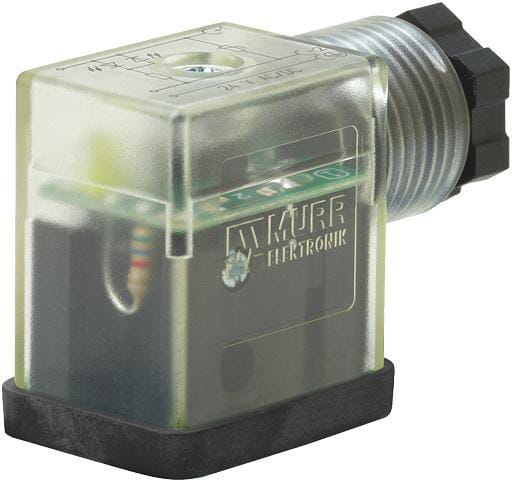

MURR ELEKTRONIK Valve connector, type BI 29805MSUDB10000000
£15.97 excl.
£19.16 incl.
In stock
Expected to ship on Friday 18 September
BPA000160631
MURR ELEKTRONIK Sensor cable M12,5P 10m 7000122416351000
£52.74 excl.
£63.29 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000190863

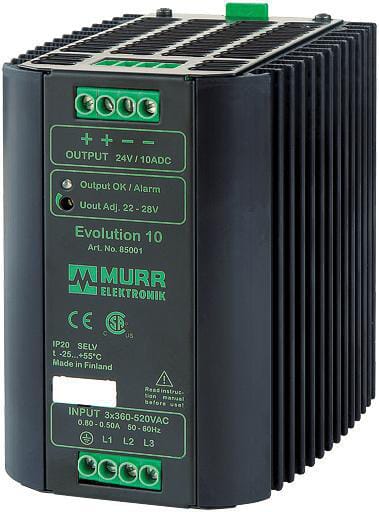

MURR ELEKTRONIK Power supply, 400VAC/24VDC 10A 85001
£464.91 excl.
£557.89 incl.
In stock
Expected to ship on Friday 18 September
BPA000367794
MURR ELEKTRONIK Plug double M/M 220mm SP8881500220
£49.74 excl.
£59.69 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000029137

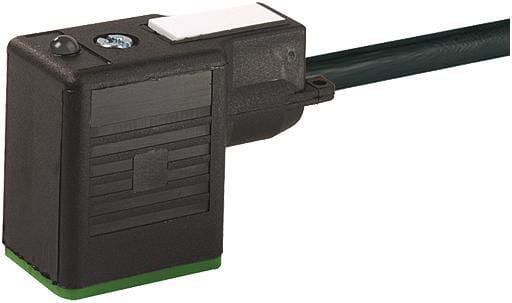

MURR ELEKTRONIK Plug, 11 mm, 7.5 m cable, PU 11021MSUDB16260750
