£23.51
excl. VAT
£28.21 incl. VAT
£28.21
incl. VAT
£23.51 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Bend radius | 130 mm |
|---|---|
| Burst pressure | 340 BAR |
| DN | 16 mm |
| Hose inside diameter | 16.6 mm |
| Hose outside diameter | 19.8 mm |
| Long description | Lightweight smooth bore hose engineered for general applications, especially in demanding environments involving extreme temperatures and aggressive chemicals, gases or solvents. It is suitable for use with certain gases, though some gas permeation may occur and should be considered in system design. Constructed with a pure PTFE inner tube, the hose delivers outstanding chemical resistance while maintaining a low weight. A stainless steel braid or outer cover reinforces the hose, providing durability and support for medium pressure requirements. |
| Material inside | Polytetrafluoroethylene (PTFE) |
| Material outside | Stainless steel AISI 304 |
| Max working pressure | 85 BAR |
| Max working temperature | 260 °C |
| Max. working temperature | 500 °F |
| Medium | Gas, Air, Chemicals |
| Min working temperature | -60 °C |
| Min. working temperature | -76 °F |
| Product details | PTFE hose, Smooth inner tube, Stainless steel outer cover, For medium pressure, For use with certain gases, though some gas permeation may occur and should be considered in system design |
| Reinforcement material | Stainless steel AISI 304 |
| Reinforcement type | Braid |
| Type | Air hose, Chemical hose, Gas hose |
| Unit | Metre |
| Weight | 0.251 kg/m |
Logistics
| EAN | — |
|---|---|
| Unit of measure | MTR |
| Weight | 370 g |
| Dimensions | 390 × 260 × 20 mm |
| Dangerous goods | No |
You might also like
BPA000366652
Non Original Hose connection 90° 30mm SY026888
£19.48 excl.
£23.38 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000366633

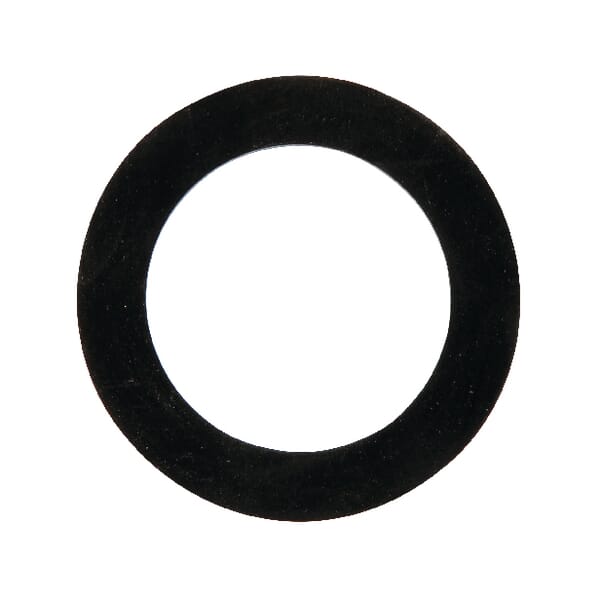

Non Original Seal ring 34x50x2.5 SY025600
£3.79 excl.
£4.55 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000382001

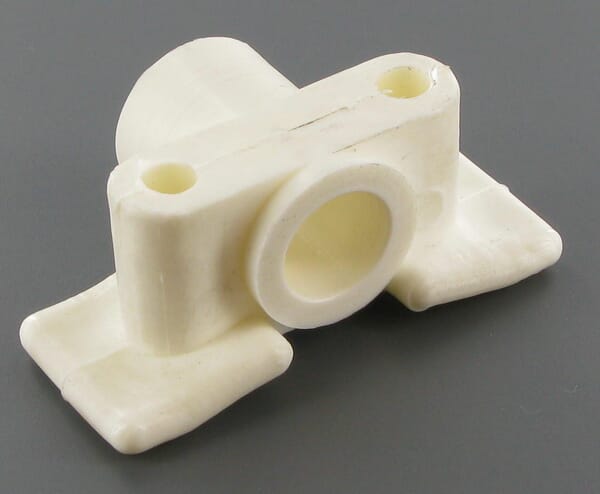

Non Original Support VGVS87N
£1.82 excl.
£2.18 incl.
In stock
Expected to ship on Friday 18 September
BPA000344276

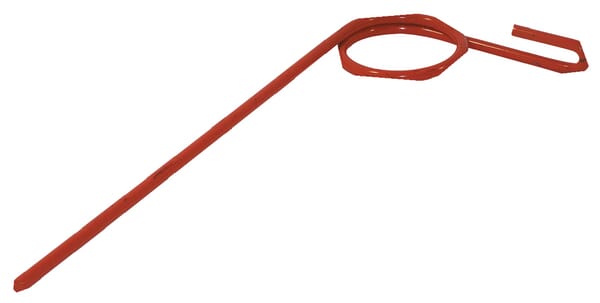

Non Original Nordsten seed tine PH27706Z
£3.40 excl.
£4.08 incl.
In stock
Expected to ship on Friday 18 September
BPA000244731

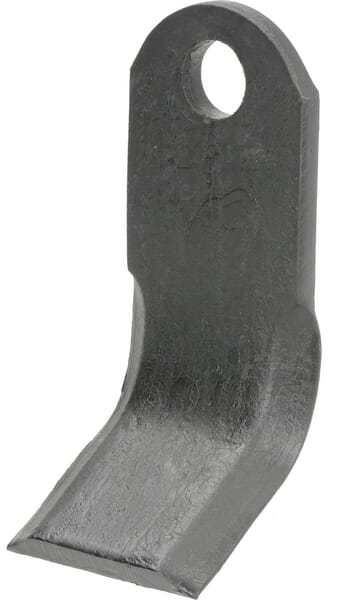

Non Original Knife Y Osma CK293020
£8.68 excl.
£10.42 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000246300

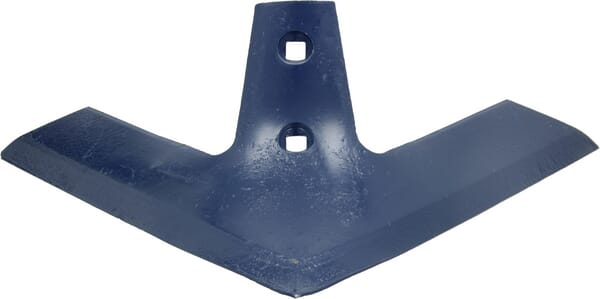

Non Original Duckfoot point 480mm CP4870
