£471.14
excl. VAT
£565.37 incl. VAT
£565.37
incl. VAT
£471.14 excl. VAT
Free shipping
In stock
Expected to ship on Monday 28 September
Product details
| Application | Universal, Truck, Tractor, Construction vehicle |
|---|---|
| Authorisation number | UKCA |
| CISPR standard | 25 Class 3 |
| ECE standard | R6, R7, R112 |
| EN Standard | 13309, 61000-4-2 |
| Function | High beam, Direction indicator, Low beam, Position light, Vehicle Headlights |

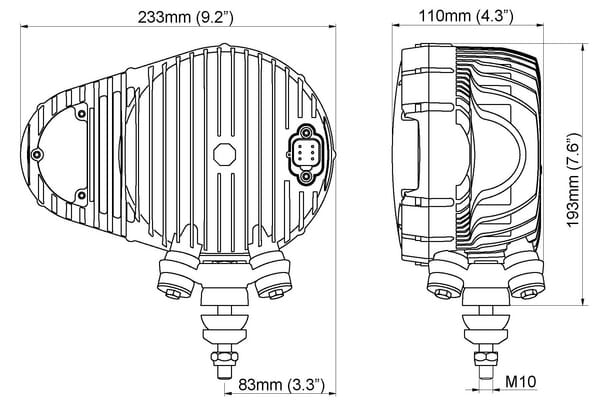

| Height | 193 mm |
| Housing material | Aluminium |
| Insulation class | 68, 6K9K |
| ISO standard | 7637-2, 10605, 9227 240H, 11452, 14982-2, 13766 |
| Length (depth) | 110 mm |
| Lens material | Polycarbonate |
| Light colour | Orange, White |
| Light type | Dual beam |
| Max working temperature | 85 °C |
| Min working temperature | -40 °C |
| Mounting position | Left, Front |
| Mounting type | Bolt on |
| Nominal current | 1.8 A, 3.6 A, 0.9 A, 1.8 A |
| Nominal voltage | 12 V, 24 V |
| Nominal voltage range | 12-24 V |

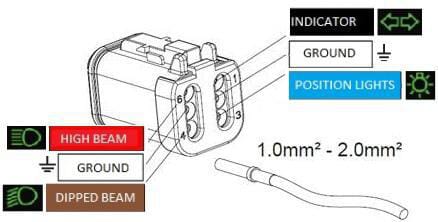

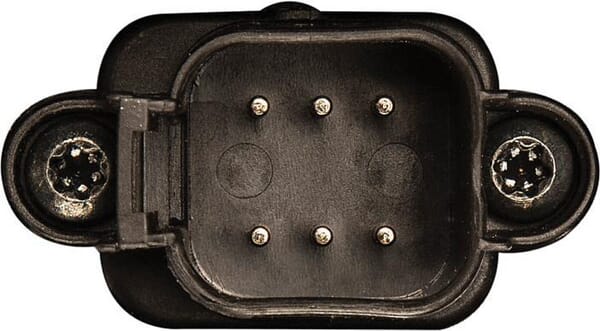

| Plug type | Deutsch 6-pin |
| Product details | LED lights are exposed to dirt, fertilizers, road salt, acids and more., For best performance and long lifetime, the lens and the cooling fins must be cleaned on a regular basis |

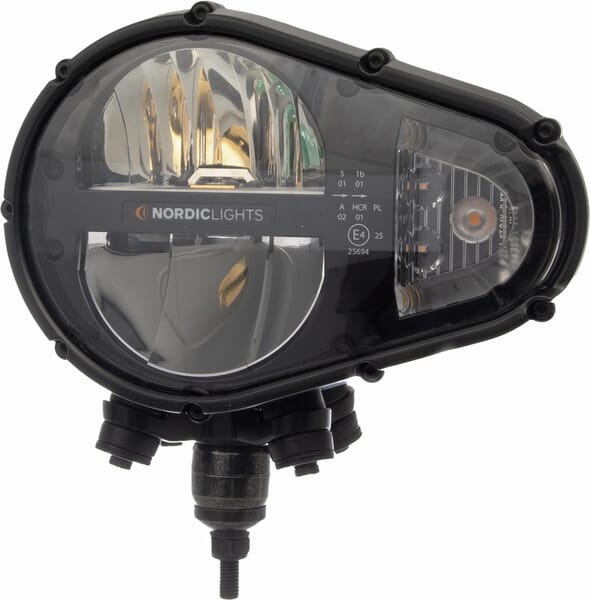

| Series | Sculptor N6002 dual |
| Shape | Oval |
| Shock resistance (G) | 60 |
| Suitable for machine/vehicle brand | Universal |
| Technology | LED |
| Unit | Each |
| Vibration resistance by 24-2000Hz (GRMS) | 15.3 |
| Weight | 2.5 kg |
| Width | 233 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2885 g |
| Dimensions | 310 × 240 × 220 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000209103

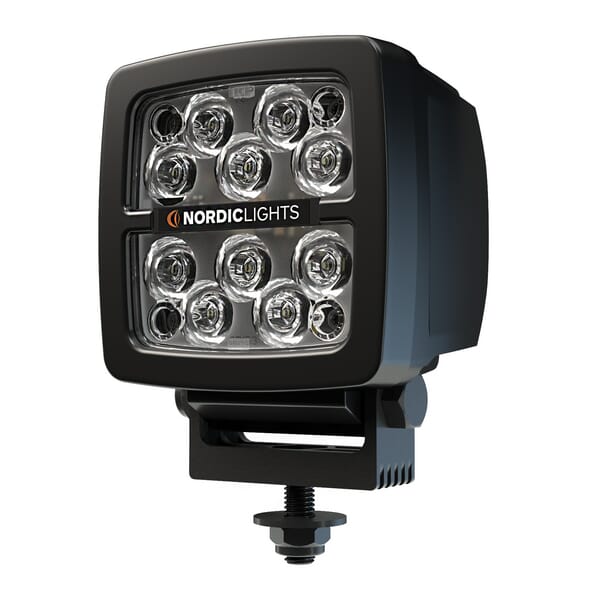

Nordic Lights Work light LED, 42W, 400lm, square, 12/24V, blue, bolt on, Deutsch 2-pin, spot, 10 LED's, Scorpius 400 Blue by 984801B
£102.62 excl.
£123.14 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000209410
Nordic Lights Work light LED, 16W, 1600lm, square, 12/24V, white, bolt on, Deutsch 2-pin, Wide flood, 6 LED's, Scorpius GO 410 by 988201B
£93.37 excl.
£112.04 incl.
In stock
Expected to ship on Monday 28 September
Free shipping
BPA000209421

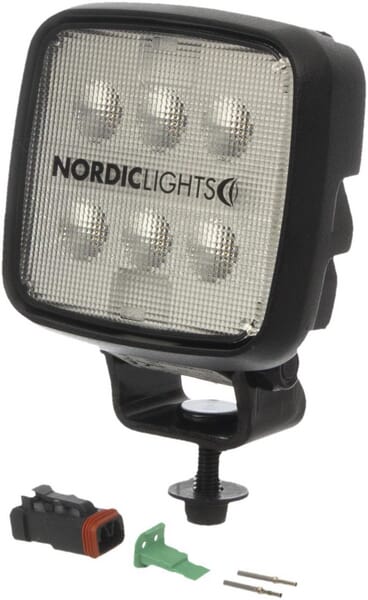

Nordic Lights Work light LED, 28W, 2800lm, square, 12/24V, white, bolt on, Deutsch 2-pin, Wide flood, 6 LED's, Scorpius GO 420 by 988204B
£107.56 excl.
£129.07 incl.
In stock
Expected to ship on Monday 28 September
Free shipping

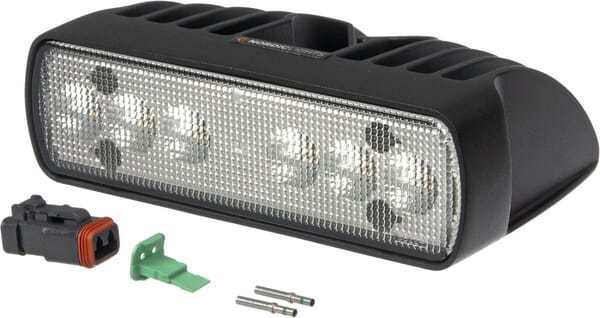

BPA000209321
Nordic Lights Work light LED, 28W, 2700lm, rectangular, 12/24V, transparent, 118.1x156x48mm, Deutsch 2-pin, Flood, 6 LED's, Pictor 620 by 987203B
£132.25 excl.
£158.70 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000209250

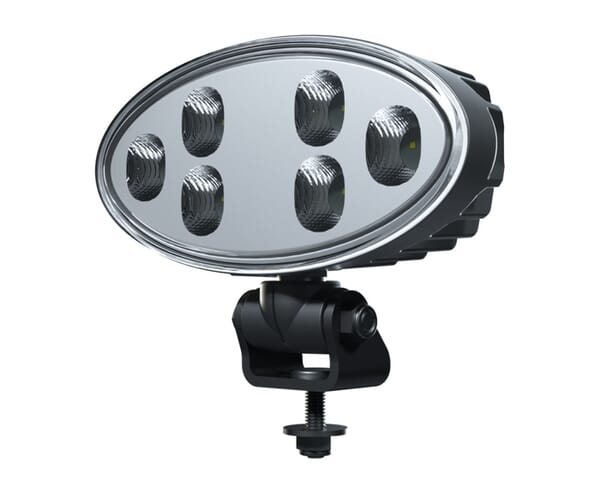

Nordic Lights Work light LED, 32W, 3500lm, oval, 12/24V, white, bolt on, swivel head, 180x126x72mm, Deutsch 2-pin, Flood, 6 LED's, SATO 725 by 985407B
