Roll over image to zoom in · Click to see full view
£2,219.24
excl. VAT
£2,663.09 incl. VAT
£2,663.09
incl. VAT
£2,219.24 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Bypass opening pressure | 5.5 BAR |
|---|---|
| Filter finess | 2 µm |
| Inlet port thread diameter | 3/8 Inch |
| Long description | The Off Line/Filter System, or OLFS for short, can be used in any hydraulic, lubrication and transmission system. The filter unit has its own motor-pump combination. This engine-pump combination takes in oil from the reservoir (or e.g. from the crankcase of an engine). Along the way, the dirty oil is pumped through the filter, filtered, and then pumped back into the tank. The tangible benefits of clean oil translate directly into fewer faults, less wear, longer oil life, extended service intervals and structural cost savings. |
| Manometer port thread diameter | M16 |
| Max flow rate | 2.1 l/min |
| Max working temperature | 80 °C |
| Nominal voltage | 380 V |
| Outlet port thread diameter | 1/2 Inch |
| Product details | Filter housing material: anodised aluminium profile, Entire unit is mounted on a base plate |
| Pros | Leakage due to vibration excluded, Quick and easy to install, Fewer faults, Less wear, Oil lasts longer, Less frequent maintenance, Lower costs, Longer service life, More environmentally friendly |
| Sealing material | Buna-N |
| Separate element code | F29 |
| Total height | 190 mm |
| Total length | 800 mm |
| Total width | 340 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 23480 g |
| Dimensions | 580 × 500 × 230 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000230705

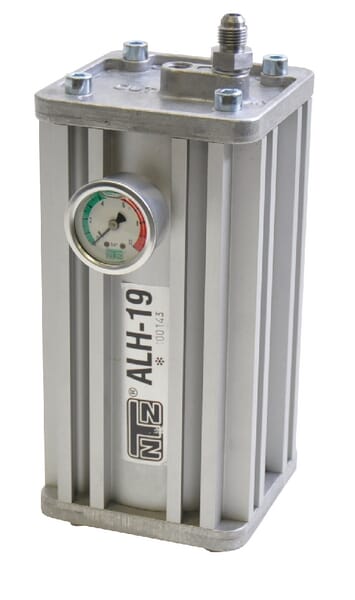

NTF Filter system NTF, ALH19 - 420 bar ALH19
£672.34 excl.
£806.81 incl.
In stock
Expected to ship on Tuesday 29 September
BPA000265079

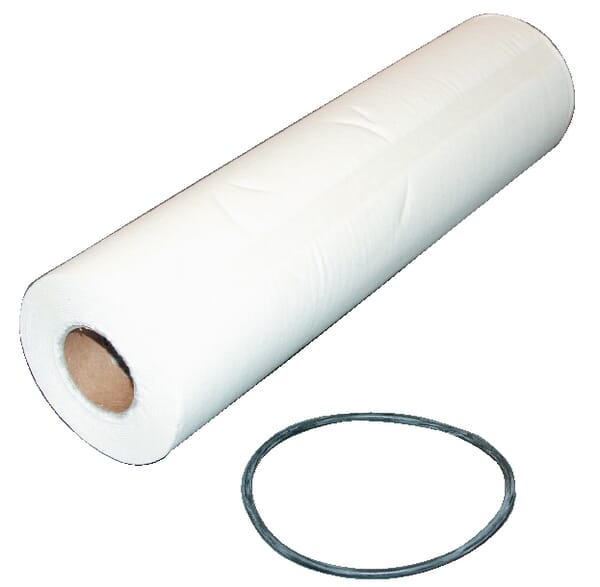

NTF Filter element F29, AL/ALH/ALD/OLFS F29
£31.79 excl.
£38.15 incl.
In stock
Expected to ship on Tuesday 29 September
BPA000151148
NTF Top lid AL series 632712
£77.83 excl.
£93.40 incl.
In stock
Expected to ship on Tuesday 29 September
Free shipping
BPA000227717

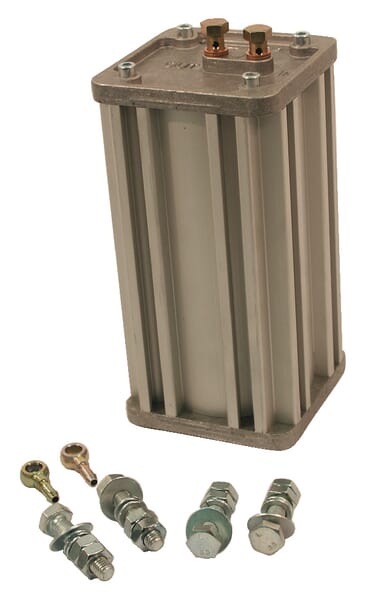

NTF Filter system NTF, AL19 AL19
£318.08 excl.
£381.70 incl.
In stock
Expected to ship on Tuesday 29 September
BPA000266464
NTF Filter element F09, AL/ALH/ALD/OLFS F09
£24.79 excl.
£29.75 incl.
In stock
Expected to ship on Tuesday 29 September
BPA000151151

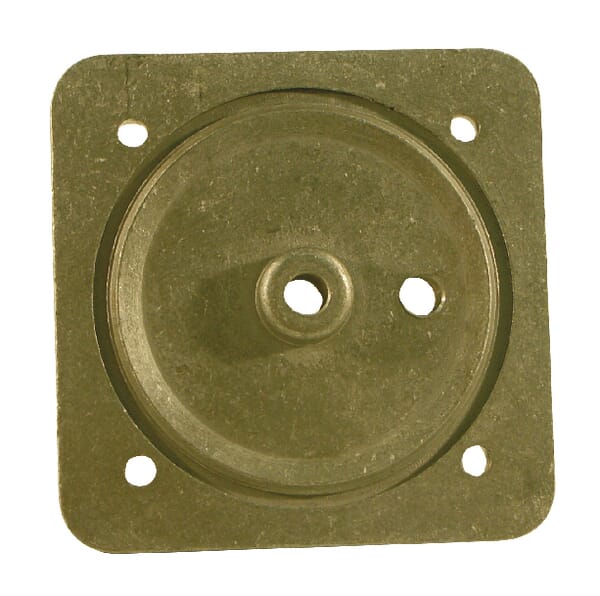

NTF Bottom lid AL series 632720
