£11.83
excl. VAT
£14.20 incl. VAT
£14.20
incl. VAT
£11.83 excl. VAT
In stock
Expected to ship on Monday 28 September
Product details
| Benefits | Secured against unintentional release |
|---|---|
| Details | Multi-function screw with combined cross-head/slot |
| Extra info | 3/4" pipes have an outer diameter of 26,7 mm (according to ASTM) and 26,9 mm (according to ISO/DIN), so this clamp can be used since it has a range from 25 mm to 30 mm. |
| Material | Stainless steel |

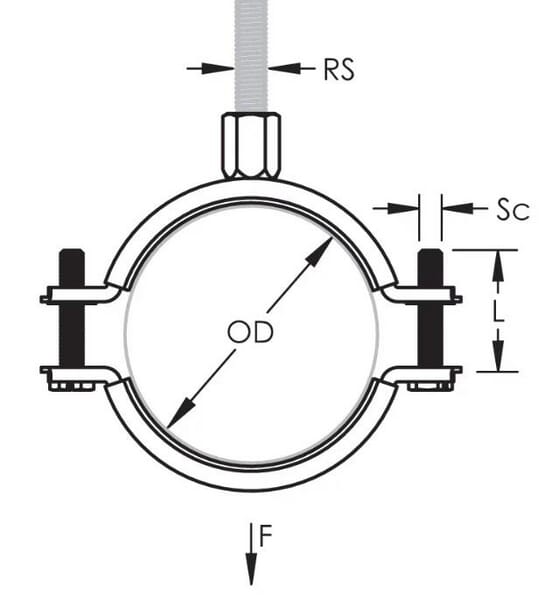

| Max. working diameter | 31 mm |
| Min. working diameter | 25 mm |
| Mounting thread diameter | M16 |
| Properties | Terminal up to 86 mm has an M8 connection and M10 above that, EPDM vibration in accordance with DIN 4109, Temperature resistant from -50°C to +110°C |
| Type | Pipe clamp |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
STO880
Kramp Dowel screw M8 / 7x80mm TX25 round head, STO880
£0.28 excl.
£0.34 incl.
STO8100
Kramp Dowel screw M8 / 7x100mm TX25 round head, STO8100
£0.35 excl.
£0.42 incl.
STO1080
Kramp Dowel screw M10 / 8.9x80mm TX25 round head, STO1080
£0.37 excl.
£0.44 incl.
STO10100

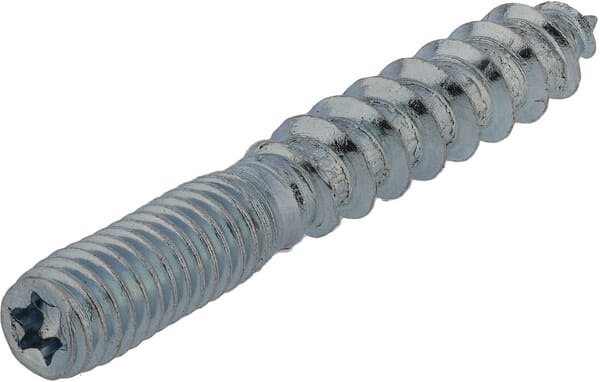

Kramp Dowel screw M10 / 8.9x100mm TX25 round head, STO10100
£0.48 excl.
£0.58 incl.
STO10120
Kramp Dowel screw M10 / 8.9x120mm TX25 round head, STO10120
£0.55 excl.
£0.66 incl.
STO10160
Kramp Dowel screw M10 / 8.9x160mm TX25 round head, STO10160
£0.82 excl.
£0.98 incl.
Logistics
| EAN | 8711893010633 |
|---|---|
| Unit of measure | EA |
| Weight | 65 g |
| Dimensions | 70 × 35 × 25 mm |
| Dangerous goods | No |
