£11.51
excl. VAT
£13.81 incl. VAT
£13.81
incl. VAT
£11.51 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details

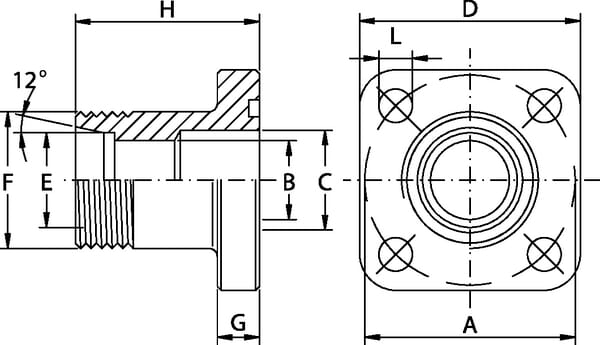

| Connection 1, thread diameter | M22 |
|---|---|
| Connection 1, thread type | Metric |
| Connection 1, type - male/female | Male |
| Connection holes circle diameter | 35 mm |
| Connection holes diameter | 6.4 mm |
| Connection no 1 diameter | 15 mm |
| Height | 30 mm |
| Inside diameter | 12 mm |
| Length | 39 mm |
| Material | Steel |
| Max working pressure | 250 BAR |
| Product details | Connection flanges for gear pumps and motors |
| Unit | Each |
| Weight | 0.1 kg |
| Width | 8 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 139 g |
| Dimensions | 40 × 40 × 30 mm |
| Dangerous goods | No |
You might also like
BPA000288662
Oleo Tecnica Pump flange straight metric GF40LKL22H035
£15.43 excl.
£18.52 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000288656
Oleo Tecnica Pump flange straight metric GF35LKL12H030
£11.83 excl.
£14.20 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000288661
Oleo Tecnica Pump flange straight metric GF40LKL15H035
£15.43 excl.
£18.52 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000288658
Oleo Tecnica Pump flange straight metric GF35LKS16H030
£11.83 excl.
£14.20 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000280734

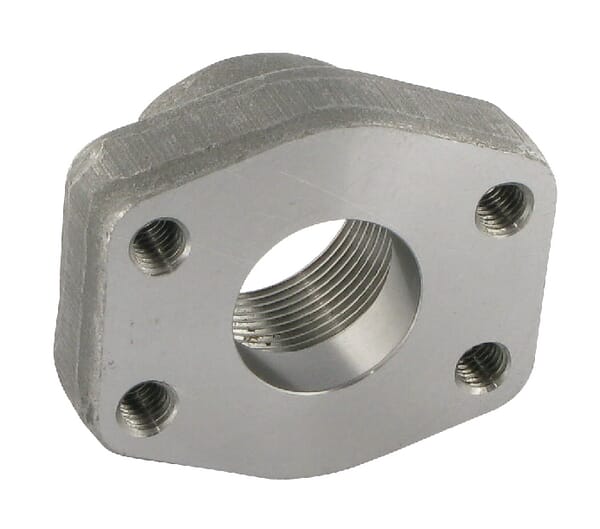

Oleo Tecnica Count.-fl. SAE3000 1-1/2 GFS324GU24
£24.18 excl.
£29.02 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000280723

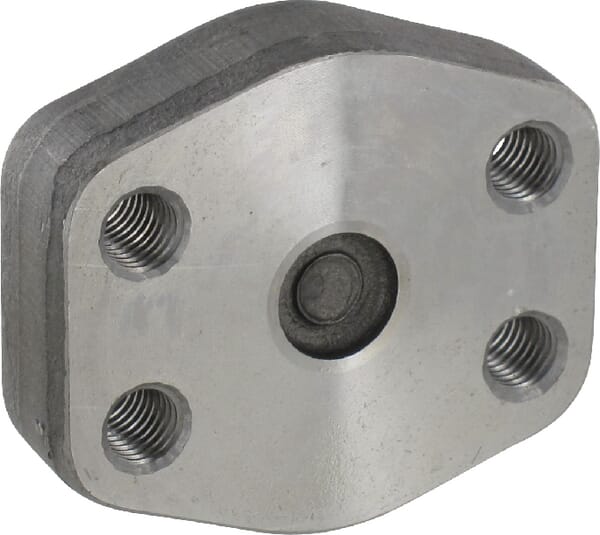

Oleo Tecnica Blind counter flange SAE GFC662M
