£35.98
excl. VAT
£43.18 incl. VAT
£43.18
incl. VAT
£35.98 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

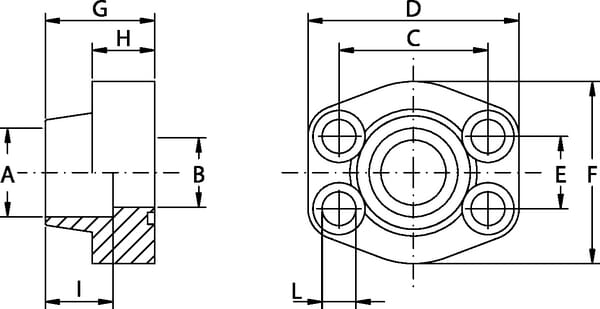

| AConnection no 1 diameter | 42.8 mm |
|---|---|
| BInside diameter | 32 mm |
| CFlange mounting holes distance | 66.68 mm |
| Connection 1, thread diameter | 1-1/4 Inch |
| Connection 1, type | Stand pipe |
| Connection 1, type - male/female | n/a |
| Connection holes diameter | 15 mm |
| DLength | 95 mm |
| EFlange mounting holes distance 2 | 31.75 mm |
| Flange mounting holes number | 4 |
| FWidth | 78 mm |
| GHeight | 45 mm |
| Includes | Flange |
| Material | Steel |
| Max working pressure | 414 BAR |

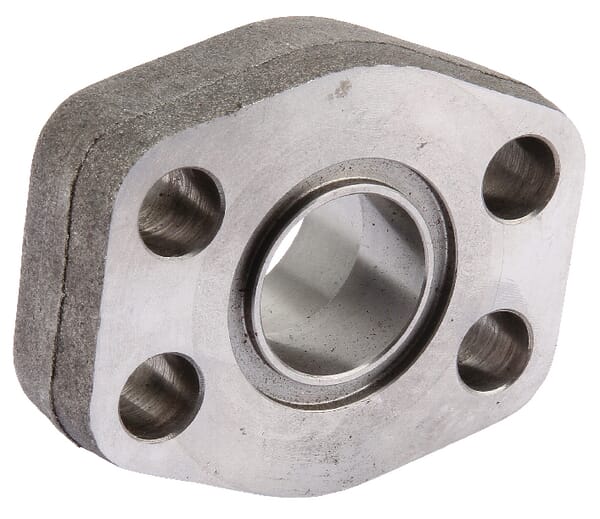

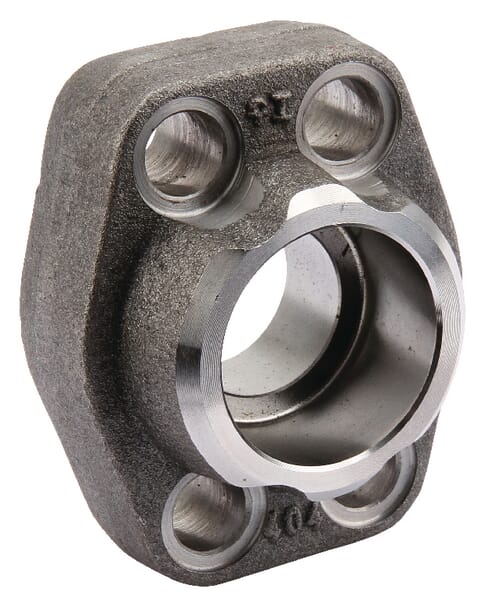

| Product details | Welding flange SAE 6000, 420 bar |
| Unit | Each |
| Weight | 1.13 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1125 g |
| Dimensions | 95 × 75 × 45 mm |
| Dangerous goods | No |
You might also like
BPA000226039

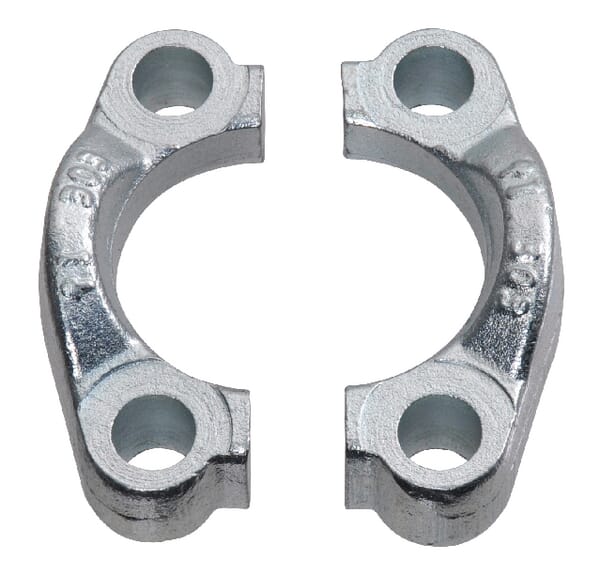

Oleo Tecnica Cut split flagne SAE AFH312
£5.60 excl.
£6.72 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000226032

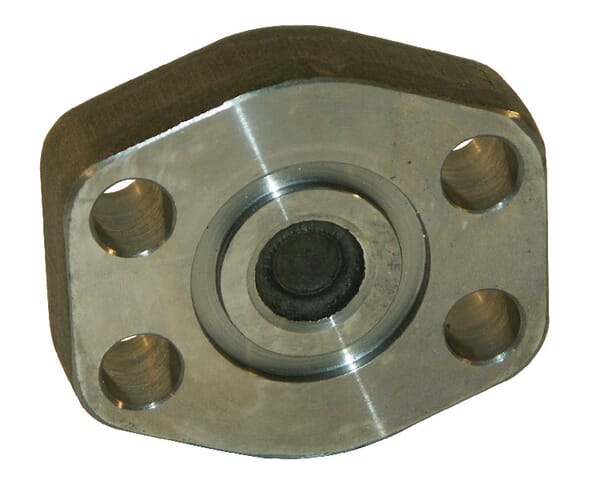

Oleo Tecnica Flange SAE 6000PSI 1 1/4 BSP AFC620
£25.34 excl.
£30.41 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000254297

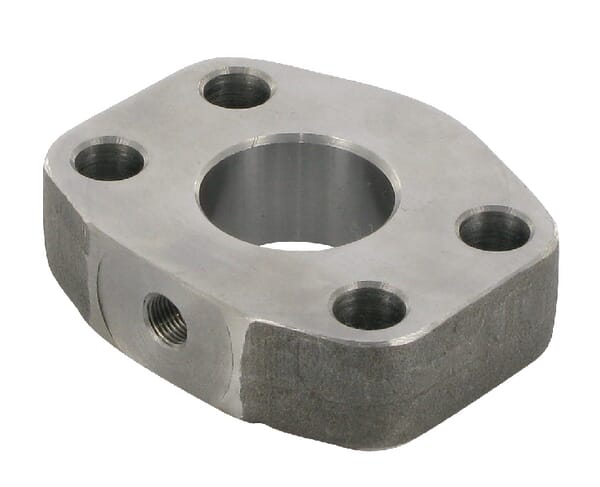

Oleo Tecnica Flange measuring point SAE D102G18
£27.20 excl.
£32.64 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000358678

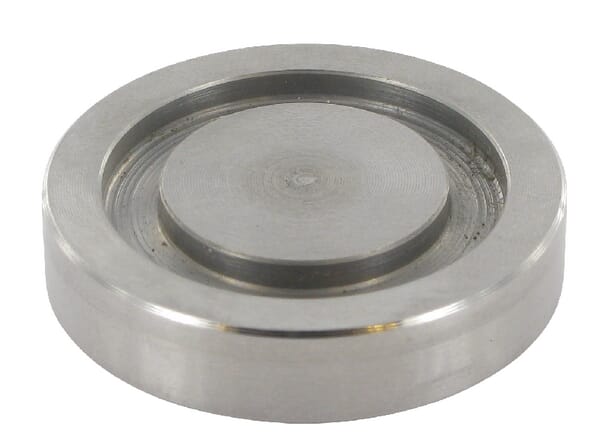

Oleo Tecnica Blindflange SAE 3000 2 1/2" SFS340STC
£36.43 excl.
£43.72 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000226046

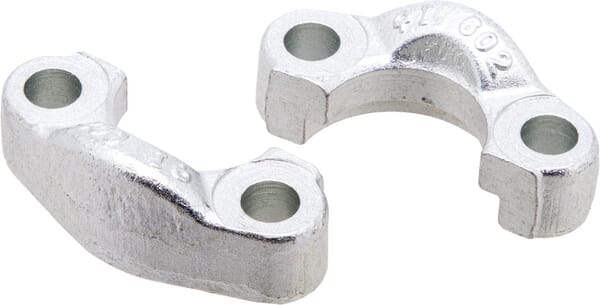

Oleo Tecnica SAE split flange 6000-3/4 AFH612
