Product details
| Bore type code | D |
|---|---|
| Connection thread diameter | 1/2 Inch |
| Connection type | Thread |
| Flow rate | 50 l/min |
| GHousing width | 160 mm |
| Housing material | Cast iron |
| Long description | Diverter valve DH/8 |
| Max medium temperature | 100 °C |
| Max working pressure | 250 BAR |
| Min medium temperature | -20 °C |
| Number of ports | 8 |
| Number of positions | 3 |

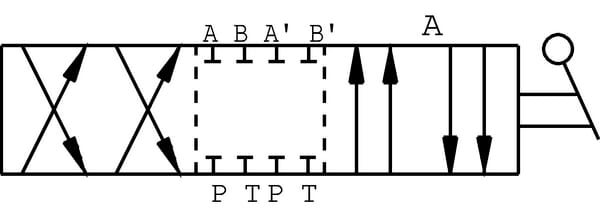

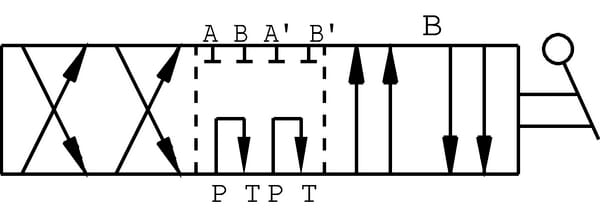

| Technical info | With this 8-way valve one can choose a flow from P to A and from B to T or from P to B and from A to T of two separate oil flows. Operation is manual (rotating). It consists, in fact, of two 4-way valves DH / 4, which are linked mechanically. Suited for in-line mounting. |
| Type | Manual valve |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3602 g |

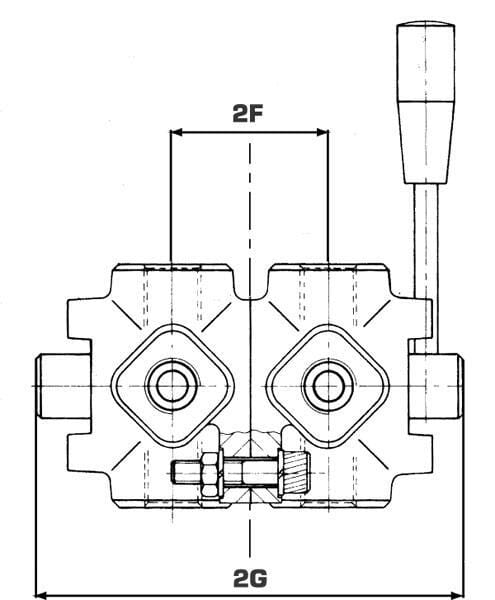

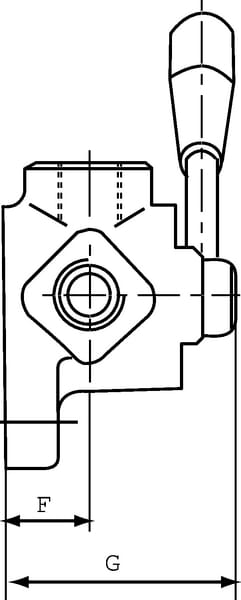

| Dimensions | 160 × 141 × 139 mm |
| Dangerous goods | No |
