£429.79
excl. VAT
£515.75 incl. VAT
£515.75
incl. VAT
£429.79 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Displacement | 12 cm³ |
|---|---|
| Includes | Pump part, Control lever not included |
| Long description | Technical information:, To be used for middle pressure, Other remarks:, Seals, Order no.: with nr. PMSD 9-12AFD, PMSD 9-25AFD, PMSD 9-45AFD |
| Max. delivery pressure | 300 BAR |
| Mounting holes distance in length | 180 mm |
| Mounting holes distance in width | 90 mm |
| Product details | Double-acting hand pumps, the pump can both push and pull oil to the lever, Per stroke (pushing and pulling) the pumps move 12, 25 or 45cc (cm³) of oil, respectively, Suitable for use in double-acting applications, For medium pressure, PMS(D) 12 cc : piston diameter Ø14 x 173 mm, PMS(D) 25 cc : piston diameter Ø17 x 148 mm, PMS(D) 45 cc : piston diameter Ø22 x 157 mm |
| Relief valve | No |
| Reservoir capacity | 10 l |
| Suitable for application type | Double acting cylinders |
| Tank length | 268 mm |
| Total length | 390 mm |
| Total width | 208 mm |
| Unit | Each |

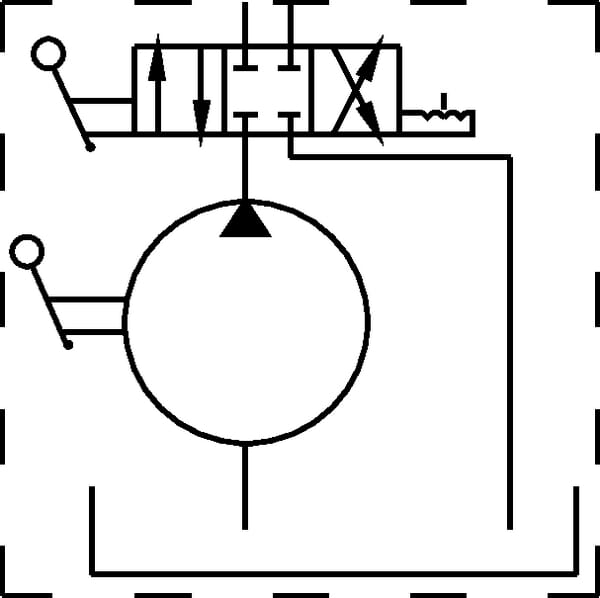

| Valve type | 4/3 valve |
| Working type | Double acting |
Compatible accessories
Parts and components that work with this product.
PMS912SCH
OMFB Hinge piece for PMS/PMSD 12/25/45/50 PMS912SCH
£31.98 excl.
£38.38 incl.
PMS9514550
OMFB Tank housing for 10L pump PMS PMS9514550
£127.42 excl.
£152.90 incl.
PMS96901332
OMFB Handle for PMS handpump PMS96901332
£14.47 excl.
£17.36 incl.
PMSD912AFD2004
OMFB Seal kit PMSD12 from 2004 PMSD912AFD2004
£26.60 excl.
£31.92 incl.
PMSD912AFD
OMFB Gasket set PMSD 12 PMSD912AFD
£35.28 excl.
£42.34 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 5880 g |
| Dimensions | 557 × 243 × 236 mm |
| Dangerous goods | No |
