£263.71
excl. VAT
£316.45 incl. VAT
£316.45
incl. VAT
£263.71 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 24 September
Product details
| Displacement | 45 cm³ |
|---|---|
| Includes | Pump part, Control lever not included |
| Long description | Technical information:, To be used for middle pressure, Other remarks:, Seals, Order no.: with nr. PMSD 9-12AFD, PMSD 9-25AFD, PMSD 9-45AFD |
| Max. delivery pressure | 270 BAR |
| Product details | Double-acting hand pumps, the pump can both push and pull oil to the lever, Per stroke (pushing and pulling) the pumps move 12, 25 or 45cc (cm³) of oil, respectively, Suitable for use in double-acting applications, For medium pressure, PMS(D) 12 cc : piston diameter Ø14 x 173 mm, PMS(D) 25 cc : piston diameter Ø17 x 148 mm, PMS(D) 45 cc : piston diameter Ø22 x 157 mm |
| Relief valve | Yes |
| Reservoir capacity | 0 l |
| Suitable for application type | Double acting cylinders |
| Unit | Each |
| Valve type | 4/3 valve |
| Working type | Double acting |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3253 g |

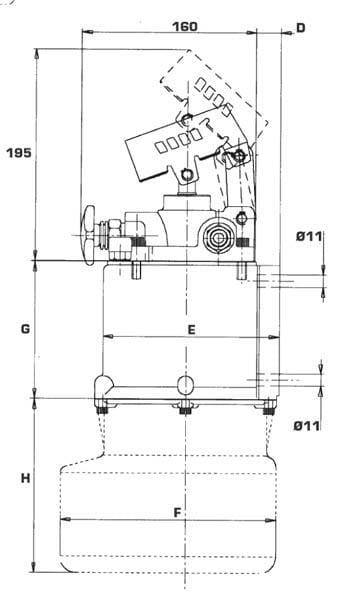

| Dimensions | 305 × 140 × 135 mm |
| Dangerous goods | No |
