£280.80
excl. VAT
£336.96 incl. VAT
£336.96
incl. VAT
£280.80 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 24 September
Product details
| Displacement | 45 cm³ |
|---|---|
| Includes | Pump part, Control lever not included |
| Long description | Technical information:, To be used for middle pressure, Other remarks:, Seals, Order no.: with nr. PMS 9-12AFD, PMS 9-25AFD, PMS 9-45AFD |
| Max. delivery pressure | 270 BAR |
| Mounting holes distance in length | 180 mm |
| Mounting holes distance in width | 90 mm |
| Product details | Double-acting hand pumps, the pump can both push and pull oil to the lever., Per stroke (pushing and pulling) the pumps move 12, 25 or 45cc (cm³) of oil, respectively., Suitable for use in single-acting applications., To be used for medium pressure, PMS 12 cc : piston diameter Ø14 x 173 mm, PMS 25 cc : piston diameter Ø17 x 148 mm, PMS 45 cc : piston diameter Ø22 x 157 mm |
| Relief valve | No |
| Reservoir capacity | 3 l |
| Suitable for application type | Single acting cylinders |
| Tank length | 72 mm |
| Total length | 194 mm |
| Total width | 208 mm |
| Unit | Each |
| Valve type | Lowering valve |
| Working type | Single acting |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 5574 g |
| Dimensions | 315 × 250 × 250 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340930

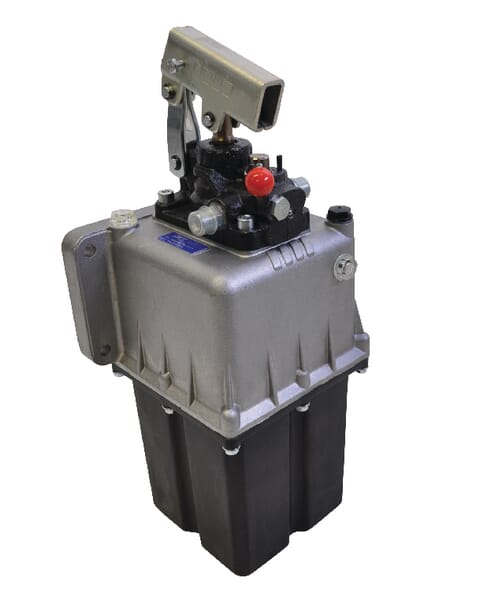

OMFB Hand pump PMSD 45/5 VP PMSD4505VP
£368.77 excl.
£442.52 incl.
In stock
Expected to ship on Thursday 24 September
BPA000340899

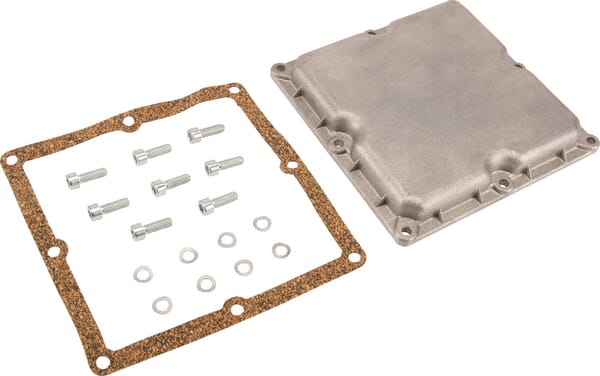

OMFB Cover alu for 2L tank PMS/PMSD PMS9514569A
£59.99 excl.
£71.99 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000043715
OMFB Side mounting kit 480x650 135903BPLX6
£329.97 excl.
£395.96 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340892
OMFB Shut-off valve PMS PMS9500117
£51.52 excl.
£61.82 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000340913

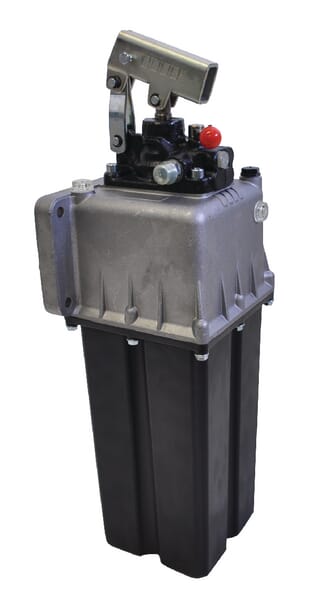

OMFB Hand pump PMSD 12/7 PMSD1207
£339.31 excl.
£407.17 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340863

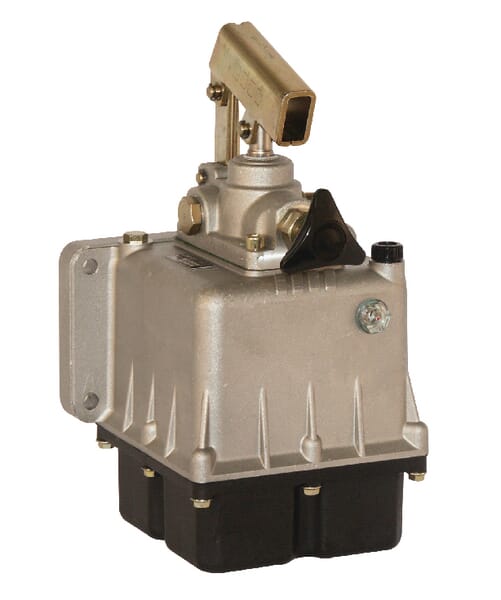

OMFB Hand pump PMS 12/10 PMS1210
