£301.51
excl. VAT
£361.81 incl. VAT
£361.81
incl. VAT
£301.51 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 24 September
Product details
| Displacement | 45 cm³ |
|---|---|
| Includes | Pump part, Control lever not included |
| Long description | Technical information:, To be used for middle pressure, Other remarks:, Seals, Order no.: with nr. PMS 9-12AFD, PMS 9-25AFD, PMS 9-45AFD |
| Max. delivery pressure | 270 BAR |

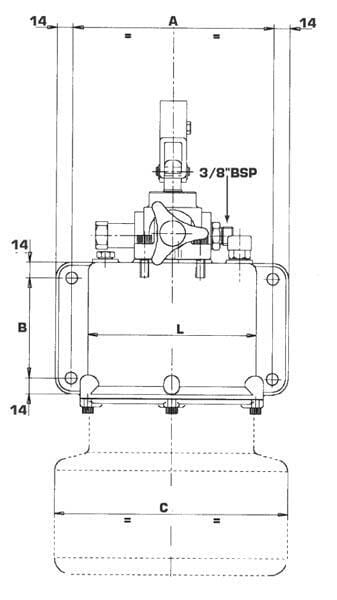

| Mounting holes distance in length | 180 mm |
| Mounting holes distance in width | 90 mm |
| Product details | Double-acting hand pumps, the pump can both push and pull oil to the lever., Per stroke (pushing and pulling) the pumps move 12, 25 or 45cc (cm³) of oil, respectively., Suitable for use in single-acting applications., To be used for medium pressure, PMS 12 cc : piston diameter Ø14 x 173 mm, PMS 25 cc : piston diameter Ø17 x 148 mm, PMS 45 cc : piston diameter Ø22 x 157 mm |
| Relief valve | No |
| Reservoir capacity | 5 l |
| Suitable for application type | Single acting cylinders |

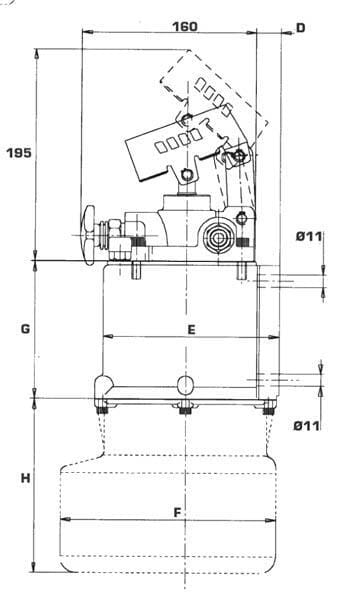

| Tank length | 182 mm |
| Total length | 304 mm |
| Total width | 208 mm |
| Unit | Each |
| Valve type | Lowering valve |
| Working type | Single acting |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 5443 g |
| Dimensions | 440 × 220 × 214 mm |
| Dangerous goods | No |
