£141.94
excl. VAT
£170.33 incl. VAT
£170.33
incl. VAT
£141.94 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Height | 5.6 mm |
|---|---|
| Long description | The Optibelt OMEGA HP high performance timing belt is specially designed for heavily loaded, high speed drives. The further developed belt with improved materials are the basis for a very high level of performance. It is a timing belt that meets the highest demands and is stronger, more compact and more resistant to higher speeds than the conventional OMEGA timing belt. |
| Material | Chloroprene rubber [CR] |
| Max working speed | 40 m/s |
| Max. working temperature | 100 °C |
| Min. working temperature | -30 °C |
| Number of teeth | 140 |
| Pitch length | 1120 mm |
| Product details | High performance timing belts for HTD and RPP pulleys |
| Profile | 8M |
| Pros | Long durability, Low noise level, Temperature resistant, Not electrically conductive, Oil resistant, High efficiency |
| Teeth height | 3.2 mm |
| Teeth pitch | 8 mm |
| Unit | Each |
| Weight | 0.29 kg/m |
| Width | 50 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 320 g |
| Dimensions | 390 × 175 × 50 mm |
| Dangerous goods | No |
You might also like
BPA000086907

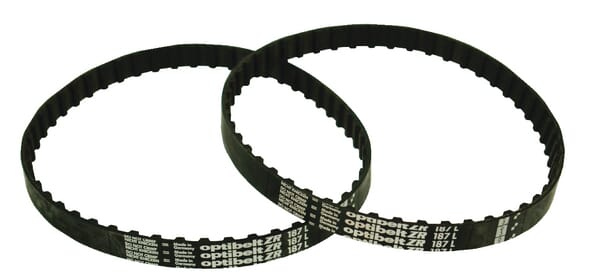

Optibelt Timing belt L 86 teeth 32.25x1/2" / 819.2x12.70mm 322L050
£19.96 excl.
£23.95 incl.
In stock
Expected to ship on Friday 18 September
BPA000228675
Optibelt V-belt set (2) AP1004442
£88.71 excl.
£106.45 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000227801

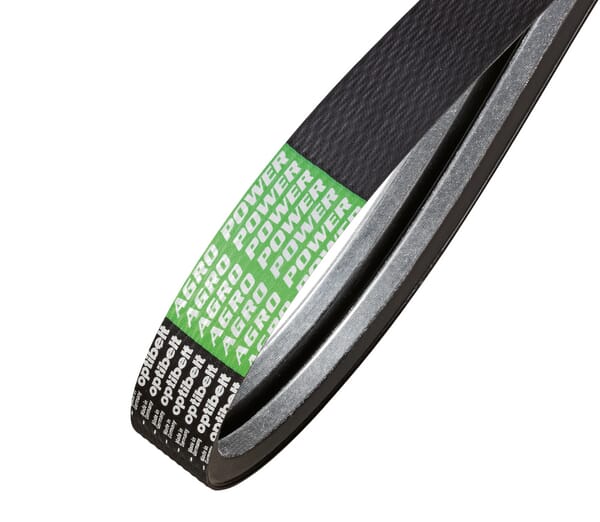

Optibelt Power belt AP1001655
£183.69 excl.
£220.43 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000383268
Optibelt V-belt C63 22x1600 VB221600
£31.25 excl.
£37.50 incl.
In stock
Expected to ship on Friday 18 September
BPA000368250

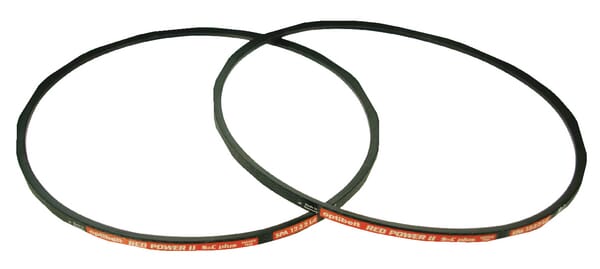

Optibelt V-belt SPB 17x3150 Red-power SPB3150RP
