£55.17
excl. VAT
£66.20 incl. VAT
£66.20
incl. VAT
£55.17 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
About this product

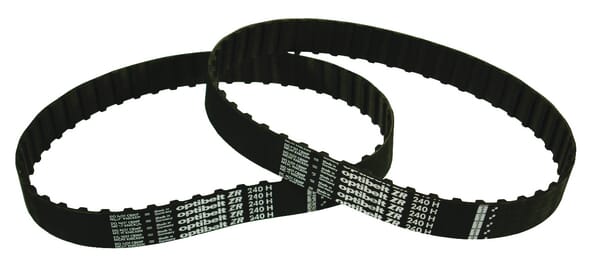

A timing belt with H profile, 102 teeth, and pitch length of 1295.4 mm, supplied as a single piece. The belt measures 25.4 mm in width and 4.3 mm in height, with a teeth pitch of 12.7 mm. Manufactured from neoprene, the belt is rated for a maximum working speed of 40 m/s and operating temperatures between -30 °C and 100 °C. The belt weighs approximately 129 g and is suitable for garden tools, hand-operated machinery, packaging machines, and transport technology applications. It is designed for even power transmission with low bearing load and offers high flexibility, though it has limited resistance to oil, heat, and cold. The product carries EAN 4014486004168.
Product details
| Height | 4.3 mm |
|---|---|
| Long description | Timing belts ZR - type H - pitch 9,525 mm width 1", Even power transmission, Low bearing load, Garden tools, Hand-operated machinery, Packaging machines, Transport technology, High flexibility, Limited resistance to oil, heat and cold |
| Material | Neoprene |
| Max working speed | 40 m/s |
| Max. working temperature | 100 °C |
| Min. working temperature | -30 °C |
| Number of teeth | 102 |
| Pitch length | 1295.4 mm |
| Product details | Limited oil, heat and cold resistant |

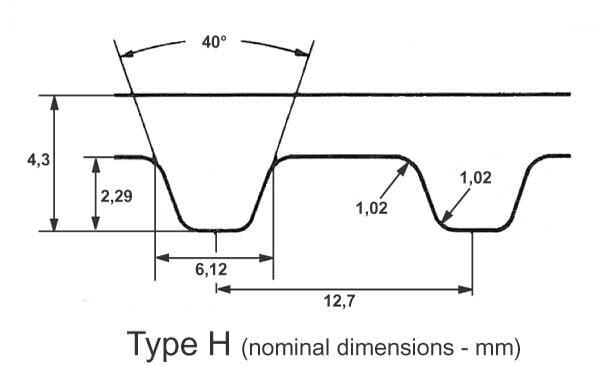

| Profile | H |
| Pros | Low bearing load, Even power distribution, High flexibility, Maintenance-free, Large performance range |
| Teeth pitch | 12.7 mm |
| Unit | Each |
| Weight | 0.1 kg/m |
| Width | 25.4 mm |
Logistics
| EAN | 4014486004168 |
|---|---|
| Unit of measure | EA |
| Weight | 129 g |
| Dimensions | 155 × 155 × 75 mm |
| Dangerous goods | No |
You might also like
BPA000404310

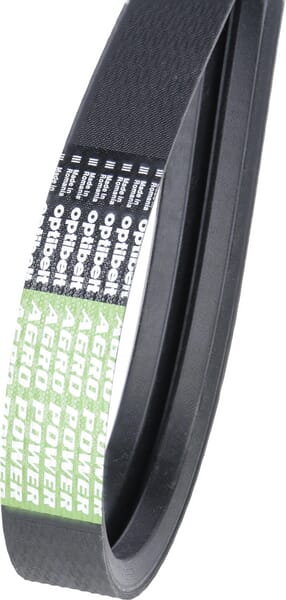

Optibelt Power belt Z103845AB
£99.97 excl.
£119.96 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000228779

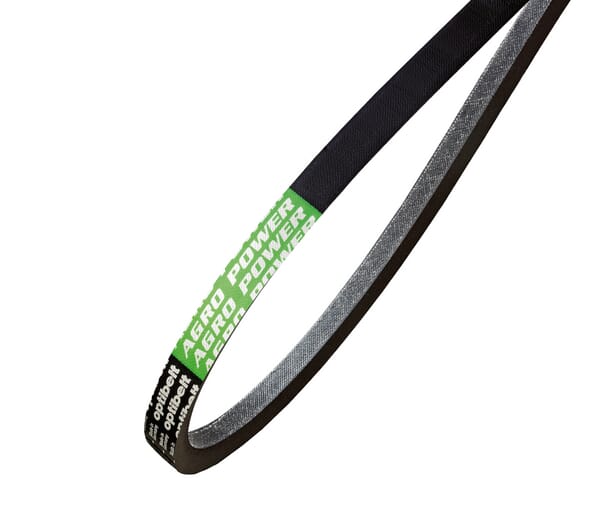

Optibelt V-belt AP1005509
£11.90 excl.
£14.28 incl.
In stock
Expected to ship on Friday 18 September
BPA000227952
Optibelt V-belt AP1000256
£56.41 excl.
£67.69 incl.
In stock
Expected to ship on Friday 18 September
BPA000367256

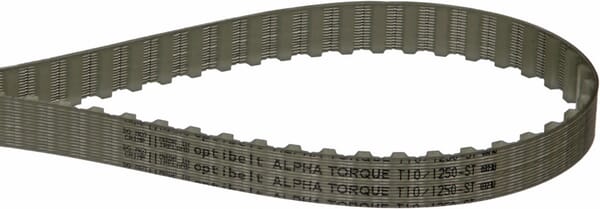

Optibelt Timing belt T10 125 teeth 1250x16mm T10125016
£36.33 excl.
£43.60 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327312
Optibelt V-Belt C section, Open ended OEC22
£150.40 excl.
£180.48 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000228613

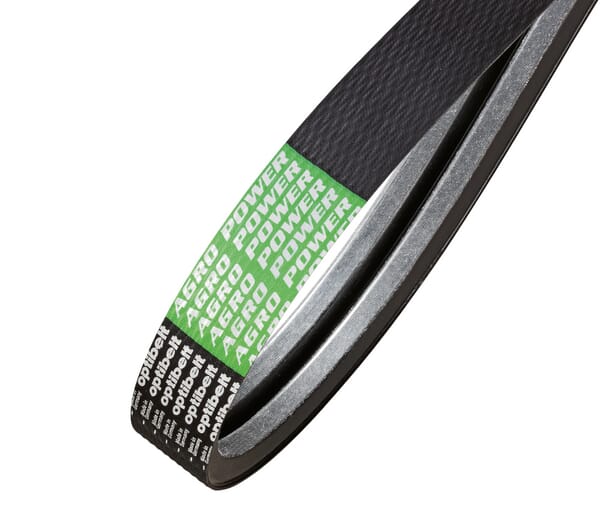

Optibelt Powerbelt AP1004051
£365.73 excl.
£438.88 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000053201

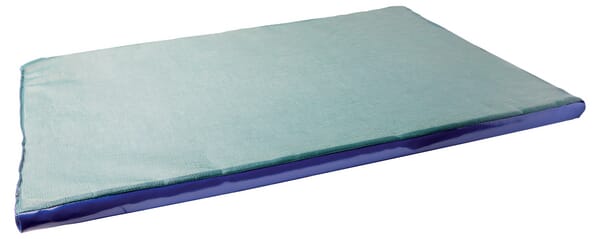

Unbranded Disinfection mat 1200 x 1,000 x 30 mm 1640452025
£80.94 excl.
£97.13 incl.
In stock
Expected to ship on Friday 18 September
BPA000405104
GLT/LHG Bearing bush 15x22x30mm ZB152230SINT
£7.59 excl.
£9.11 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000398584

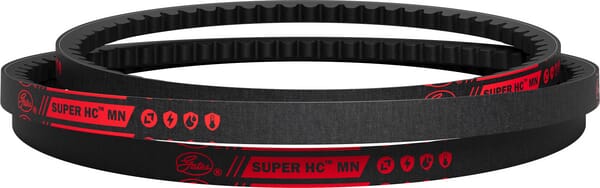

Gates V-belt XPB1800/5VX713 SUPERHC MN XPB1800GA
