£8.63
excl. VAT
£10.36 incl. VAT
£10.36
incl. VAT
£8.63 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Height | 2.3 mm |
|---|---|

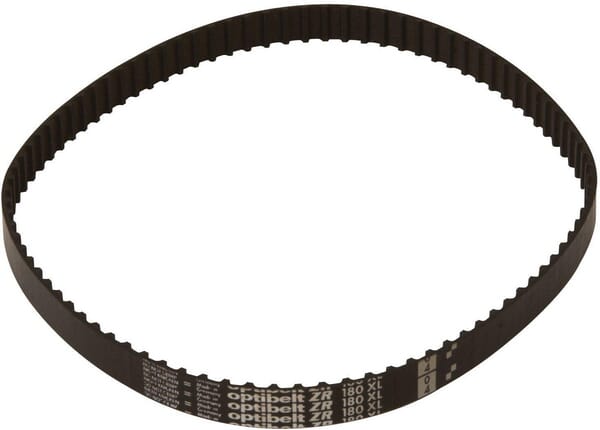

| Long description | Optibelt ZR timing belts are high-quality chloroprene belts with highly flexible fibreglass tensioning elements and an abrasion-resistant protective fabric. The timing belts are used in synchronous drives in transport technology, packaging machines, hand machines and gardening machines, among others. It ensures even power transmission and low load on bearings and, due to its high pliability, is very suitable for extremely small pulley diameters. |
| Material | Neoprene |
| Max working speed | 60 m/s |
| Max. working temperature | 100 °C |
| Min. working temperature | -30 °C |
| Number of teeth | 105 |
| Pitch length | 533.4 mm |
| Product details | Limited oil, heat and cold resistant |

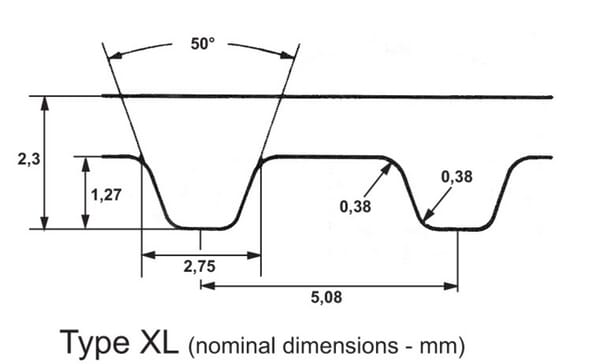

| Profile | XL |
| Pros | Low bearing load, Even power distribution, High flexibility, Maintenance-free, Large performance range |
| Teeth pitch | 5.08 mm |
| Unit | Each |
| Weight | 0.02 kg/m |
| Width | 9.52 mm |
Logistics
| EAN | 4014486028584 |
|---|---|
| Unit of measure | EA |
| Weight | 4 g |
| Dimensions | 121 × 4 × 20 mm |
| Dangerous goods | No |
You might also like

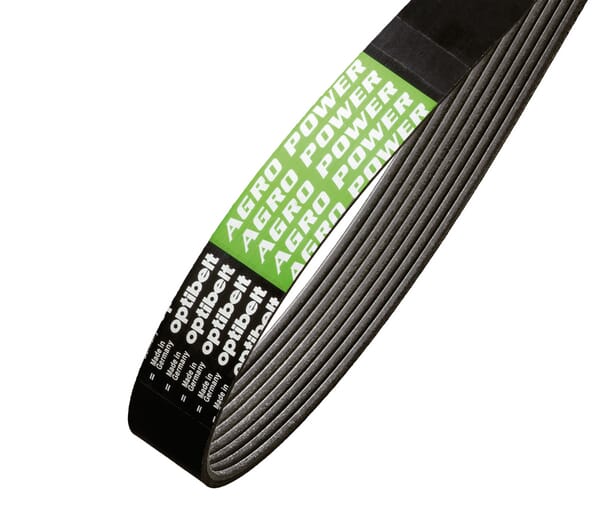

BPA000228406
Optibelt Ribbed belt AP1002623
£12.32 excl.
£14.78 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000311939

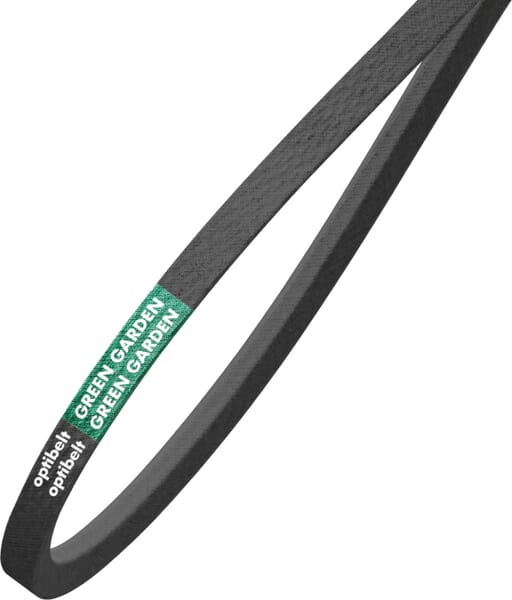

Optibelt V-belt 13x1594mm OD LG2000873
£20.30 excl.
£24.36 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000311529
Optibelt V-belt 1/2"x97", 12.7x2460mm LG2000207
£22.27 excl.
£26.72 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000365248

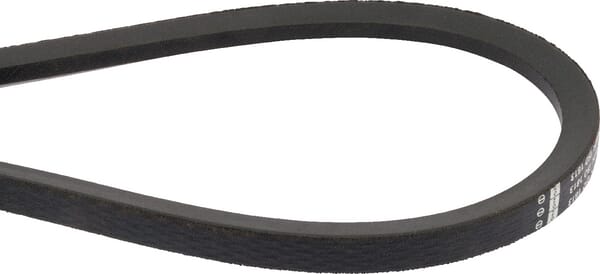

Optibelt V-belt SPZ 10x1562 SPZ1562
