£6.57
excl. VAT
£7.88 incl. VAT
£7.88
incl. VAT
£6.57 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Height | 2.3 mm |
|---|---|

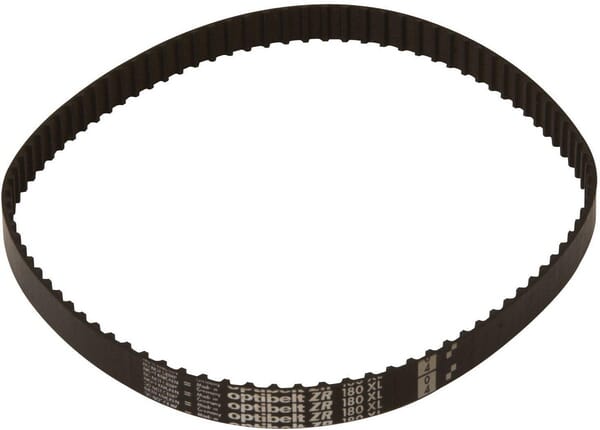

| Long description | Optibelt ZR timing belts are high-quality chloroprene belts with highly flexible fibreglass tensioning elements and an abrasion-resistant protective fabric. The timing belts are used in synchronous drives in transport technology, packaging machines, hand machines and gardening machines, among others. It ensures even power transmission and low load on bearings and, due to its high pliability, is very suitable for extremely small pulley diameters. |
| Material | Neoprene |
| Max working speed | 60 m/s |
| Max. working temperature | 100 °C |
| Min. working temperature | -30 °C |
| Number of teeth | 55 |
| Pitch length | 279.4 mm |
| Product details | Limited oil, heat and cold resistant |

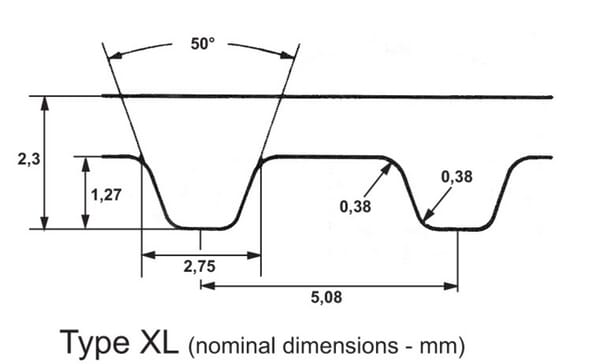

| Profile | XL |
| Pros | Low bearing load, Even power distribution, High flexibility, Maintenance-free, Large performance range |
| Teeth pitch | 5.08 mm |
| Unit | Each |
| Weight | 0.02 kg/m |
| Width | 9.52 mm |
Logistics
| EAN | 4014486026252 |
|---|---|
| Unit of measure | EA |
| Weight | 6 g |
| Dimensions | 95 × 95 × 10 mm |
| Dangerous goods | No |
You might also like
BPA000310526
Optibelt V-belt 1/2", 13x1422mm ID LG2000054
£16.32 excl.
£19.58 incl.
In stock
Expected to ship on Friday 18 September
BPA000196330
Optibelt Timing belt 8M 238 teeth 1904x20mm 8M190420
£66.31 excl.
£79.57 incl.
In stock
Expected to ship on Friday 18 September
BPA000311963
Optibelt Double sided belt AA105 LG2000996
£77.90 excl.
£93.48 incl.
In stock
Expected to ship on Friday 18 September
BPA000237938

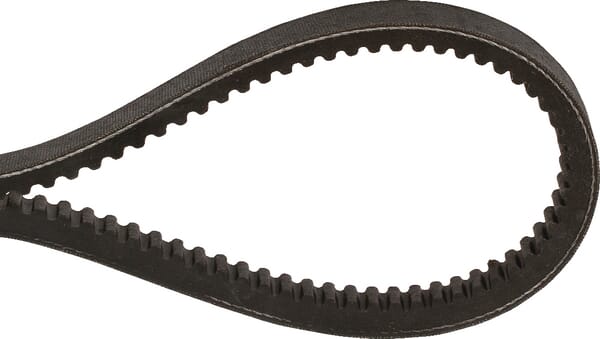

Optibelt V-belt BX55 17x1440 BX171440
£32.40 excl.
£38.88 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000020645

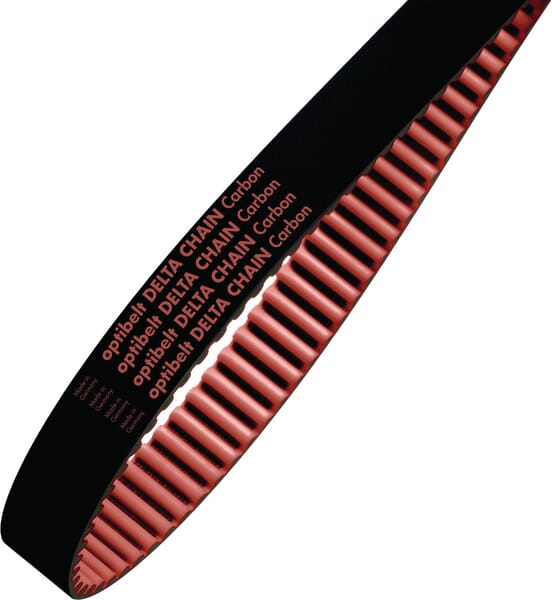

Optibelt Timing belt 1000 8MDC 21 10008MDC21
£234.30 excl.
£281.16 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000398775

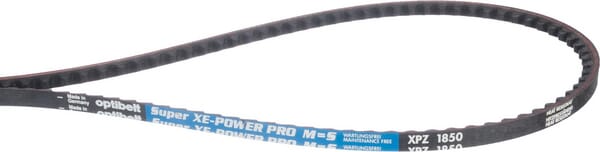

Optibelt V-belt super XE power XPZ1850XEP
