£15.51
excl. VAT
£18.61 incl. VAT
£18.61
incl. VAT
£15.51 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Cone angle side 2 | 24 ° |
|---|---|
| Connection 1, thread diameter | M18 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type code | DKOL |
| Connection 1, type - male/female | Male |
| Connection 2, centre to end distance | 24 mm |
| Connection 2, diameter | 12 mm |
| Connection 2, thread diameter | M18 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 17.0 mm |
| Connection no 1 center to end distance | 29.5 mm |
| Connection no 1 diameter | 12 mm |
| Connection no 1 wrench size | 22.0 mm |
| Includes | Coupling with pre-assembled union nut with O-ring, Without cutting rings and nuts |
| Max working pressure | 400 BAR |

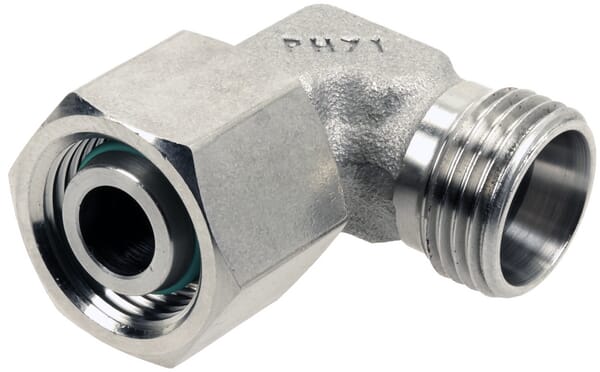

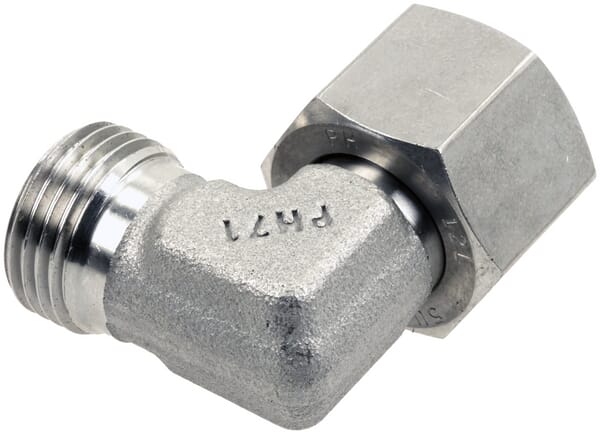

| Product details | Bend 90°, Metric cutting ring fitting, Metric pre-assembled union nuts with cone and FPM O-ring, Position adjustable, Stainless steel: AISI 316 ti, Temperature range: -20°C to +200°C, When fitting stainless steel parts, grease the threads with ceramic, teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for extreme temperatures, Food-safe, Durable |
| Seal material | FKM |
| Series connection 1 | 12L |
| Shape | Elbow 90° |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 76 g |
| Dimensions | 45 × 40 × 30 mm |
| Dangerous goods | No |
You might also like
BPA000358655
PH Hydraulik Ferrule SFPFR708SS
£8.43 excl.
£10.12 incl.
In stock
Expected to ship on Thursday 24 September
BPA000237837
PH Hydraulik Ball valve 20S SS BVM20SSS
£82.50 excl.
£99.00 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000341372
PH Hydraulik Banjo insert DN06-diameter 10 SS PQM610SS
£30.43 excl.
£36.52 incl.
In stock
Expected to ship on Thursday 24 September
BPA000287644
PH Hydraulik Straight Swivel 8L x 12L SS GVO8L12LSS
£14.01 excl.
£16.81 incl.
In stock
Expected to ship on Thursday 24 September
BPA000288270
PH Hydraulik Male Stud coupling 6LL x M6 K SS GES6LLMK6SS
£3.18 excl.
£3.82 incl.
In stock
Expected to ship on Thursday 24 September
BPA000287327

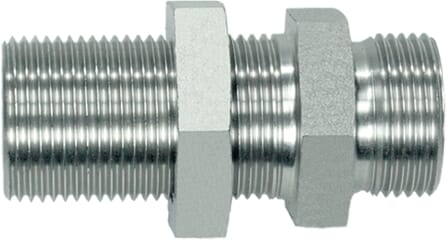

PH Hydraulik Bulkhead Coupling 16S SS GSS16SSS
