£46.24
excl. VAT
£55.49 incl. VAT
£55.49
incl. VAT
£46.24 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M30 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type code | DKOS |
| Connection 1, type - male/female | Male |
| Connection 2, centre to end distance | 37 mm |
| Connection 2, diameter | 20 mm |
| Connection 2, thread diameter | M30 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 27.0 mm |
| Connection no 1 center to end distance | 44.5 mm |
| Connection no 1 diameter | 20 mm |
| Connection no 1 wrench size | 36.0 mm |
| Includes | Coupling with pre-assembled union nut with O-ring, Without cutting rings and nuts |
| Max working pressure | 420 BAR |
| Product details | Bend 90°, Metric cutting ring fitting, Metric pre-assembled union nuts with cone and FPM O-ring, Position adjustable, Stainless steel: AISI 316 ti, Temperature range: -20°C to +200°C, When fitting stainless steel parts, grease the threads with ceramic, teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for extreme temperatures, Food-safe, Durable |
| Seal material | FKM |
| Series connection 1 | 20S |
| Shape | Elbow 90° |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 316 g |
| Dimensions | 64 × 60 × 44 mm |
| Dangerous goods | No |
You might also like
BPA000344084
PH Hydraulik Insert DN05-M12x1.5-6L-90° SS PGLO51290SS
£36.86 excl.
£44.23 incl.
In stock
Expected to ship on Thursday 24 September
BPA000338472
PH Hydraulik Insert DN13-3/4 BSP SS PF1312SS
£31.02 excl.
£37.22 incl.
In stock
Expected to ship on Thursday 24 September
BPA000288328
PH Hydraulik Male Stud coupling 8L x M10 SS GES8LM10SS
£2.95 excl.
£3.54 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000358630
PH Hydraulik Ferrule SFP108SS
£8.58 excl.
£10.30 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000337877
PH Hydraulik Insert DN10-3/4-UNF SS PC1012SS
£13.73 excl.
£16.48 incl.
Backorder available
Usually ships within 3–8 weeks

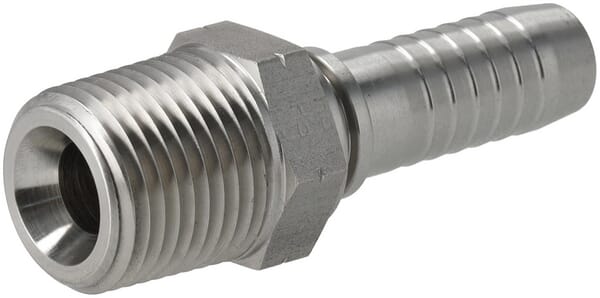

BPA000338353
