£73.51
excl. VAT
£88.21 incl. VAT
£88.21
incl. VAT
£73.51 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M36 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type code | DKOS |
| Connection 1, type - male/female | Male |
| Connection 2, centre to end distance | 42 mm |
| Connection 2, diameter | 25 mm |
| Connection 2, thread diameter | M36 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 36.0 mm |
| Connection no 1 center to end distance | 50 mm |
| Connection no 1 diameter | 25 mm |
| Connection no 1 wrench size | 46.0 mm |
| Includes | Coupling with pre-assembled union nut with O-ring, Without cutting rings and nuts |
| Max working pressure | 420 BAR |
| Product details | Bend 90°, Metric cutting ring fitting, Metric pre-assembled union nuts with cone and FPM O-ring, Position adjustable, Stainless steel: AISI 316 ti, Temperature range: -20°C to +200°C, When fitting stainless steel parts, grease the threads with ceramic, teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for extreme temperatures, Food-safe, Durable |
| Seal material | FKM |
| Series connection 1 | 25S |
| Shape | Elbow 90° |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 600 g |
| Dimensions | 72 × 68 × 52 mm |
| Dangerous goods | No |
You might also like
BPA000344098
PH Hydraulik Insert DN06-M14x1.5-8L-45° SS PGLO61445SS
£17.94 excl.
£21.53 incl.
In stock
Expected to ship on Thursday 24 September
BPA000343857
PH Hydraulik Insert DN10-1/2 BSP face seal SS PFV108SS
£17.48 excl.
£20.98 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000395970
PH Hydraulik Adaptor M/F 1/8" BSP SS VRB02SS
£9.44 excl.
£11.33 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000258252
PH Hydraulik Swivel Connector M/F 22L x 3/4" BSP WD SS EGESD22LR34WDSS
£30.84 excl.
£37.01 incl.
In stock
Expected to ship on Wednesday 23 September

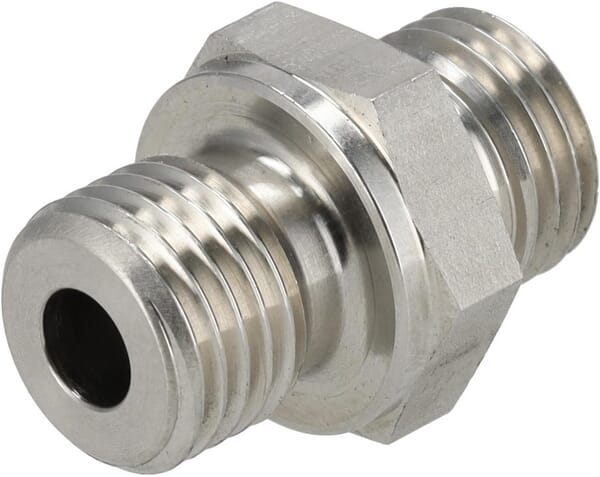

BPA000288335
