£10.91
excl. VAT
£13.09 incl. VAT
£13.09
incl. VAT
£10.91 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M12 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type code | DKOL |
| Connection 1, type - male/female | Male |
| Connection 2, centre to end distance | 19 mm |
| Connection 2, diameter | 6 mm |
| Connection 2, thread diameter | M12 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 12.0 mm |
| Connection no 1 center to end distance | 26 mm |
| Connection no 1 diameter | 6 mm |
| Connection no 1 wrench size | 14.0 mm |
| Includes | Coupling with pre-assembled union nut with O-ring, Without cutting rings and nuts |
| Max working pressure | 500 BAR |
| Product details | Bend 90°, Metric cutting ring fitting, Metric pre-assembled union nuts with cone and FPM O-ring, Position adjustable, Stainless steel: AISI 316 ti, Temperature range: -20°C to +200°C, When fitting stainless steel parts, grease the threads with ceramic, teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for extreme temperatures, Food-safe, Durable |
| Seal material | FKM |
| Series connection 1 | 6L |
| Shape | Elbow 90° |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 31 g |
| Dimensions | 34 × 28 × 18 mm |
| Dangerous goods | No |
You might also like
BPA000336417
PH Hydraulik Insert DN06-7/16 UNF SS PA67SS
£9.99 excl.
£11.99 incl.
In stock
Expected to ship on Thursday 24 September
BPA000344158

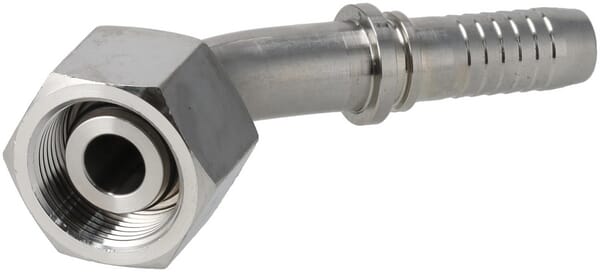

PH Hydraulik Insert DN10-M20x1.5-12S-45° SS PGSO102045SS
£23.41 excl.
£28.09 incl.
In stock
Expected to ship on Thursday 24 September
BPA000288078

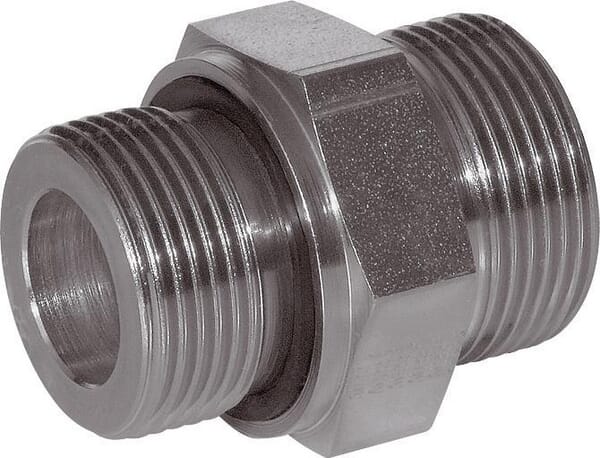

PH Hydraulik Male Stud coupling 18L x 1/2" BSP WD SS GES18LR12WDSS
£7.31 excl.
£8.77 incl.
In stock
Expected to ship on Thursday 24 September
BPA000341382

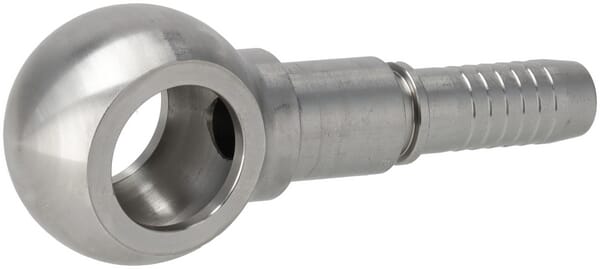

PH Hydraulik Banjo insert DN08-diameter 14 SS PQM814SS
£36.29 excl.
£43.55 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000287624

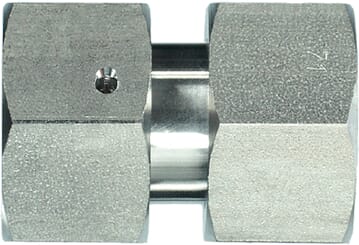

PH Hydraulik Straight SwiveL F/F 38S x 38S SS GVO38S38SSS
