£10.91
excl. VAT
£13.09 incl. VAT
£13.09
incl. VAT
£10.91 excl. VAT
In stock
Expected to ship on Thursday 24 September

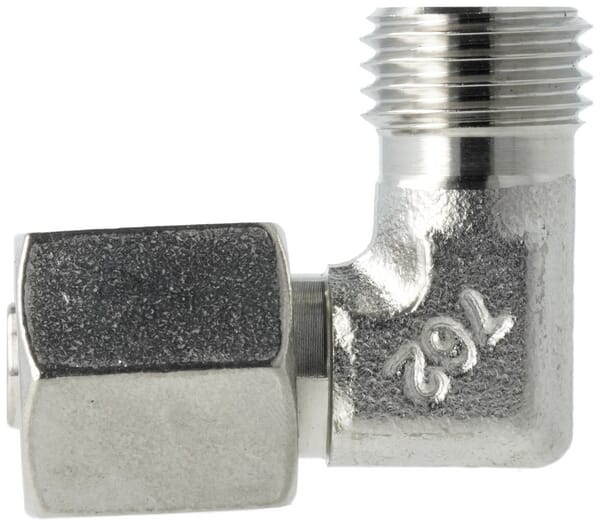

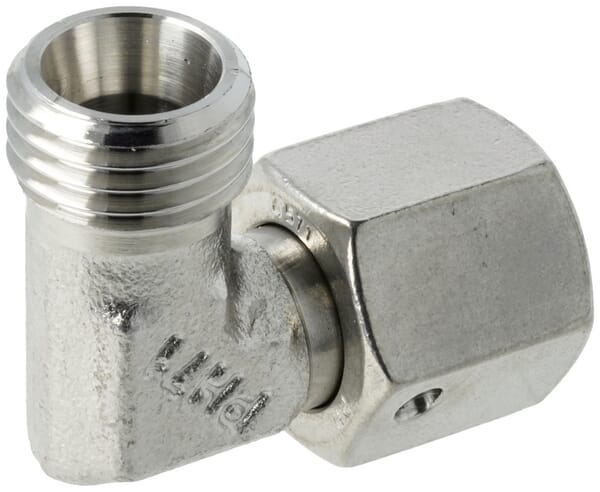

Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M14 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type code | DKOL |
| Connection 1, type - male/female | Male |
| Connection 2, centre to end distance | 21 mm |
| Connection 2, diameter | 8 mm |
| Connection 2, thread diameter | M14 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 14.0 mm |
| Connection no 1 center to end distance | 27.5 mm |
| Connection no 1 diameter | 8 mm |
| Connection no 1 wrench size | 17.0 mm |
| Includes | Coupling with pre-assembled union nut with O-ring, Without cutting rings and nuts |
| Max working pressure | 500 BAR |
| Product details | Bend 90°, Metric cutting ring fitting, Metric pre-assembled union nuts with cone and FPM O-ring, Position adjustable, Stainless steel: AISI 316 ti, Temperature range: -20°C to +200°C, When fitting stainless steel parts, grease the threads with ceramic, teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for extreme temperatures, Food-safe, Durable |
| Seal material | FKM |
| Series connection 1 | 8L |
| Shape | Elbow 90° |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 44 g |
| Dimensions | 34 × 32 × 18 mm |
| Dangerous goods | No |
You might also like
BPA000344192

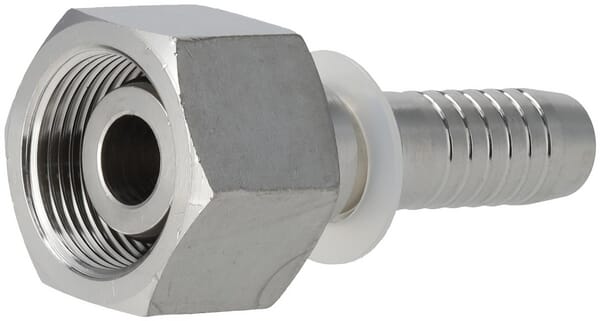

PH Hydraulik Insert DN16-M24x1.5-16S SS PGSO1624SS
£29.46 excl.
£35.35 incl.
In stock
Expected to ship on Thursday 24 September
BPA000385476

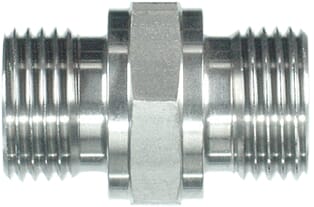

PH Hydraulik Straight Adaptor M 1-1/4"x1" BSP SS VNB2016SS
£36.82 excl.
£44.18 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000399965

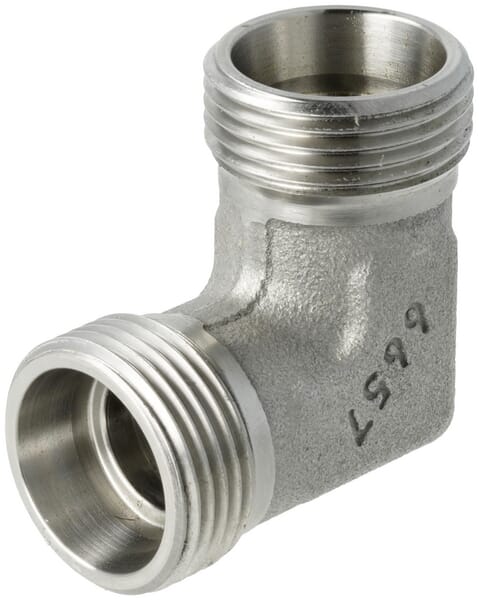

PH Hydraulik Elbow 8L SS WS8LSS
£5.46 excl.
£6.55 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000295876

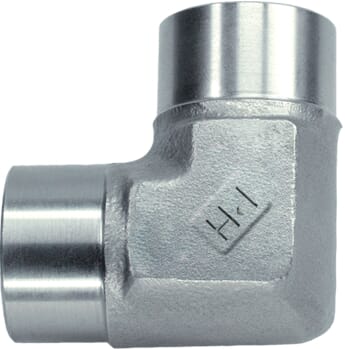

PH Hydraulik Elbow Adaptor 1" BSP SS KBB9016SS
£52.00 excl.
£62.40 incl.
In stock
Expected to ship on Thursday 24 September
BPA000268114

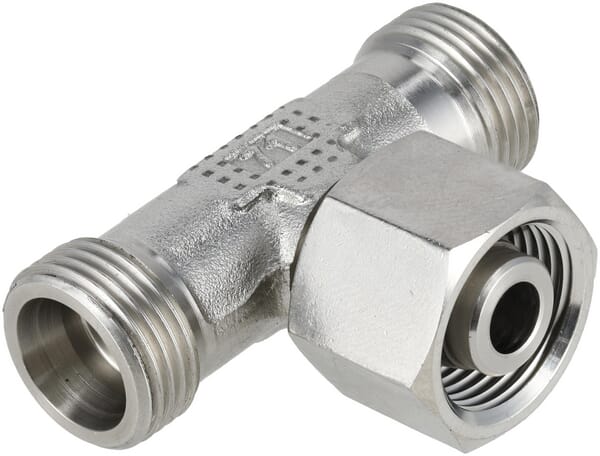

PH Hydraulik T piece Adjustable 18L SS ETS18LSS
£39.91 excl.
£47.89 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000336316

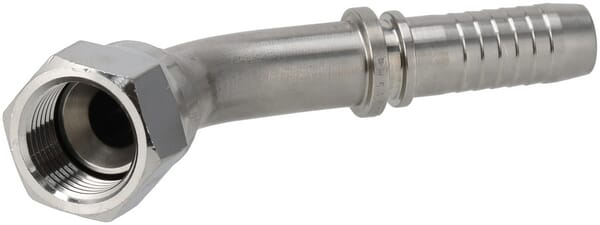

PH Hydraulik Insert DN13-7/8-UNF-45° SS PA131445SS
