£82.50
excl. VAT
£99.00 incl. VAT
£99.00
incl. VAT
£82.50 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Ball material | Stainless steel 1.4571 |
|---|---|
| Connection 2, type - male/female | Female |
| Connection thread diameter | 1/2 Inch |
| Connection thread type | G |
| Connection type | Swivel nut |
| Connection type - male/female | Female |
| Connection wrench/spanner size | 30.0 mm |
| Dedicated pipe diameter | 13 mm |
| Housing height | 40 mm |
| Housing length | 48 mm |
| Housing material | Stainless steel 1.4571, Stainless steel AISI 316Ti |
| Housing width | 35 mm |
| Includes | Ball valve, Lever |
| Max medium temperature | 100 °C |
| Max working pressure | 500 BAR |
| Min medium temperature | -20 °C |
| Number of ports | 2 |
| Product details | 2-way ball valves, Block shape, BSP female thread, Seal: NBR and POM, Stainless steel: AISI 316 ti, Temperature range: -20°C to +100°C, When fitting stainless steel parts, grease the threads with ceramic, Teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Food-safe, Durable |
| Sealing material | Nitrile rubber, POM |
| Total length | 83 mm |
| Type | Manual valve |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 671 g |
| Dimensions | 165 × 85 × 36 mm |
| Dangerous goods | No |
You might also like
BPA000237864
PH Hydraulik Ball valve 1/2" BSP SS BVRB08SS
£82.50 excl.
£99.00 incl.
In stock
Expected to ship on Thursday 24 September
BPA000396180
PH Hydraulik Blanking plug 16S SS VS16SSS
£5.77 excl.
£6.92 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000288056
PH Hydraulik Male Stud coupling 18L x 1/2" NPT SS GES18L12NPTSS
£11.13 excl.
£13.36 incl.
In stock
Expected to ship on Thursday 24 September
BPA000268143

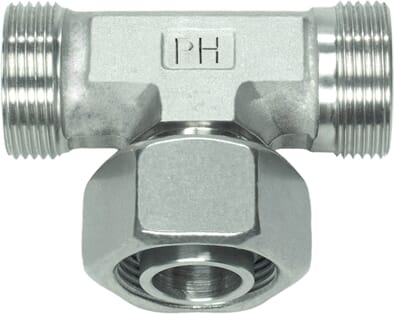

PH Hydraulik T piece Adjustable 22L SS ETSD22LSS
