£74.69
excl. VAT
£89.63 incl. VAT
£89.63
incl. VAT
£74.69 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Ball material | Stainless steel 1.4571 |
|---|---|
| Connection 2, type - male/female | Female |
| Connection thread diameter | 1/4 Inch |
| Connection thread type | G |
| Connection type | Swivel nut |
| Connection type - male/female | Female |
| Connection wrench/spanner size | 22.0 mm |
| Dedicated pipe diameter | 6 mm |
| Housing height | 33 mm |
| Housing length | 40 mm |
| Housing material | Stainless steel 1.4571, Stainless steel AISI 316Ti |
| Housing width | 26 mm |
| Includes | Ball valve, Lever |
| Max medium temperature | 100 °C |
| Max working pressure | 500 BAR |
| Min medium temperature | -20 °C |
| Number of ports | 2 |
| Product details | 2-way ball valves, Block shape, BSP female thread, Seal: NBR and POM, Stainless steel: AISI 316 ti, Temperature range: -20°C to +100°C, When fitting stainless steel parts, grease the threads with ceramic, Teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Food-safe, Durable |
| Sealing material | Nitrile rubber, POM |
| Total length | 69 mm |
| Type | Manual valve |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 405 g |
| Dimensions | 163 × 75 × 27 mm |
| Dangerous goods | No |
You might also like
BPA000237862
PH Hydraulik Ball valve 1/4" BSP SS BVRB04SS
£74.69 excl.
£89.63 incl.
In stock
Expected to ship on Thursday 24 September
BPA000348258
PH Hydraulik Reducing coupling 30Sx20S SS REDSD3020SSS
£61.21 excl.
£73.45 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000287638
PH Hydraulik Straight SwiveL F/F 6S x 6S SS GVO6S6SSS
£10.39 excl.
£12.47 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000258201

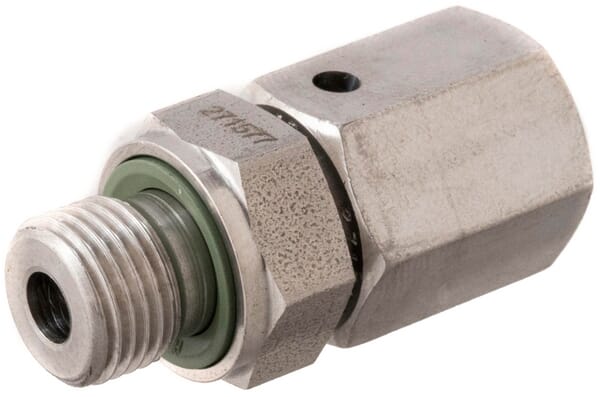

PH Hydraulik Swivel Connector M/F 12L x 1/4" BSP WD SS EGESD12LR14WDSS
