£74.69
excl. VAT
£89.63 incl. VAT
£89.63
incl. VAT
£74.69 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Connection 2, type | Swivel nut |
|---|---|
| Connection 2, type - male/female | Female |
| Connection thread diameter | 1/8 Inch |
| Connection thread type | G |
| Connection type | Swivel nut |
| Connection type - male/female | Female |
| Connection wrench/spanner size | 22.0 mm |
| Housing height | 32 mm |
| Housing length | 36 mm |
| Housing material | Stainless steel |
| Includes | Ball valve, Lever |
| Max medium temperature | 100 °C |
| Max working pressure | 500 BAR |
| Min medium temperature | -20 °C |
| Mounting thread diameter | M5 |
| Nominal inner diameter | 5 mm |
| Number of ports | 2 |
| Outside diameter | 32 mm |
| Product details | 2-way ball valves, Round construction, BSP female thread, Seal: NBR and POM, Stainless steel: AISI 316 ti, Temperature range: -20°C to +100°C, When fitting stainless steel parts, grease the threads with ceramic, Teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Food-safe, Durable |
| Sealing material | Nitrile rubber [NBR], POM |
| Total height | 43.5 mm |
| Total length | 69 mm |
| Type | Manual valve |
| Unit | Each |
| Weight | 0.35 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 424 g |
| Dimensions | 165 × 75 × 35 mm |
| Dangerous goods | No |
You might also like
BPA000237806
PH Hydraulik Ball valve 1/8" BSP SS BVB02SS
£74.69 excl.
£89.63 incl.
In stock
Expected to ship on Thursday 24 September
BPA000237837

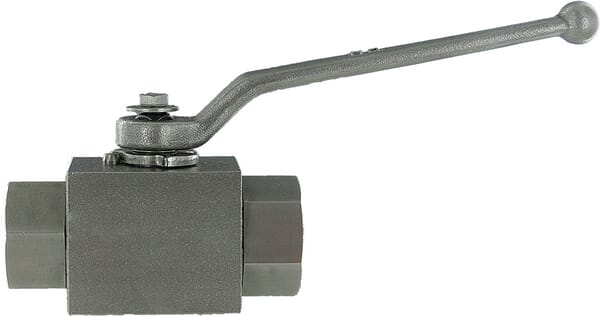

PH Hydraulik Ball valve 20S SS BVM20SSS
£82.50 excl.
£99.00 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000338529
PH Hydraulik Insert DN25-1" BSP-45° SS PF251645SS
£83.89 excl.
£100.67 incl.
In stock
Expected to ship on Thursday 24 September
BPA000287349
PH Hydraulik Bulkhead Coupling 8L SS GSS8LSS
£7.27 excl.
£8.72 incl.
In stock
Expected to ship on Thursday 24 September
BPA000269906

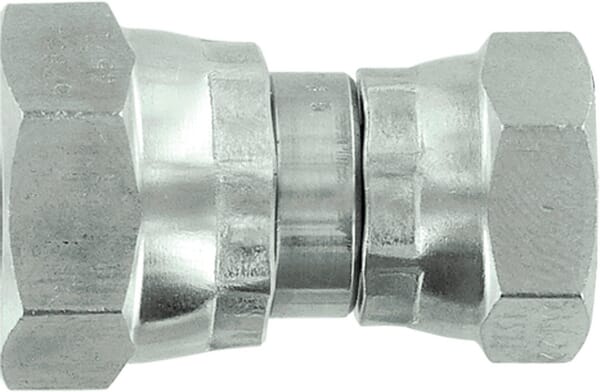

PH Hydraulik Swivel Adaptor F/F 1/2" BSP SS FFB08SS
£15.42 excl.
£18.50 incl.
In stock
Expected to ship on Thursday 24 September
BPA000287913

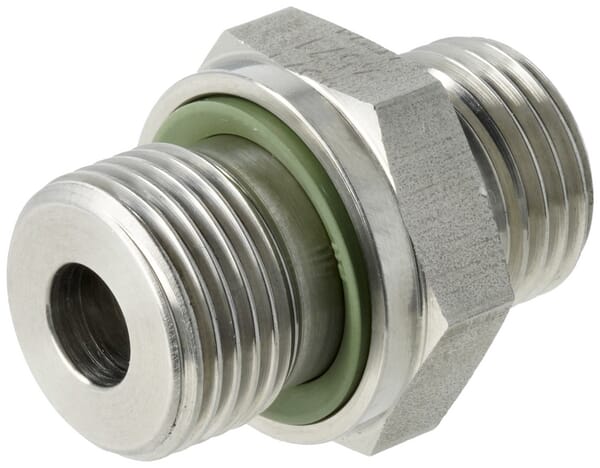

PH Hydraulik Male Stud coupling 12L x 3/8" BSP WD SS GES12LR38WDSS
