£82.41
excl. VAT
£98.89 incl. VAT
£98.89
incl. VAT
£82.41 excl. VAT
In stock
Expected to ship on Thursday 24 September

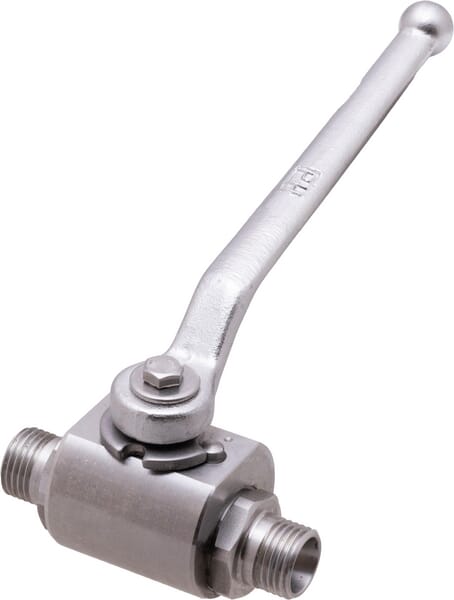

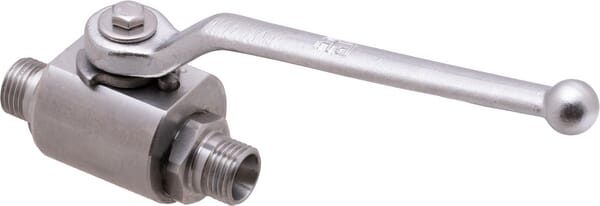

Product details
| Connection 2, type - male/female | Female |
|---|---|
| Connection thread diameter | M16 |
| Connection thread pitch | 1.50 mm |
| Connection thread type | Metric |
| Connection type | Thread |
| Connection type - male/female | Female |
| Connection wrench/spanner size | 22.0 mm |
| Dedicated pipe diameter | 10 mm |
| Housing height | 32 mm |
| Housing length | 36 mm |
| Housing material | Stainless steel |

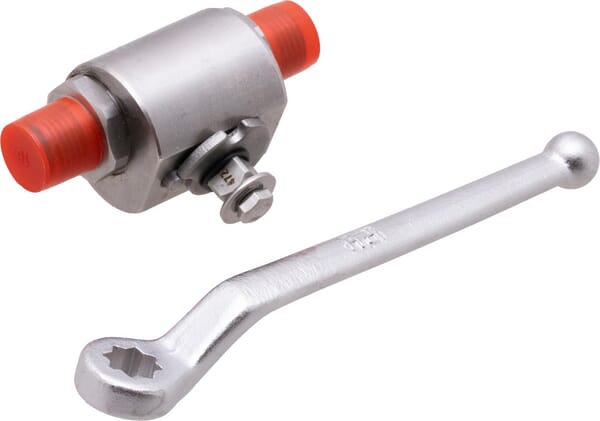

| Includes | Ball valve, Lever |
| Max medium temperature | 100 °C |
| Max working pressure | 500 BAR |
| Min medium temperature | -20 °C |
| Mounting thread diameter | M5 |
| Nominal inner diameter | 8 mm |
| Number of ports | 2 |
| Number of positions | 2 |
| Outside diameter | 35 mm |
| Product details | 2-way ball valves, Round construction, Metric cutting ring connections, Stainless steel: AISI 316 ti, Temperature range: -20°C to +100°C, When fitting stainless steel parts, grease the threads with ceramic, Teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Food-safe, Durable |
| Sealing material | Nitrile rubber, POM |
| Series code | L |
| Total length | 71 mm |
| Type | Manual valve |
| Unit | Each |
| Weight | 0.3 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 447 g |
| Dimensions | 125 × 80 × 10 mm |
| Dangerous goods | No |
