£78.97
excl. VAT
£94.76 incl. VAT
£94.76
incl. VAT
£78.97 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Connection 2, type - male/female | Female |
|---|---|
| Connection thread diameter | M22 |
| Connection thread pitch | 1.50 mm |
| Connection thread type | Metric |
| Connection type | Swivel nut |
| Connection type - male/female | Female |
| Connection wrench/spanner size | 27.0 mm |
| Dedicated pipe diameter | 10 mm |
| Housing height | 38 mm |
| Housing length | 43 mm |
| Housing material | Stainless steel |
| Includes | Ball valve, Lever |
| Max medium temperature | 100 °C |
| Max working pressure | 500 BAR |
| Min medium temperature | -20 °C |
| Mounting thread diameter | M5 |
| Nominal inner diameter | 10 mm |
| Number of ports | 2 |
| Outside diameter | 42 mm |
| Product details | 2-way ball valves, Round construction, Metric cutting ring connections, Stainless steel: AISI 316 ti, Temperature range: -20°C to +100°C, When fitting stainless steel parts, grease the threads with ceramic, Teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Food-safe, Durable |
| Sealing material | Nitrile rubber, POM |
| Series code | S |
| Total height | 49.5 mm |
| Total length | 84 mm |
| Type | Manual valve |
| Unit | Each |
| Weight | 0.5 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 593 g |
| Dimensions | 165 × 80 × 44 mm |
| Dangerous goods | No |
You might also like
BPA000237833

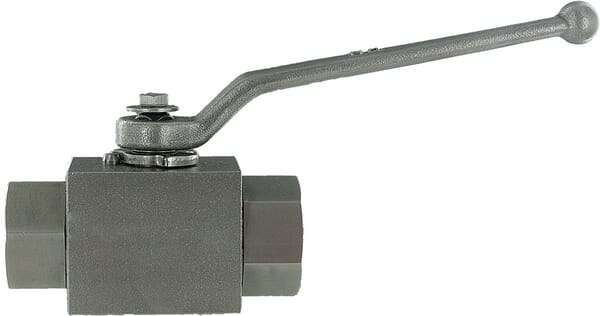

PH Hydraulik Ball valve 14S SS BVM14SSS
£78.97 excl.
£94.76 incl.
In stock
Expected to ship on Thursday 24 September
BPA000404936
PH Hydraulik Hexagon Socket 3/8" BSP SS ZB06SS
£7.49 excl.
£8.99 incl.
In stock
Expected to ship on Thursday 24 September
BPA000344047

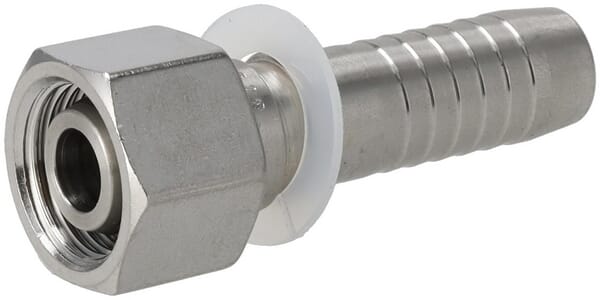

PH Hydraulik Insert DN16-M30x2.0-22L SS PGLO1630SS
£31.80 excl.
£38.16 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000268110

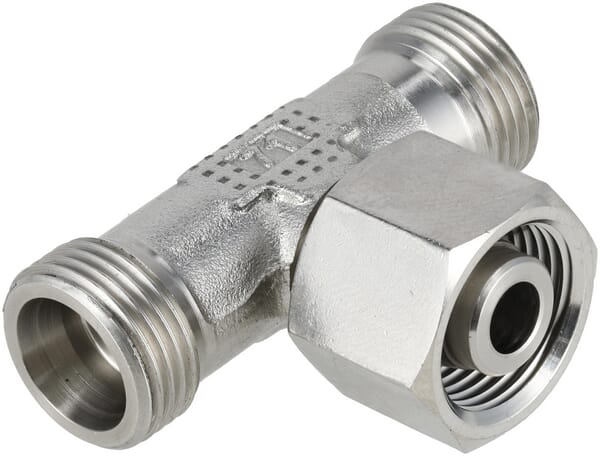

PH Hydraulik T piece Adjustable 12L SS ETS12LSS
£18.69 excl.
£22.43 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000402373

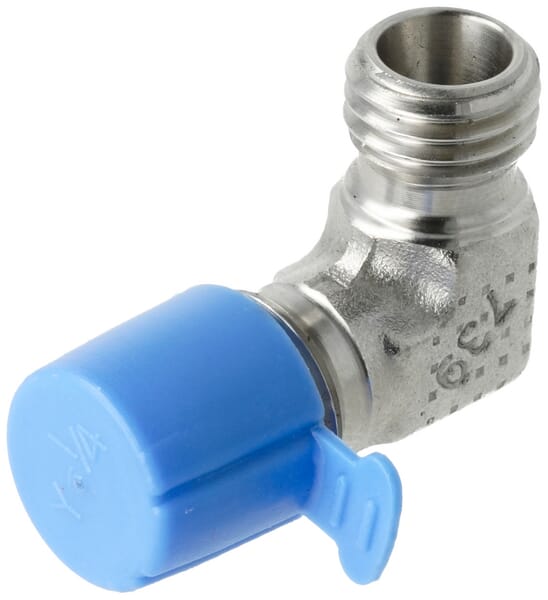

PH Hydraulik Male Stud Elbow 6LL x 1/8" BSPT SS WES6LLRK18SS
