£167.68
excl. VAT
£201.22 incl. VAT
£201.22
incl. VAT
£167.68 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 24 September
Product details
| Connection 2, type - male/female | Female |
|---|---|
| Connection thread diameter | M36 |
| Connection thread pitch | 2.00 mm |
| Connection thread type | Metric |
| Connection type | Swivel nut |
| Connection type - male/female | Female |
| Connection wrench/spanner size | 41.0 mm |
| Dedicated pipe diameter | 20 mm |
| Housing height | 57 mm |
| Housing length | 62 mm |
| Housing material | Stainless steel |
| Includes | Ball valve, Lever |
| Max medium temperature | 100 °C |
| Max working pressure | 400 BAR |
| Min medium temperature | -20 °C |
| Mounting thread diameter | M6 |
| Nominal inner diameter | 20 mm |
| Number of ports | 2 |
| Outside diameter | 60 mm |
| Product details | 2-way ball valves, Round construction, Metric cutting ring connections, Stainless steel: AISI 316 ti, Temperature range: -20°C to +100°C, When fitting stainless steel parts, grease the threads with ceramic, Teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Food-safe, Durable |
| Sealing material | Nitrile rubber, POM |
| Series code | S |
| Total height | 73 mm |
| Total length | 110 mm |
| Type | Manual valve |
| Unit | Each |
| Weight | 1.5 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1608 g |
| Dimensions | 228 × 128 × 63 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000237839
PH Hydraulik Ball valve 25S SS BVM25SSS
£167.68 excl.
£201.22 incl.
In stock
Expected to ship on Thursday 24 September
BPA000287821
PH Hydraulik Male Stud coupling 10S x 1/4" NPT SS GES10S14NPTSS
£6.39 excl.
£7.67 incl.
In stock
Expected to ship on Thursday 24 September
BPA000336514

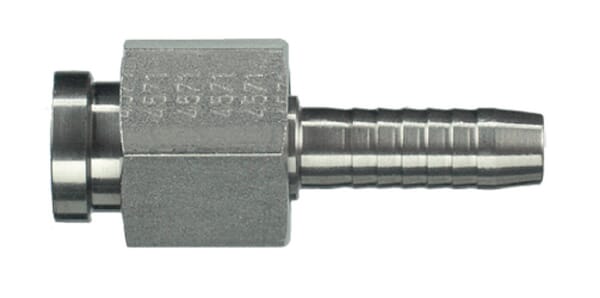

PH Hydraulik Insert DN10-13/16 ORFS-45° SS PAV101345SS
