£14.23
excl. VAT
£17.08 incl. VAT
£17.08
incl. VAT
£14.23 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Cone angle | 24 ° |
|---|---|
| Connection 1, thread diameter | M22 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 15 mm |
| Connection 2, thread diameter | M22 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 27.0 mm |
| Connection no 1 diameter | 15 mm |
| Connection no 1 wrench size | 27.0 mm |
| Hexagon nut size | 30 mm |
| Includes | Bulkhead coupling, Nut, Without cutting rings and union nuts |
| Inside diameter | 12 mm |
| Long description | Bulkhead couplings are used where hydraulic pipes must pass through a wall or bulkhead, with a focus on maintaining the seal and integrity of the system. |
| Material | Stainless steel |
| Product details | Bulkhead couplings with mounting nut, Metric cutting ring fitting, Stainless steel: AISI 316 ti, Temperature range: -60°C to +400°C, When fitting stainless steel parts, grease the threads with ceramic, Teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for extreme temperatures, Food-safe, Durable |
| Series connection 1 | 15L |
| Series connection 2 | 15L |
| Shape | Straight |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 132 g |
| Dimensions | 66 × 45 × 30 mm |
| Dangerous goods | No |
You might also like
BPA000287770

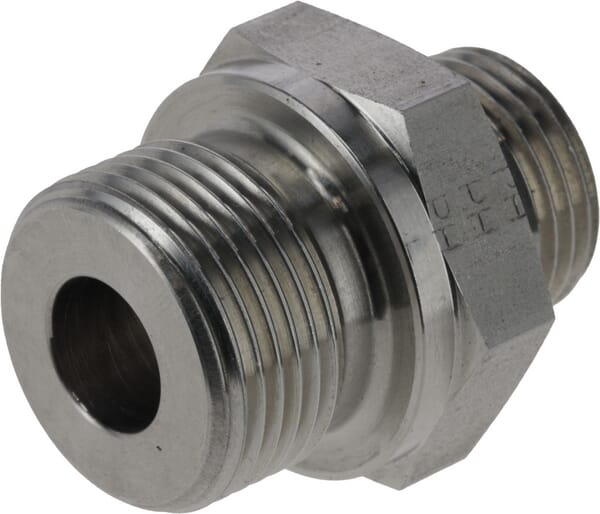

PH Hydraulik Male Stud coupling 10L x M12 SS GES10LM12SS
