£31.14
excl. VAT
£37.37 incl. VAT
£37.37
incl. VAT
£31.14 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Cone angle | 24 ° |
|---|---|
| Connection 1, thread diameter | M30 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 22 mm |
| Connection 2, thread diameter | M30 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 36.0 mm |
| Connection no 1 diameter | 22 mm |
| Connection no 1 wrench size | 36.0 mm |
| Hexagon nut size | 41 mm |
| Includes | Bulkhead coupling, Nut, Without cutting rings and union nuts |
| Inside diameter | 19 mm |
| Long description | Bulkhead couplings are used where hydraulic pipes must pass through a wall or bulkhead, with a focus on maintaining the seal and integrity of the system. |
| Material | Stainless steel |
| Product details | Bulkhead couplings with mounting nut, Metric cutting ring fitting, Stainless steel: AISI 316 ti, Temperature range: -60°C to +400°C, When fitting stainless steel parts, grease the threads with ceramic, Teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for extreme temperatures, Food-safe, Durable |
| Series connection 1 | 22L |
| Series connection 2 | 22L |
| Shape | Straight |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 256 g |
| Dimensions | 74 × 50 × 50 mm |
| Dangerous goods | No |
You might also like
BPA000399871
PH Hydraulik Elbow 28L SS WS28LSS
£43.34 excl.
£52.01 incl.
In stock
Expected to ship on Thursday 24 September
BPA000343622
PH Hydraulik Insert DN06-3/8 BSP-45° SS PF6645SS
£34.73 excl.
£41.68 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000237776
PH Hydraulik Three way ball valve L-bore 1/4" BSP SS BV3B04LSS
£263.13 excl.
£315.76 incl.
In stock
Expected to ship on Thursday 24 September
BPA000287784
PH Hydraulik Male Stud coupling 10L x M18 SS GES10LM18SS
£6.74 excl.
£8.09 incl.
In stock
Expected to ship on Thursday 24 September
BPA000344179
PH Hydraulik Insert DN13-M22x1.5-14S SS PGSO1322SS
£62.23 excl.
£74.68 incl.
In stock
Expected to ship on Thursday 24 September
BPA000288255
PH Hydraulik Male Stud coupling 42L x 1-1/2" BSP WD SS GES42LR112WDSS
£36.35 excl.
£43.62 incl.
In stock
Expected to ship on Thursday 24 September
Recently viewed
BPA000127454

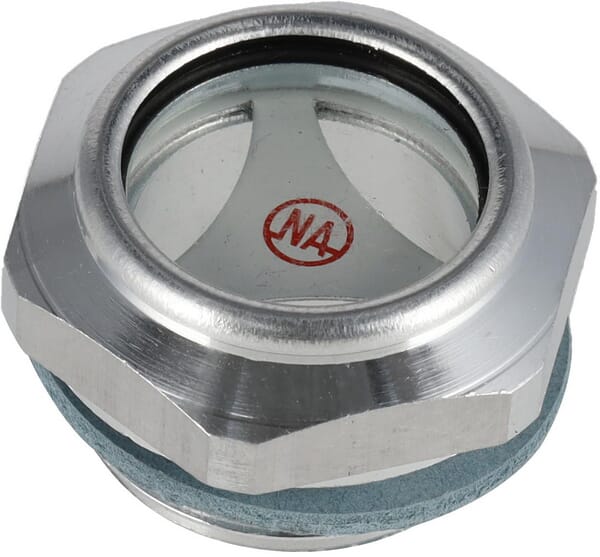

Yanmar Sight gauge 5010663079
