£91.92
excl. VAT
£110.30 incl. VAT
£110.30
incl. VAT
£91.92 excl. VAT
In stock
Expected to ship on Thursday 24 September

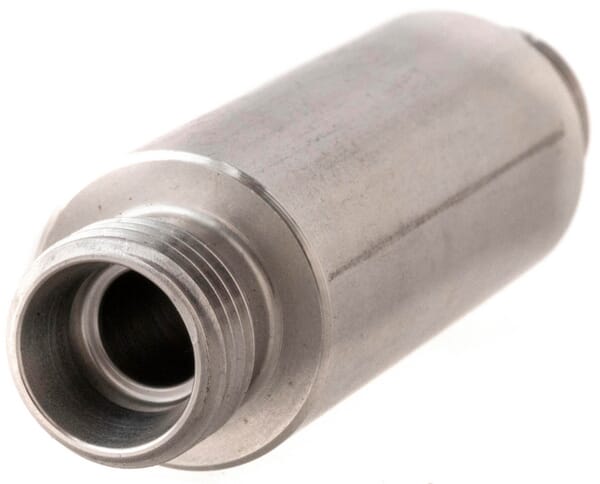

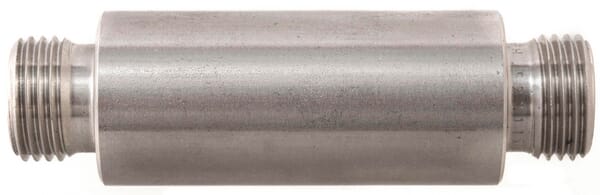

Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M52 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 38 mm |
| Connection 2, thread diameter | M52 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection no 1 diameter | 38 mm |
| Includes | Coupling, Without cutting ring and nut |
| Inside length | 72 mm |
| Outside diameter | 60 mm |
| Product details | Bulkhead couplings, weldable, Metric cutting ring connection, Stainless steel: AISI 316 ti, Temperature range: -60°C to +400°C, When fitting stainless steel parts, grease the threads with ceramic, Teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for extreme temperatures, Food-safe, Durable |
| Series connection 1 | 38S |
| Shape | Straight |
| Total length | 104 mm |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1304 g |
| Dimensions | 110 × 65 × 65 mm |
| Dangerous goods | No |
You might also like
BPA000344237
PH Hydraulik Insert DN06-M16x1.5-8S-90° SS PGSO61690SS
£21.85 excl.
£26.22 incl.
In stock
Expected to ship on Thursday 24 September
BPA000308483
PH Hydraulik Nut 25S M36x2 SS M25SSS
£18.73 excl.
£22.48 incl.
In stock
Expected to ship on Thursday 24 September
BPA000385406

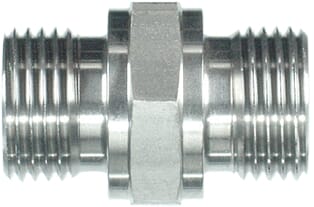

PH Hydraulik Straight Adaptor M 1"x3/4" BSP SS VNB1612SS
