£14.56
excl. VAT
£17.47 incl. VAT
£17.47
incl. VAT
£14.56 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Cone angle | 24 ° |
|---|---|
| Connection 1, thread diameter | M14 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 8 mm |
| Connection 2, thread diameter | M14 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 19.0 mm |
| Connection no 1 center to end distance | 14 mm, 51 mm |
| Connection no 1 diameter | 8 mm |
| Connection no 1 wrench size | 19.0 mm |
| DIN standard | 80750, 2401, 2353 |
| Hexagon nut size | 19 mm |
| Includes | Bulkhead coupling, Nut, Without cutting rings and union nuts |
| Inside diameter | 6 mm |
| Long description | Bulkhead couplings are used where hydraulic pipes must pass through a wall or bulkhead, with a focus on maintaining the seal and integrity of the system. |
| Material | Stainless steel |
| Max working pressure | 315 BAR |
| Product details | Bulkhead couplings 90°, with mounting nut, Metric cutting ring fitting, Stainless steel: AISI 316 ti, Temperature range: -60°C to +400°C, When fitting stainless steel parts, grease the threads with ceramic, Teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for extreme temperatures, Food-safe, Durable |
| Series connection 1 | 8L |
| Series connection 2 | 8L |
| Shape | Bulkhead 90° |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 63 g |
| Dimensions | 60 × 35 × 25 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000336546
PH Hydraulik Insert DN16-1" ORFS-45° SS PAV161645SS
£122.49 excl.
£146.99 incl.
In stock
Expected to ship on Thursday 24 September
BPA000232557
PH Hydraulik Weld Stub coupling 18L SS ASS18LSS
£8.23 excl.
£9.87 incl.
In stock
Expected to ship on Thursday 24 September
BPA000287976
PH Hydraulik Male Stud coupling 15L x 3/8" NPT SS GES15L38NPTSS
£8.69 excl.
£10.43 incl.
In stock
Expected to ship on Thursday 24 September
BPA000344192
PH Hydraulik Insert DN16-M24x1.5-16S SS PGSO1624SS
£29.46 excl.
£35.35 incl.
In stock
Expected to ship on Thursday 24 September
BPA000258520
PH Hydraulik T piece Adjustable 18L SS ELSD18LSS
£49.76 excl.
£59.71 incl.
In stock
Expected to ship on Thursday 24 September

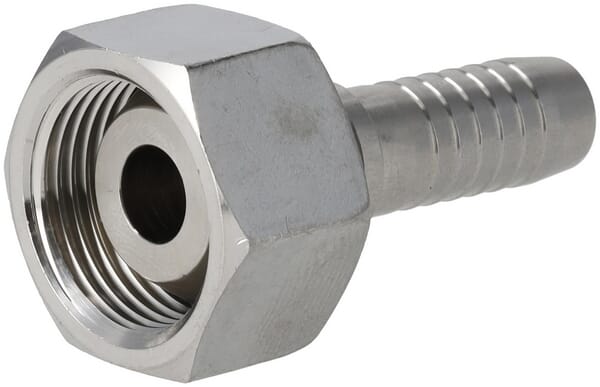

BPA000338543
