£6.31
excl. VAT
£7.57 incl. VAT
£7.57
incl. VAT
£6.31 excl. VAT
In stock
Expected to ship on Wednesday 23 September
Product details
| Connection 1, thread diameter | M16 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 10 mm |
| Connection 2, length | 15 mm |
| Connection 2, thread diameter | M16 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 19.0 mm |
| Connection no 1 center to end distance | 15 mm, 22 mm |
| Connection no 1 diameter | 10 mm |
| Connection no 1 wrench size | 19.0 mm |
| DIN standard | 2401, 2353 |
| Includes | Coupling, Without cutting rings and nuts |
| Inside diameter side 2 | 10 mm |
| Max working pressure | 500 BAR |
| Product details | Bend 90°, Metric cutting ring fitting, Stainless steel: AISI 316 ti, Temperature range: -60°C to +400°C, When fitting stainless steel parts, grease the threads with ceramic, Teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for extreme temperatures, Food-safe, Durable |
| Series connection 1 | 10L |
| Shape | Elbow 90° |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 31 g |
| Dimensions | 33 × 30 × 18 mm |
| Dangerous goods | No |
You might also like
BPA000288316
PH Hydraulik Male Stud coupling 6S x 1/4" BSP WD SS GES6SR14WDSS
£4.03 excl.
£4.84 incl.
In stock
Expected to ship on Thursday 24 September
BPA000313443
PH Hydraulik Nut 8L M14x1.5 SS M8LSS
£1.17 excl.
£1.40 incl.
In stock
Expected to ship on Thursday 24 September
BPA000367231
PH Hydraulik T- Adaptor 1/2" SS T08MSS
£17.52 excl.
£21.02 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000321539

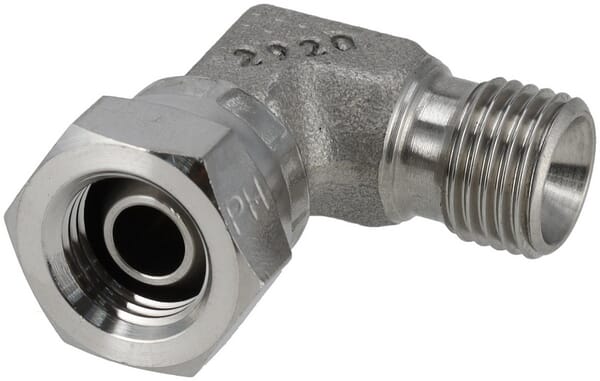

PH Hydraulik Elbow adaptor M/F 1/4" BSP SS MF9004KSS
£16.37 excl.
£19.64 incl.
In stock
Expected to ship on Thursday 24 September
BPA000344158
PH Hydraulik Insert DN10-M20x1.5-12S-45° SS PGSO102045SS
£23.41 excl.
£28.09 incl.
In stock
Expected to ship on Thursday 24 September
BPA000288294

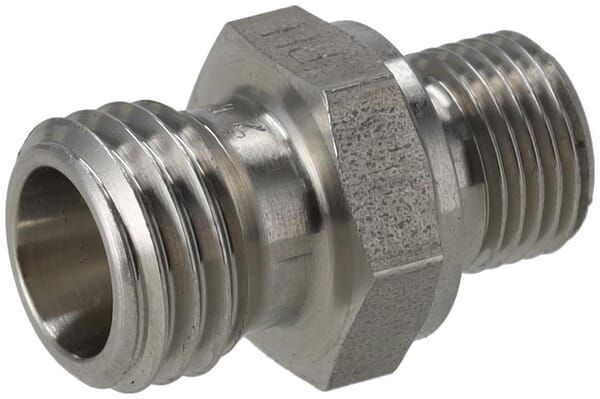

PH Hydraulik Male Stud coupling 6L x 1/8" BSP SS GES6LR18SS
