£9.53
excl. VAT
£11.44 incl. VAT
£11.44
incl. VAT
£9.53 excl. VAT
In stock
Expected to ship on Friday 25 September
Product details
| Connection 1, thread diameter | M22 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 15 mm |
| Connection 2, length | 21 mm |
| Connection 2, thread diameter | M22 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 27.0 mm |
| Connection no 1 center to end distance | 21 mm, 28 mm |
| Connection no 1 diameter | 15 mm |
| Connection no 1 wrench size | 27.0 mm |
| DIN standard | 2401, 2353 |
| Includes | Coupling, Without cutting rings and nuts |
| Inside diameter side 2 | 15 mm |
| Max working pressure | 400 BAR |

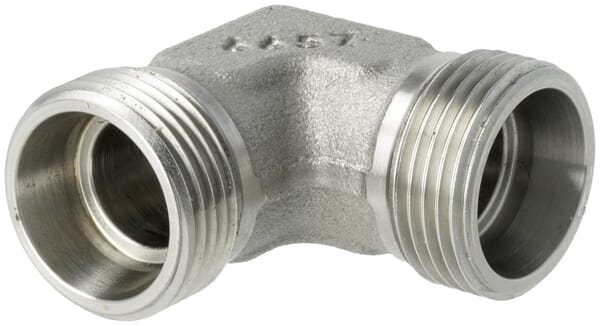

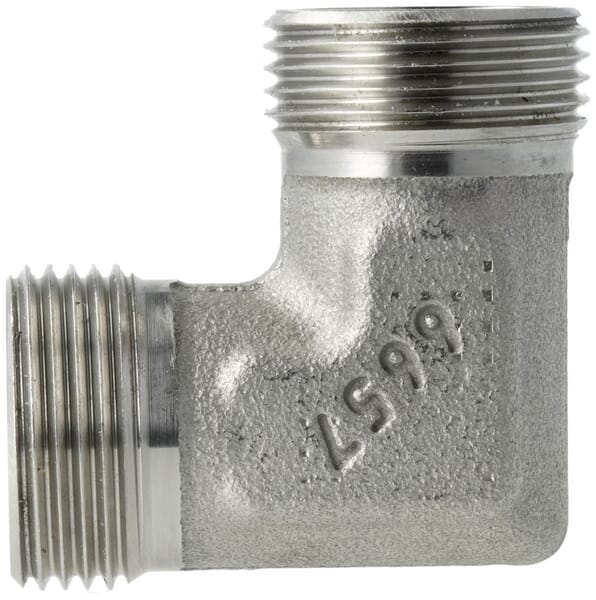

| Product details | Bend 90°, Metric cutting ring fitting, Stainless steel: AISI 316 ti, Temperature range: -60°C to +400°C, When fitting stainless steel parts, grease the threads with ceramic, Teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for extreme temperatures, Food-safe, Durable |
| Series connection 1 | 15L |
| Shape | Elbow 90° |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 77 g |
| Dimensions | 43 × 42 × 26 mm |
| Dangerous goods | No |
