£5.93
excl. VAT
£7.12 incl. VAT
£7.12
incl. VAT
£5.93 excl. VAT
In stock
Expected to ship on Wednesday 23 September
Product details
| Connection 1, thread diameter | 1/4 Inch |
|---|---|
| Connection 1, thread type | BSPT |
| Connection 1, type | Thread |
| Connection 2, centre to end distance | 15 mm |
| Connection 2, diameter | 10 mm |
| Connection 2, thread diameter | M16 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 17.0 mm |
| Connection no 1 center to end distance | 19 mm |
| Connection no 1 diameter | 10 mm |
| Connection no 1 thread length | 12 mm |
| Connection no 1 wrench size | 19.0 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| Includes | Coupling, Without cutting ring and nut |
| Inside diameter | 7 mm, 8 mm |
| ISO standard | 228 |
| Max working pressure | 315 BAR |
| Product details | Bend 90°, Screw-in side: BSP with conical thread, Metric cutting ring fitting, Stainless steel: AISI 316 ti, Temperature range: -60°C to +400°C, When fitting stainless steel parts, grease the threads with ceramic, Teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for extreme temperatures, Food-safe, Durable |
| Series connection 1 | 10L |
| Shape | Elbow 90° |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 37 g |
| Dimensions | 39 × 32 × 18 mm |
| Dangerous goods | No |
You might also like
BPA000393242
PH Hydraulik Straight Adaptor M 1" BSP x 1" NPT SS VNBN16SS
£20.14 excl.
£24.17 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000395999

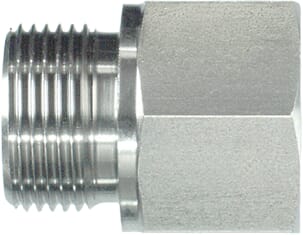

PH Hydraulik Adaptor M/F 1/2" BSPX1/4" BSP SS VRB0804SS
£12.38 excl.
£14.86 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000288080

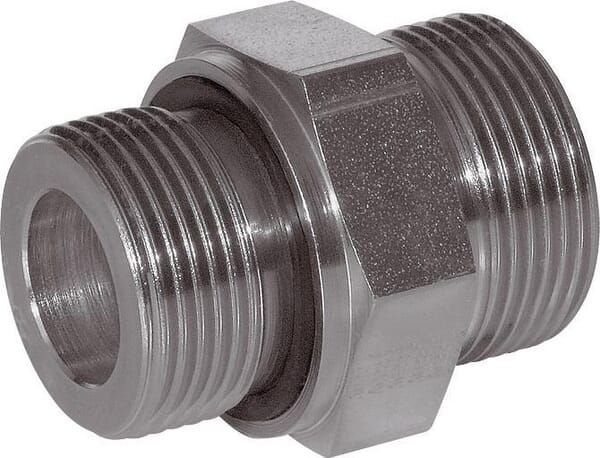

PH Hydraulik Male Stud coupling 18L x 1" WD SS GES18LR1WDSS
£20.76 excl.
£24.91 incl.
In stock
Expected to ship on Thursday 24 September
BPA000287851
PH Hydraulik Male Stud coupling 12L x 3/4" UNF SS GES12L34UNFSS
£12.73 excl.
£15.28 incl.
In stock
Expected to ship on Thursday 24 September
BPA000287199

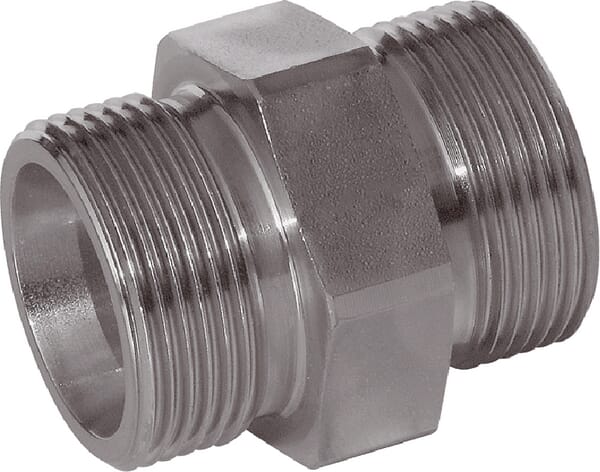

PH Hydraulik Straight Coupling 22L SS GS22LSS
£10.27 excl.
£12.32 incl.
In stock
Expected to ship on Thursday 24 September
BPA000287758

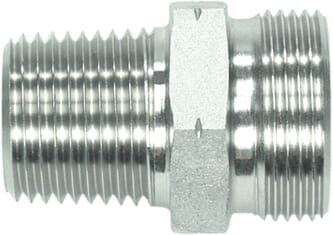

PH Hydraulik Male Stud coupling 10L x 1/4" NPT SS GES10L12NPTSS
