£11.02
excl. VAT
£13.22 incl. VAT
£13.22
incl. VAT
£11.02 excl. VAT
In stock
Expected to ship on Wednesday 23 September
Product details
| Connection 1, thread diameter | 3/8 Inch |
|---|---|
| Connection 1, thread type | BSPT |
| Connection 1, type | Thread |
| Connection 2, centre to end distance | 21 mm |
| Connection 2, diameter | 15 mm |
| Connection 2, thread diameter | M22 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 19.0 mm |
| Connection no 1 center to end distance | 24 mm |
| Connection no 1 diameter | 15 mm |
| Connection no 1 thread length | 12 mm |
| Connection no 1 wrench size | 27.0 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| Includes | Coupling, Without cutting ring and nut |
| Inside diameter | 9 mm, 11 mm |
| ISO standard | 228 |
| Max working pressure | 315 BAR |
| Product details | Bend 90°, Screw-in side: BSP with conical thread, Metric cutting ring fitting, Stainless steel: AISI 316 ti, Temperature range: -60°C to +400°C, When fitting stainless steel parts, grease the threads with ceramic, Teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for extreme temperatures, Food-safe, Durable |
| Series connection 1 | 15L |
| Shape | Elbow 90° |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 87 g |
| Dimensions | 49 × 40 × 23 mm |
| Dangerous goods | No |
You might also like
BPA000287203
PH Hydraulik Straight Coupling 25S SS GS25SSS
£18.73 excl.
£22.48 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000348209
PH Hydraulik Reducing coupling 18Lx12L SS REDSD1812LSS
£16.05 excl.
£19.26 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000288318
PH Hydraulik Male Stud coupling 6S x 3/8" BSP SS GES6SR38SS
£3.81 excl.
£4.57 incl.
In stock
Expected to ship on Thursday 24 September
BPA000258497

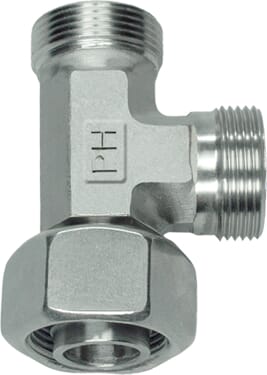

PH Hydraulik T piece Adjustable 6L SS ELS6LSS
£12.94 excl.
£15.53 incl.
In stock
Expected to ship on Thursday 24 September
BPA000287573

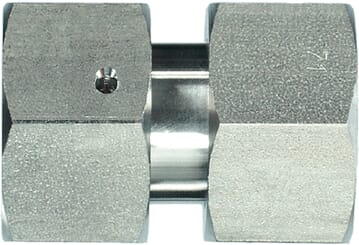

PH Hydraulik Straight Swivel 15L x 22L SS GVO15L22LSS
