£5.52
excl. VAT
£6.62 incl. VAT
£6.62
incl. VAT
£5.52 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Connection 1, thread diameter | M12 |
|---|---|
| Connection 1, thread pitch | 1.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Female |
| Connection 2, centre to end distance | 12 mm |
| Connection 2, thread diameter | M10 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 12.0 mm |
| Connection no 1 center to end distance | 15 mm |
| Connection no 1 diameter | 6 mm |
| Connection no 1 thread length | 8 mm |
| Connection no 1 wrench size | 14.0 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| Includes | Coupling, Without cutting ring and nut |
| Inside diameter | 4 mm |
| ISO standard | 228 |
| Max working pressure | 315 BAR |
| Product details | Bend 90°, Screw-in side: metric conical thread, Metric cutting ring fitting, Stainless steel: AISI 316 ti, Temperature range: -60°C to +400°C, When fitting stainless steel parts, grease the threads with ceramic, Teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for extreme temperatures, Food-safe, Durable |
| Series connection 1 | 6L |
| Shape | Elbow 90° |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 10 g |
| Dimensions | 30 × 22 × 12 mm |
| Dangerous goods | No |
You might also like
BPA000337907
PH Hydraulik Insert DN20-1.1/16-UNF SS PC2017SS
£25.93 excl.
£31.12 incl.
In stock
Expected to ship on Thursday 24 September
BPA000237835
PH Hydraulik Ball valve 16S SS BVM16SSS
£82.50 excl.
£99.00 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000358839
PH Hydraulik Ferrule SFWPTFE08SS
£9.77 excl.
£11.72 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000393303
PH Hydraulik Straight Adaptor M/F 1/4" BSP SS VNBW04SS
£8.32 excl.
£9.98 incl.
In stock
Expected to ship on Thursday 24 September
BPA000288113
PH Hydraulik Male Stud coupling 20S x 3/4" BSP WD SS GES20SR34WDSS
£13.35 excl.
£16.02 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000343828

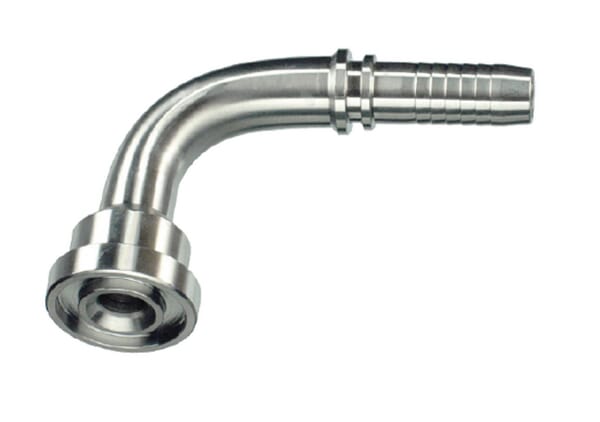

PH Hydraulik Insert with flange DN20-diameter 41.3m SS PFS201290SS
