£33.50
excl. VAT
£40.20 incl. VAT
£40.20
incl. VAT
£33.50 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Connections thread diameter | 1/4 Inch |
|---|---|
| Connections thread length | 12 mm |
| Connections thread type | BSP |
| Designed for medium | n/a |
| Includes | Check valve |

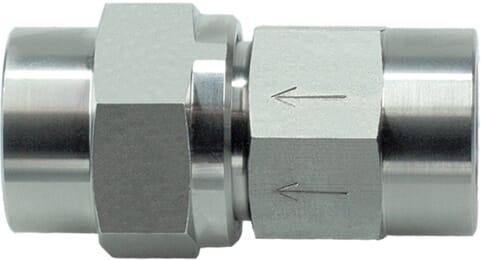

| Long description | Spring-loaded check valves, also known as spring check valves, are hydraulic valves designed to allow fluid to pass in one direction and block flow in the opposite direction. These pre-load valves are frequently used to secure installations and prevent fluid from flowing back into the system when pressure is reduced or when the pump is not in operation. |
| Material | Steel |
| Max flow rate | 12 l/min |
| Max working pressure | 350 BAR |
| Number of connections | 1 |
| Opening pressure | 0.5 BAR |
| Product details | BSP straight female thread, The check valves are available in different spring pressures and are factory adjusted, As a feeder, preload valve or blocking valve at high volume flow and high pressure, Spring loaded valve in stainless steel housing, Suitable for fitting between pipes, Flow direction is indicated by an arrow on the housing, Available opening pressures: 0.5 bar - 10 bar, Pressure range (bar): Max. 350 bar, depending on the construction size |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for extreme temperatures, Food-safe, Durable |
| Surface treatment | n/a |
| Total length | 54 mm |
| Type | Single |
| Unit | Each |
| Wrench/spanner size | 19.0 mm |
| Wrench/Spanner size 2 | 19.0 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 85 g |
| Dimensions | 65 × 20 × 20 mm |
| Dangerous goods | No |
You might also like
BPA000316216
PH Hydraulik Male adaptor 3/8" SS MM9006KSS
£12.38 excl.
£14.86 incl.
In stock
Expected to ship on Thursday 24 September
BPA000268116
PH Hydraulik T piece Adjustable 6L SS ETS6LSS
£12.94 excl.
£15.53 incl.
In stock
Expected to ship on Thursday 24 September
BPA000355161

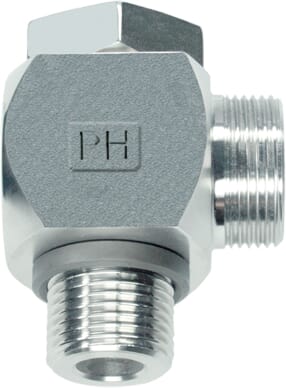

PH Hydraulik Banjo Elbow 6L x 1/8" BSP SS RSWS6LR18SS
£37.77 excl.
£45.32 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000344031
PH Hydraulik Insert DN13-M26x1.5-18L-90° SS PGLO132690SS
£52.46 excl.
£62.95 incl.
In stock
Expected to ship on Thursday 24 September
BPA000288139
PH Hydraulik Male Stud coupling 22L x 1" BSP WD SS GES22LR1WDSS
£19.82 excl.
£23.78 incl.
In stock
Expected to ship on Thursday 24 September
BPA000402302

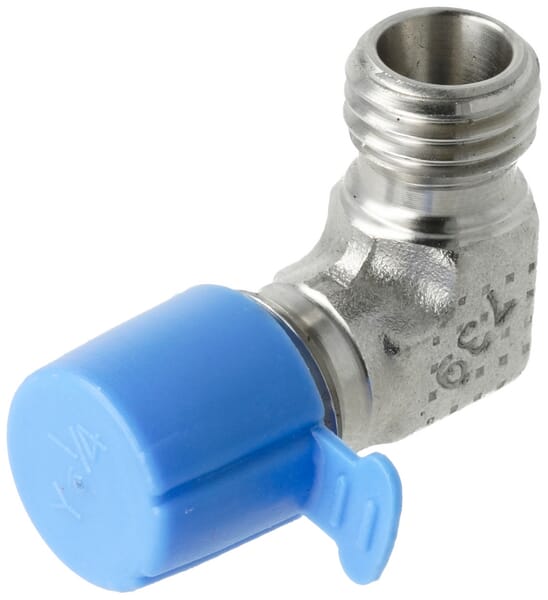

PH Hydraulik Male Stud Elbow 10L x 1/8" BSPT SS WES10LRK18SS
