£9.55
excl. VAT
£11.46 incl. VAT
£11.46
incl. VAT
£9.55 excl. VAT
In stock
Expected to ship on Thursday 24 September

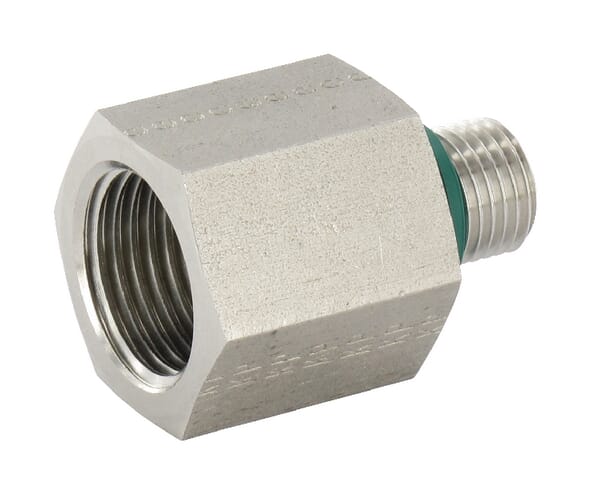

Product details
| Connection 1, thread diameter | 1/4 Inch |
|---|---|
| Connection 1, thread type | BSP |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 3/8 Inch |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 24.0 mm |
| DIN standard | 228 |
| Includes | Coupling with pre-assembled WD seal |
| Material | Stainless steel AISI 316L |
| Max working pressure | 630 BAR |
| Product details | Reducing fittings, BSP with straight thread, WD = FPM/Viton flat seal on screw-in side, Stainless steel: AISI 316 ti, Standard: DIN / ISO 228, Temperature range: -20°C to +200°C, When fitting stainless steel parts, grease the threads with ceramic, teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for high temperatures, Food-safe, Durable |
| Seal material | Nitrile rubber [NBR] |
| Shape | Straight |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 69 g |
| Dimensions | 37 × 27 × 27 mm |
| Dangerous goods | No |
