£12.30
excl. VAT
£14.76 incl. VAT
£14.76
incl. VAT
£12.30 excl. VAT
In stock
Expected to ship on Wednesday 23 September
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M22 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Swivel nut |
| Connection 1, type code | DKOS |
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 10 mm |
| Connection 2, thread diameter | M18 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection no 1 diameter | 14 mm |
| Includes | Coupling with pre-assembled union nut |
| Product details | Metric reducing coupling, Pre-assembled union nut with cone and FPM O-ring, Metric cutting ring fitting, Standard: W DIN 3861, Stainless steel: AISI 316 ti, Temperature range: -20°C to +200°C, When fitting stainless steel parts, grease the threads with ceramic, teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for high temperatures, Food-safe, Durable |
| Series connection 1 | 10S |
| Shape | Straight |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 101 g |
| Dimensions | 40 × 32 × 28 mm |
| Dangerous goods | No |
You might also like
BPA000344197

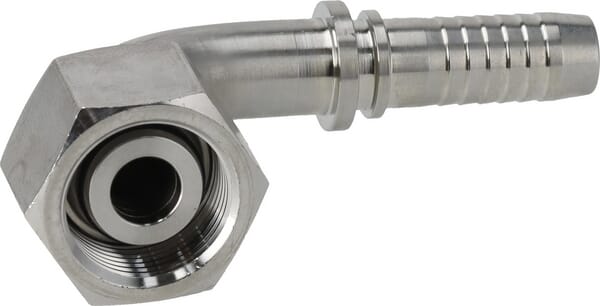

PH Hydraulik Insert DN16-M30x2,0-20S-90° SS PGSO163090SS
£46.34 excl.
£55.61 incl.
In stock
Expected to ship on Thursday 24 September
BPA000373547

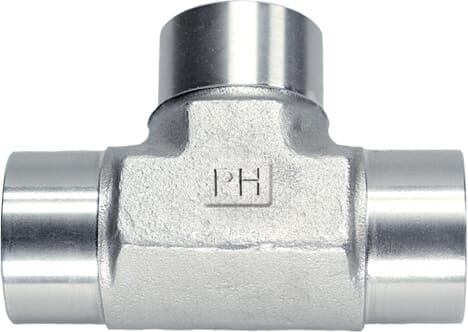

PH Hydraulik T Adaptor 1/4" BSP SS TBBB04SS
£24.55 excl.
£29.46 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000358660
PH Hydraulik Ferrule SFPTFE10SS
£6.55 excl.
£7.86 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000232551
PH Hydraulik Weld Stub coupling 14S SS ASS14SSS
£6.89 excl.
£8.27 incl.
In stock
Expected to ship on Thursday 24 September
BPA000336321

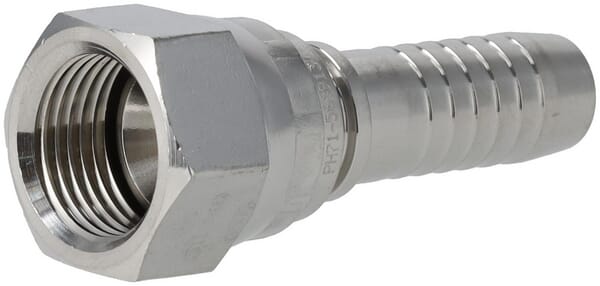

PH Hydraulik Insert DN13-7/8 UNF SS PA1314SS
£15.76 excl.
£18.91 incl.
In stock
Expected to ship on Thursday 24 September
BPA000393219

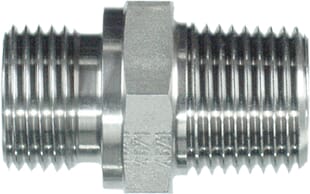

PH Hydraulik Straight Adaptor M 3/8" BSP x 1/4" NPT SS VNBN0604SS
