£16.16
excl. VAT
£19.39 incl. VAT
£19.39
incl. VAT
£16.16 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M26 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Swivel nut |
| Connection 1, type code | DKOL |
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 15 mm |
| Connection 2, thread diameter | M22 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection no 1 diameter | 18 mm |
| Includes | Coupling with pre-assembled union nut |
| Product details | Metric reducing coupling, Pre-assembled union nut with cone and FPM O-ring, Metric cutting ring fitting, Standard: W DIN 3861, Stainless steel: AISI 316 ti, Temperature range: -20°C to +200°C, When fitting stainless steel parts, grease the threads with ceramic, teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for high temperatures, Food-safe, Durable |
| Series connection 1 | 15L |
| Shape | Straight |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 125 g |
| Dimensions | 41 × 33 × 33 mm |
| Dangerous goods | No |
You might also like

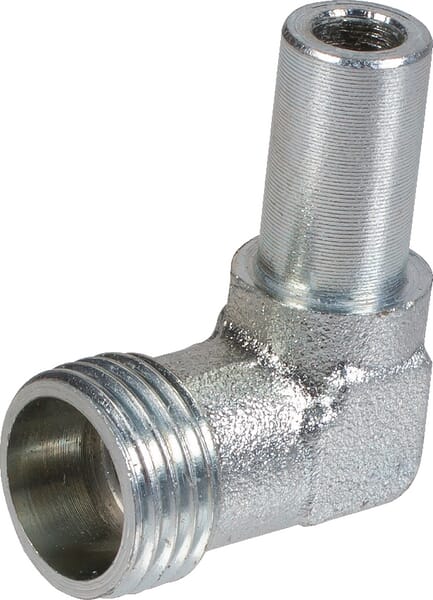

BPA000268283
PH Hydraulik Elbow adjustable 6S SS EWS6SSS
£9.63 excl.
£11.56 incl.
In stock
Expected to ship on Thursday 24 September
BPA000287135
PH Hydraulik Straight Coupling 10S SS GS10SSS
£3.64 excl.
£4.37 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000287993
PH Hydraulik Male Stud coupling 15L x M22 WD SS GES15LM22WDSS
£11.13 excl.
£13.35 incl.
In stock
Expected to ship on Thursday 24 September
BPA000341394
PH Hydraulik Cutting Ring 8L SS PR08LSS
£0.86 excl.
£1.03 incl.
In stock
Expected to ship on Thursday 24 September
BPA000287221
PH Hydraulik Straight Coupling 42L x 35L SS GS4235LSS
£62.81 excl.
£75.37 incl.
Backorder available
Usually ships within 3–8 weeks

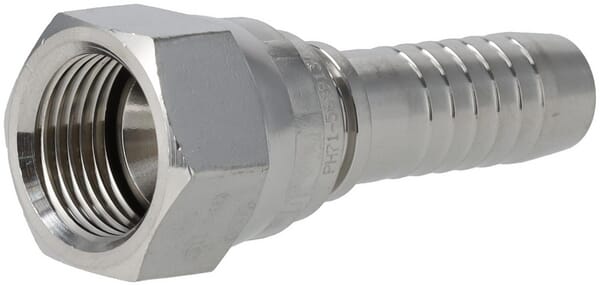

BPA000336326
