£21.89
excl. VAT
£26.27 incl. VAT
£26.27
incl. VAT
£21.89 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M30 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Swivel nut |
| Connection 1, type code | DKOL |
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 10 mm |
| Connection 2, thread diameter | M16 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection no 1 diameter | 22 mm |
| Includes | Coupling with pre-assembled union nut |
| Product details | Metric reducing coupling, Pre-assembled union nut with cone and FPM O-ring, Metric cutting ring fitting, Standard: W DIN 3861, Stainless steel: AISI 316 ti, Temperature range: -20°C to +200°C, When fitting stainless steel parts, grease the threads with ceramic, teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for high temperatures, Food-safe, Durable |
| Series connection 1 | 10L |
| Shape | Straight |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 170 g |
| Dimensions | 45 × 43 × 38 mm |
| Dangerous goods | No |
You might also like
BPA000344117

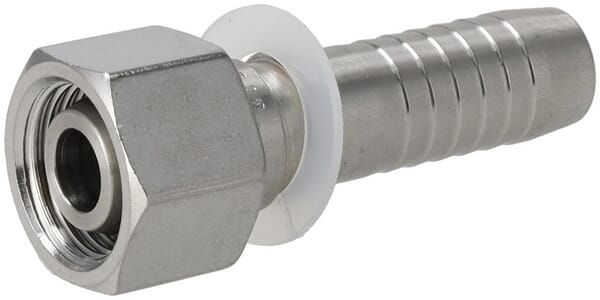

PH Hydraulik Insert DN06-M18x1.5-12L SS PGLO618SS
£16.54 excl.
£19.85 incl.
In stock
Expected to ship on Thursday 24 September
BPA000341013

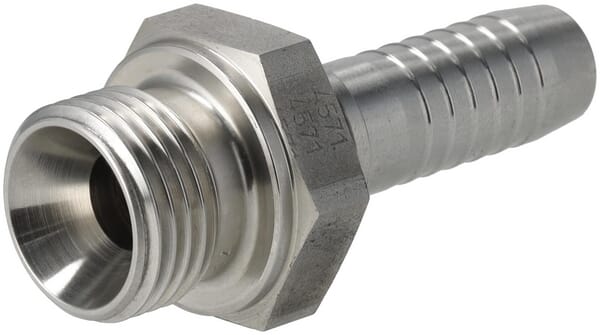

PH Hydraulik Insert DN08-1/4-BSP SS PN84SS
£18.54 excl.
£22.25 incl.
In stock
Expected to ship on Thursday 24 September
BPA000367225

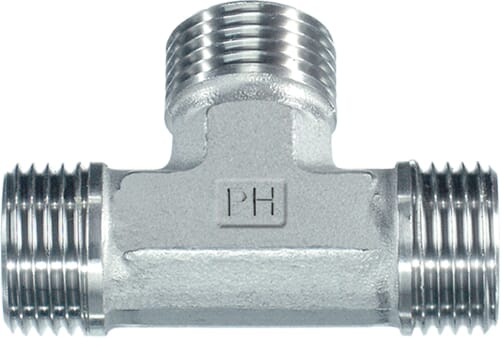

PH Hydraulik T- Adaptor 3/8" SS T06MSS
£17.44 excl.
£20.93 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000232548
PH Hydraulik Weld Stub coupling 12L SS ASS12LSS
£3.60 excl.
£4.32 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000344076
PH Hydraulik Insert DN32-M45x2.0-35L SS PGLO3245SS
£103.77 excl.
£124.52 incl.
In stock
Expected to ship on Thursday 24 September
BPA000288019

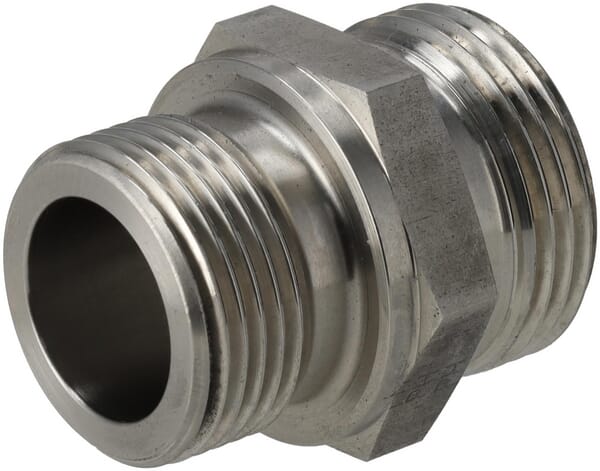

PH Hydraulik Male Stud coupling 15L x 3/8" BSP SS GES15LR38SS
